mini 2 port fast 10/100mbps ethernet network lan hub switch board two layer pcb 2 rj45 1*8pin head port switch module

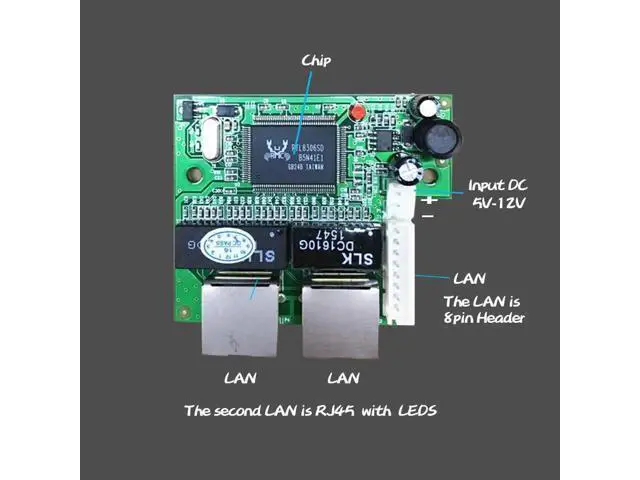

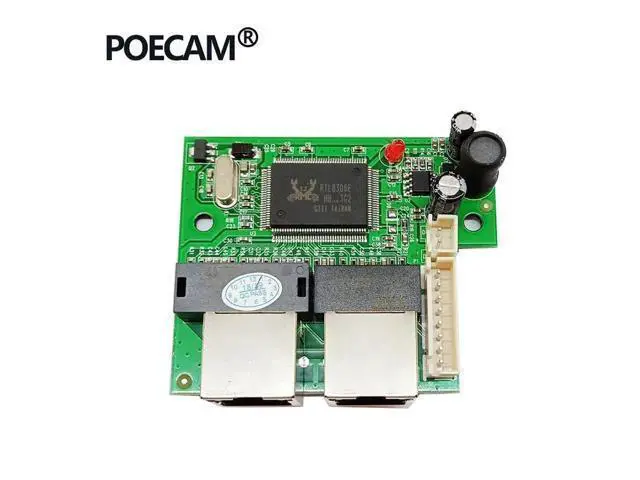

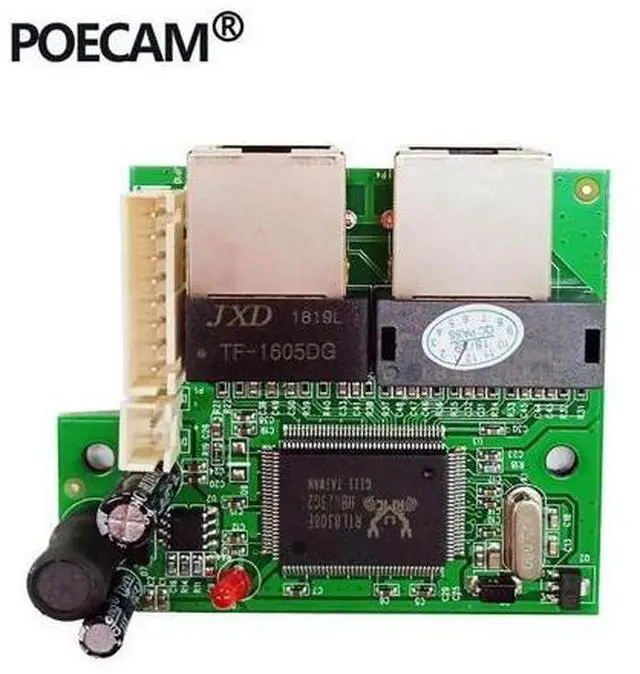

mini fast 10/100mbps 2 port ethernet network lan hub switch board two layer pcb 2 rj45 1*8pin head port Definition PL-ES2105DR-H2 mini 2 Port Ethernet network Switch board Simple Features 1 2 RJ45+1*8 pin header port 2 10/100mbps 3

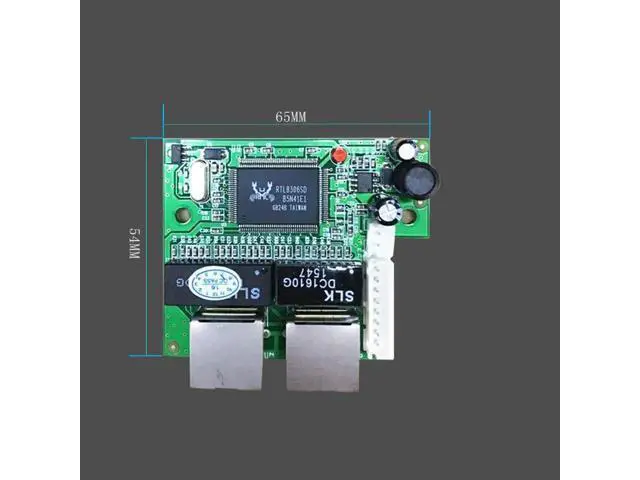

PCBA size: 65x54x15mm 4 Plug n play 5 DC voltage input 5-12v Description PL-ES2105DR-H2 is a high-performance 2 ports 10/100Mbps Ethernet switch board. It provides a simple network connection to your workgroup or a server, Easy plug and play, flexible non- blocking architecture, users can be exempted from the restrictions of bandwidth and media networks. Applications It provide 3 port 100Mpbs Ports, Use machine built-in or embedded machine device internal expansion ports, 3 port switch is very good heat dissipation performance the Mini's Exquisite exterior design design, Domestic and foreign customers are very favorite Features Complies with IEEE 802.3 and IEEE 802.3 u standards Output interface for 2 have the yellow and green lights of RJ45 and a 8pin header port 3 10/100Mbps Auto-Negotiation ports supporting Auto-MDI/MDIX Support IEEE 802.3 x flow control for full duplex mode and backpressure for half duplex mode on all port Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput Support MAC address auto-learning and auto-aging LED indicators for monitoring power, /activity

Specifications

Standards
