3 in 1 mSATA M.2 PCIE NVMe SSD to PCI-E 3.0 4X SATA 3.0 Adapter Card for M2 NVMe AHCI SATA mSATA Solid State Disk Converter

3 in 1 mSATA M. 2 SSD to PCI-E 3.0 4X SATA 3.0 Adapter Card for NGFF M. 2 NVMe AHCI SATA mSATA Solid State Disk Converter for

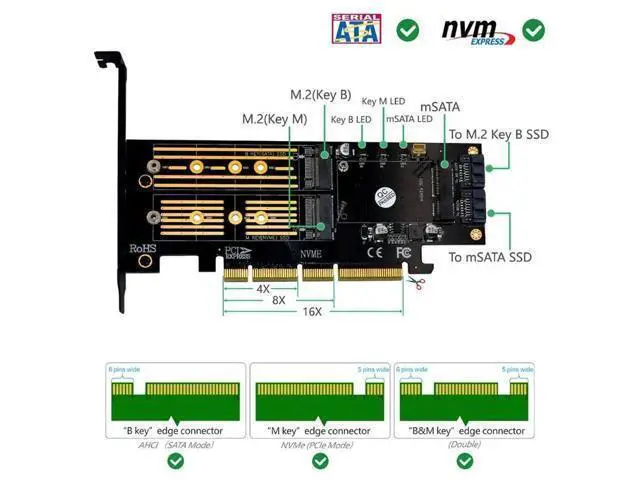

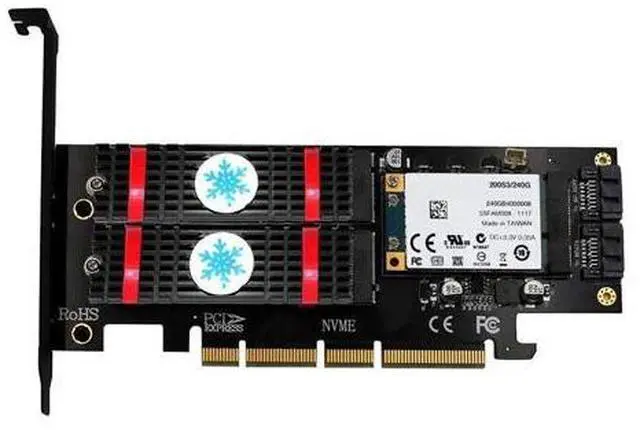

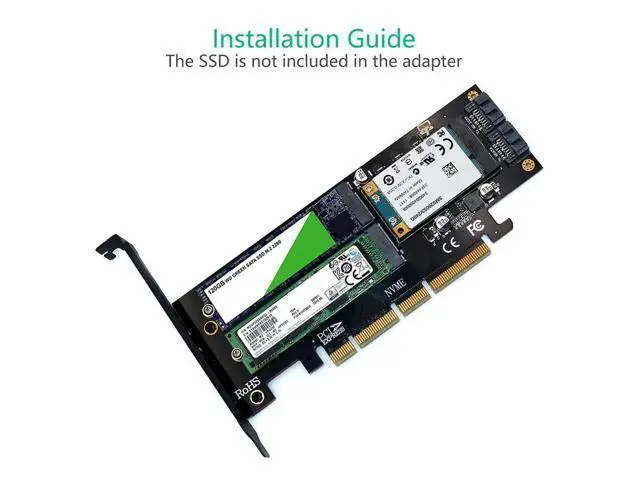

Desktop Computers Descriptions: 1. Supports PCIE M. 2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth, apply to 2280/2260/2242/2230mm 2. Supports SATA-based M. 2 SSD (Key-B / B + M), SATA 6 Gbps bandwidth, apply to 2280/2260/2242/2230mm 3. Supports mSATA, 30x50mm, SATA 6 Gbps bandwidth 4. 3-channel SSD read/write LED indicator 6. Supports PCIe 2.0, 3.0 and PCIe 4.0 motherboard 7. Supports 3 SSDs (M. 2 PCIE-based SSDs, M. 2 SATA-based SSDs and mSATA SSD) to work simultaneously. 8. M. 2 NVME SSD to PCIE 3.0 x4 (32Gbps), no need to use SATA cable to connect to the PC. 9. When working with SATA M. 2 to SATA III (6Gbps) and mSATA to SATA III (6Gbps), a SATA cable is required to connect the motherboard. (The product already contains 2 SATA cables) 10. This adapter is compatible for PCI-E 4X, 8X, 16X, but the speed only PCI-E 4X. 11.
Product Size: 183 X 120 X 20mm/ 7.2 X 4.72 X 0.79"

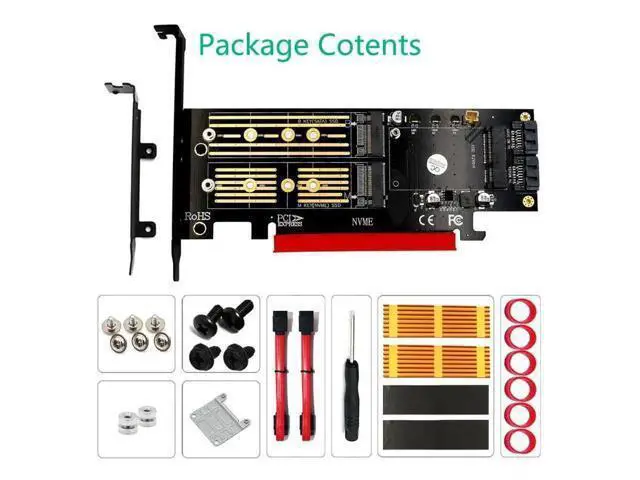

Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3mm measuring deviation due to manual measurement. 1 X SSD Adapter Card 1 X I/O Bracket (1 X High/Low Profile) 1 X MiniCard Extender Bracket 2 X Aluminum Heatsinks 4 X Heat Conducting Silica Gel Pads (2pcs Thickness+2pcs Thin) optional 4 X Silica Gel Rings 2 X SATA Cables 1 X Screwdriver 1 X Screw Kit
