8Port Fast Network Ethernet Switch HUB Module RJ45 90 or 180 degree UTP 2 Type LED Board PCBA Mini Size Length 140MM Width 41MM

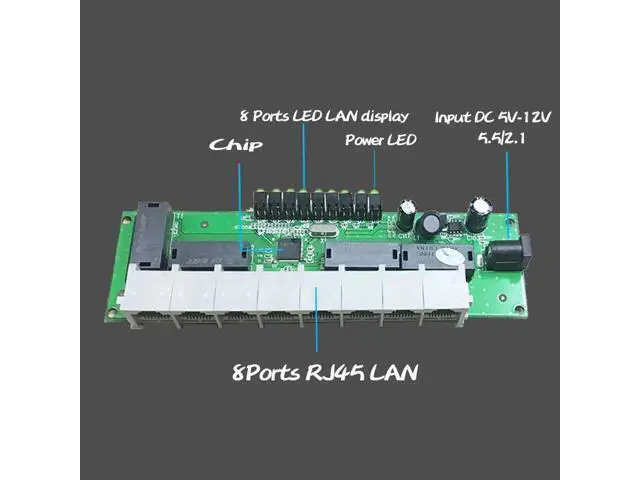

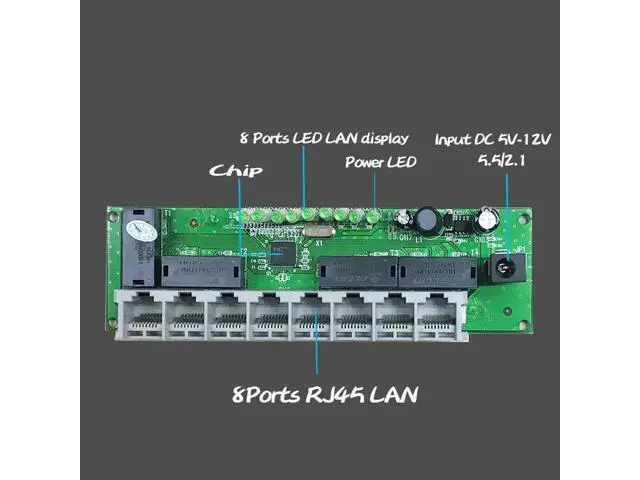

Description PL-ES2108DI-F2 is a high-performance 8 ports 10/100Mbps mini ethernet switch board. It provides a simple network connection to your workgroup or a server. Easy plug and play, flexible non-blocking architecture, users can be exempted from the restrictions of bandwidth and media networks. Application this is 8 port switch module for company and factory share PC printer, at the some times, application network cabling, smart cabling boxes, and machine equipment Features Complies with IEEE 802.3 and IEEE 802.3 u standards 8 port10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Support IEEE 802.3 x flow control for full duplex mode and backpressure for half duplex mode on all port Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput Support MAC address auto-learning and auto-aging 2k Mac address table list LED indicators for monitoring power, /activity Standards cabling size design, PCBA

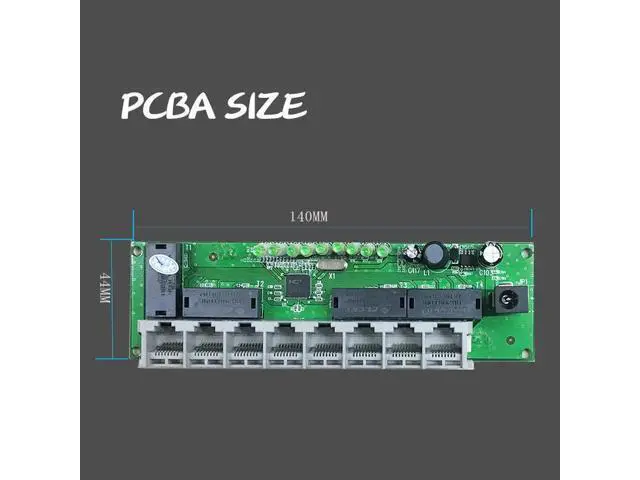

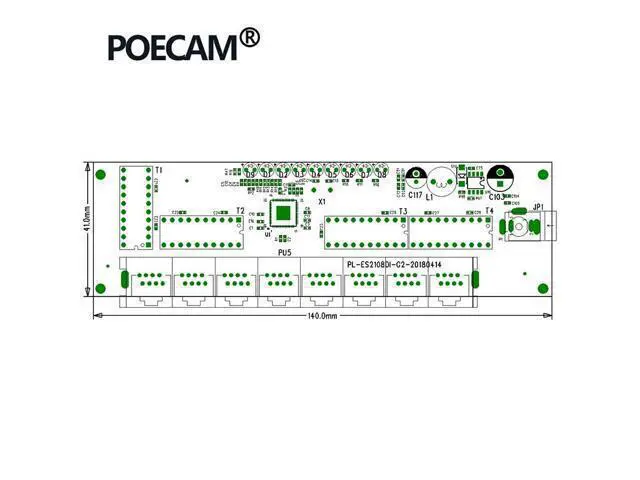

size: 140*45*18mm Power input DC Range 5-12v OEM support for bulk order specification Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3 u 100Base-TX Fast Ethernet IEEE 802.3 x flow control protocol CSMA/CD Transmission Rate Ethernet 10Mbps (half duplex), 20Mbps
(full duplex); 10BASE-T: 14, 880pps/port Fast Ethernet 100Mbps (half duplex), 200Mbps
(full duplex); 100BASE-TX: 148800pps/port Topology Star
Network Medium 10Base-T: Cat 3 or above Cat. 3 UTP (Less than 100m) 5 UTP (Less than100m) Number of Ports
