Ethernet Switch 8 Port Module PCBA Installtion Metal Case Machine Equipment Device Cabling boxes Super Category 5 network cable

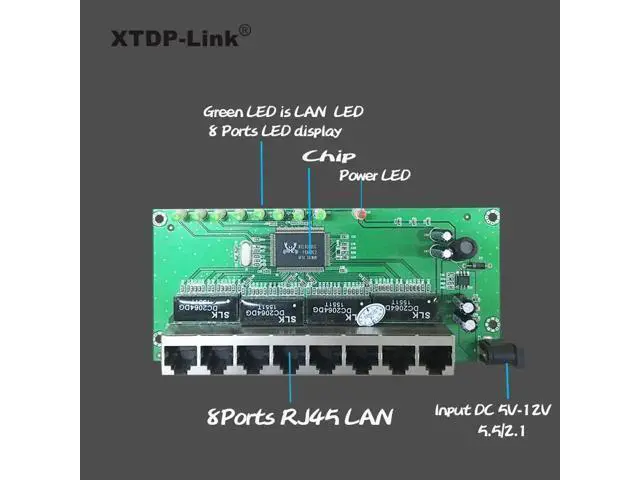

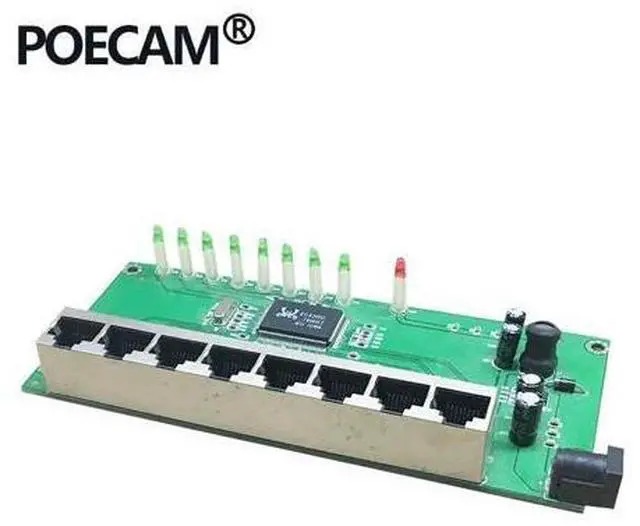

Description PL-ES2108DR-C1/C2 is a high-performance 8 ports 10/100Mbps Simple Feature 8port 10/100Mbps RJ45 UTP port 141*63*18mm size plug n play Indicators for power, /actsa oem 8 port mini ethernet switch 8 RJ45 switch hub PCBA board module Simple feature 8 10/100mbps RJ45 141*54*18mm size mini size, plug n play Indicators for power, /act The 8 port 10/100Mbps Ethernet switch board each port to support Auto-Negotiation function. The 8 port ethernet switch board provides half-duplex flow control and full-duplex mode backpressure mode on all ports. Features Complies with IEEE 802.3 and IEEE 802.3 u standards 8 port10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Support IEEE 802.3 x flow control for full duplex mode and backpressure for half duplex mode on all port Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput Support MAC address auto-learning and auto-aging 2k Mac address table list LED indicators for monitoring power, /activity Standards cabling size design, PCBA

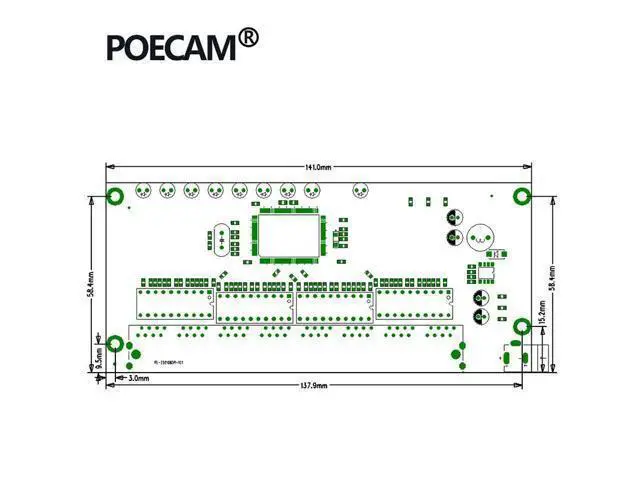

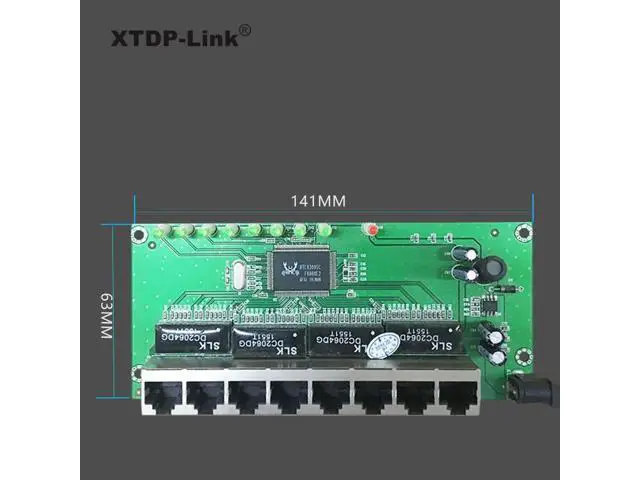

size: 141x63x18mm Power input DC range 5-12v OEM support for bulk order Applications The mini 8 port ethernet switch board is widely used for network cabling and cabling distance extend of the network cabling boxes, multimedia cabling boxes etc.

Specifications

Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3 u 100Base-TX Fast Ethernet IEEE 802.3 x flow control protocol CSMA/CD Transmission Rate Ethernet 10Mbps (half duplex), 20Mbps
(full duplex); 10BASE-T: 14, 880pps/port Topology Star
