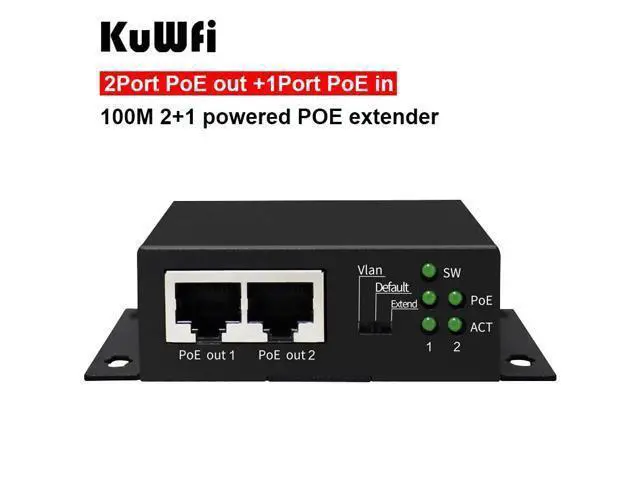

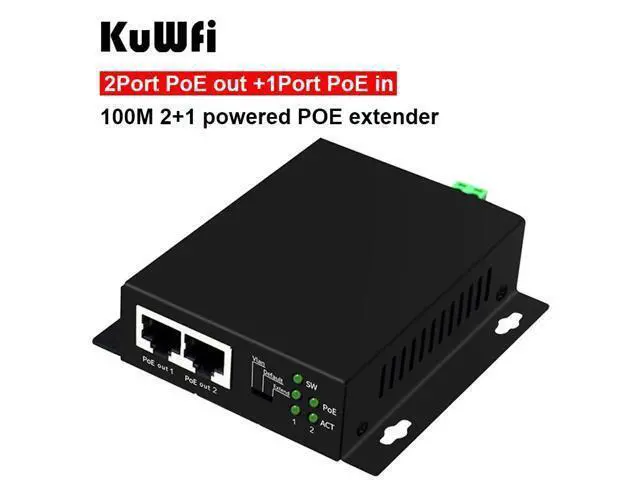

10/100Mbps 3 Ports Industrial Ethernet Network POE Switch Media Converter with Vlan Default Extend DIP Mode

DescriptionThe HR500-ATR-21 device is a kind of industrial PoE-Powered 3-Ports Switch with PoE Passthrough, POE PD port max support 30W, industrial Pheonix terminal (48~55V input); POE Port support IEEE 802.3 af( 15.4W ) and IEEE 802.3 at (30W), the longest transmision is 250 meters. It supports CE, FCC ROHS standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input (DC48-55V), -40 to 75°C working temperature. The converters support IEEE 802.3 /IEEE 802.3 u/IEEE 802.3 x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.

Target industries1. HD monitor transmission and power supply 2. Wireless AP layout transmission and power supply 3. Network telephone transmission, intelligent house and home system 4. Intelligent transportation supervisory system (ITS) 5. High-speed Way supervisory/Tele-Communication System 6. Security protection system, TV medical treatment 7. Long-distance Muti-media Schooling, Campus monitoring 8. Long-distance broadcast television transmission system 9. High-building Security Protection, Military Tele-Com project
Order InformationProduct Model: HR500-ATR-21
Product Description: 3-port 10/100M Industrial PD PoE Switch /Media Converter, with 1 10/100Base-TX POE PD port and 2 10/100Base-TX PSE POE port, support PoE power supply&POE-in function, compatible with both IEEE 802.3 af/IEEE 802.3 at standard. Rail-type installation.
Note: Power adapter is not included in this package. Please order it separately. Package List Industrial PoE media Converter (plus terminal block) User Guide Warranty Card
