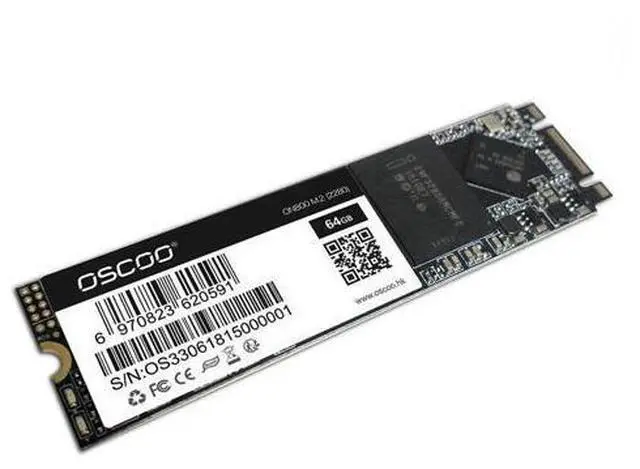

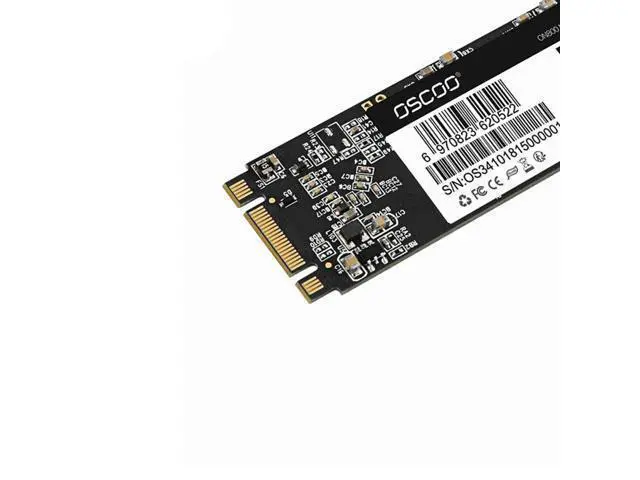

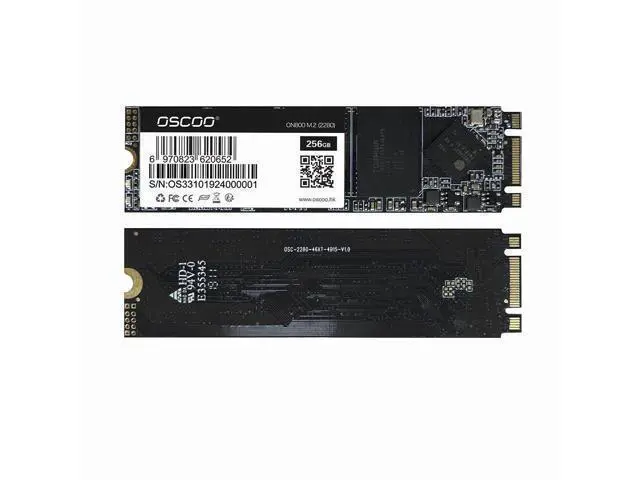

M.2 SATA Solid State Drive Internal 2280 NGFF SSD Hard Disk for Laptop

Specifications

:
1.
Brand:
2.
Model: ON800 (2280)
3.
Form factor: M. 2 2280
4.
Protocol: SATA III
5.
Size: 80mmx22mmx 3.5 mm 6.: 16GB/ 32GB/ 64GB/ 128GB/ 256GB/ 512GB/ 1TB
7.
Seq read/ write (up to): 550/ 500MB/s
8.
Latency: 0.07 ms
9.
Input voltage: 3.3V +- 5%
10.
Operating temperature: 0 to +70
11.
Storage temperature: -20 to +75
12.
Warranty: 3
Years Features: 1. ON800 M. 2 2280 NGFF SSD for laptop.
2. Safe and reliable, faster boot, faster loading.
3. Low power consumption, temperature control protection.
4. Widely compatible with PC, All in one PC, laptop, Server, PoS machine, etc.
5. Perfect storage performance for your PCs operation.

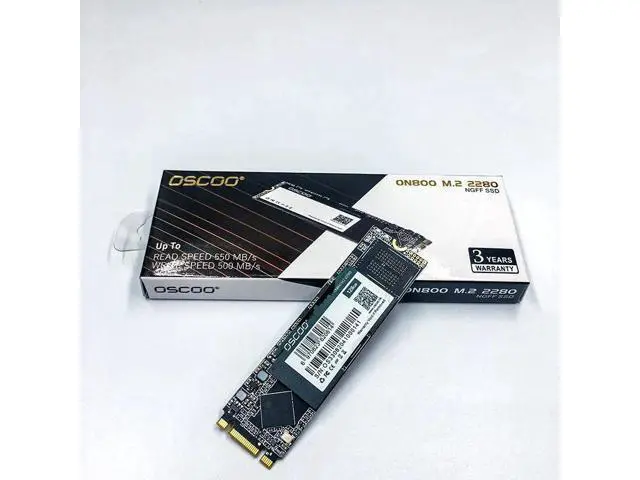

Package Included: 1 X ON800 M. 2 2280 NGFF SSD for laptop
FAQ: Q1. Why the displayed from PC is smaller than original?
A1: Actual usable space maybe less than the total storage listed due to decimal measurement used to represent usable of the SSD.
Actual calculation: Total storage x 0.93 Factory default setting 1GB=1000MB=1000000KB=1000000000B
Computer system setting: 1GB=1024MB=1048576KB=1073741824B
Example: 360GB
SSD Factory: 360x1000x1000x1000=360000000000B Transfer to
PC display actual: 360000000000B/1024/1024/1024=335G
Fast caculation: 360Gx 0.93 =335G
Q2: How to format SSD and achieve 4K alignment?
A2: Win 7 or higher version OS is recommanded due to "Disk Management". Formatting function is built in the systems. We recommend NTDS Disk partition format and DISKGENIUS tool to make drive partition.
