Tools NF-488 Digital Ethernet CAT5 CAT6 LAN Cable PoE Switch Tester Detector LCD Display Cable Tester

Tools NF-488 Digital Ethernet CAT5 CAT6 LAN Cable PoE Switch Tester Detector LCD Display
Cable Tester

Specifications

: Test the information of the standard/non-standard PoE device, such as voltage, polarity, mid-span or end-span. Test of real-time power consumed by PD devices in PoE power supply systems. Test the open, short, cross status in the cable. Test the power consumed by DC appliances. The loop test function of the switch.
Item Name: Cable
Tester Material: ABS

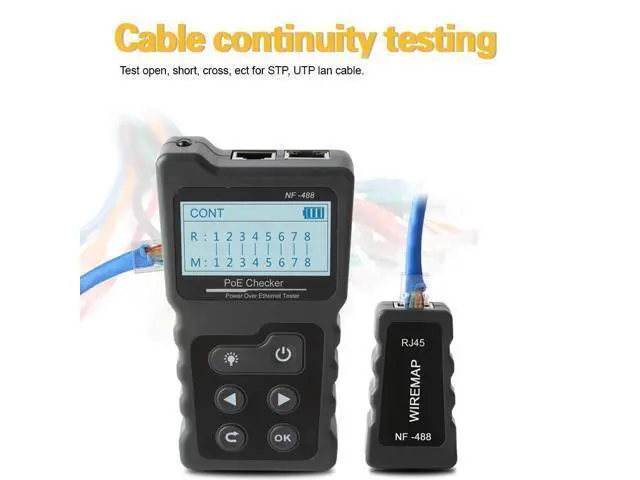

Continuity Function: Cable
Type: STP/UTP
Maximum Testing Range: 600m
Wire Mapping: Emitter + Remote, Emitter +

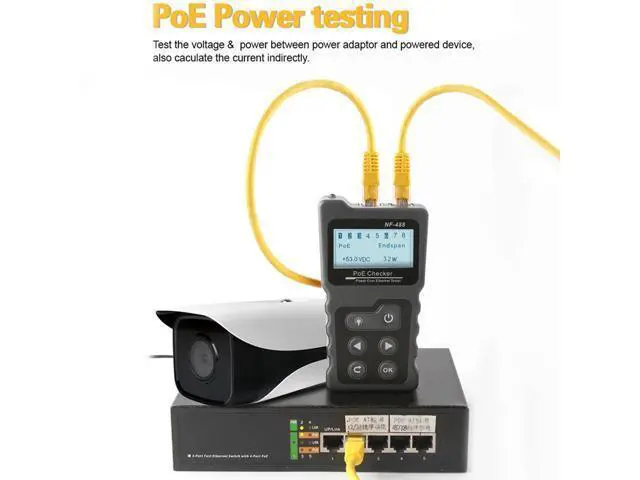

Switch/Routor POE Function: Test
Range: DC 5-60V PoE Switch
Standard Identify: 802.3 af/at (Standard/Non-standard) Test
Range Power: 0-18W

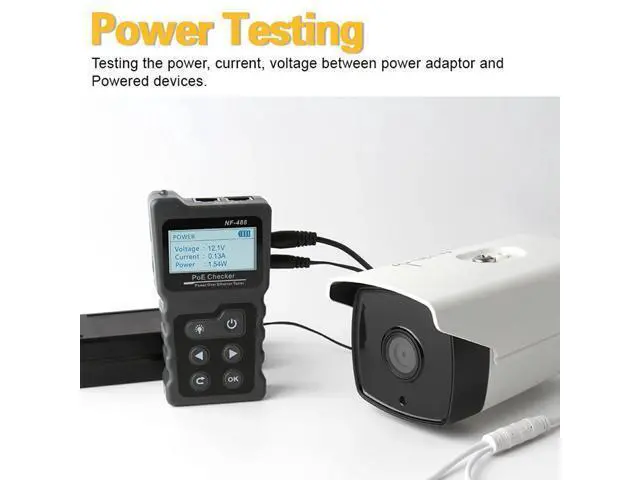

Power Function: Voltage
Test Range: DC 0-60V
Current Test Range: 0-3A
Power Test Range: 0-180W
Display: LCD Screen, with
Backlight Input Voltage Protection: DC 48V, 5mA
Maximum Working Current:

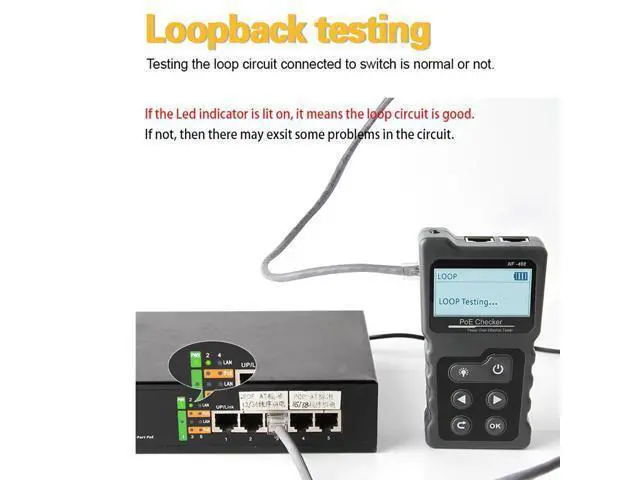

Loopback: Compatible with 10m/100m/1000m Switch
Power Supply: 3 x 1.5V AAA Battery (Not Included)
Remote Specification:
Ports: RJ45
Function: Wire Mapping for
Cable Input Voltage Protection: DC 48V, 5mA
Features: Portable, Fine Workmanship,
LCD Display Screen Size: 128mm x 64mm/ 5.04" x 2.52" (Approx. )
Total Size: 14cm x 4cm x 2cm/ 5.51" x 1.57" x 0.79" (Approx. )
Notes: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. 1 x Emitter
