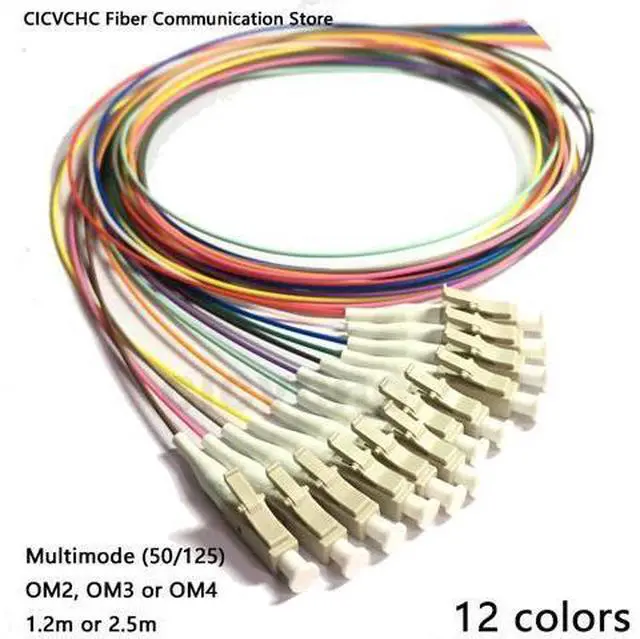

12 Colors LC/UPC-Multimode(50/125)-OM2, OM3, OM4-0.9mm Cable-1.2m, 2.5m / Optical Fiber Pigtail

12 Colors LC/UPC-Multimode(50/125)-OM2, OM3, OM4- 0.9 mm Cable- 1.2 m, 2.5 m / Optical Fiber Pigtail 1. Description Fiber optic patch cord and pigtail can connect with different types of connectors such as ST, FC, SC, LC or MU. With the high-quality ceramic ferrule, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
Support customize: All product can be designed and produced according to what your need. 2. Ordering Information Color Select Item Shipping Content Total Price (including shipping) White OM2- 1.2 m 12 colors, fiber type is OM2, the length is 1.2 m USD 11.5 Blue OM3- 1.2 m 12 colors, fiber type is OM3, the length is 1.2 m USD 13.5 Black OM4- 1.2 m 12 colors, fiber type is OM4, the length is 1.2 m USD 18 Grey OM2- 2.5 m 12 colors, fiber type is OM2, the length is 2.5 m USD 14.5 Pink OM3- 2.5 m 12 colors, fiber type is OM3, the length is 2.5 m USD 16.5 Other OM4- 2.5 m 12 colors, fiber type is OM4, the length is 2.5 m USD 21 3 Feature Low insertion loss and high back reflection loss Good exchangeability Good Durability High temperature stability. Superior Quality Standard PC/UPC/APC Polishing Standard: IEC Grade B 4. Technical

Specifications

4.1 Optical Performance Polishing UPC Testing Wavelength 850nm & 1300nm Insertion Loss 0.25 dB Return Loss 35dB 4.2 Endface Geometry Performance Item UPC
