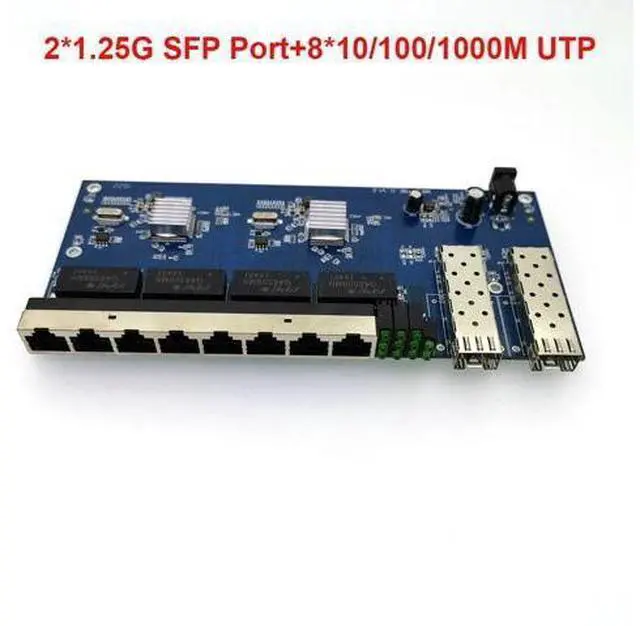

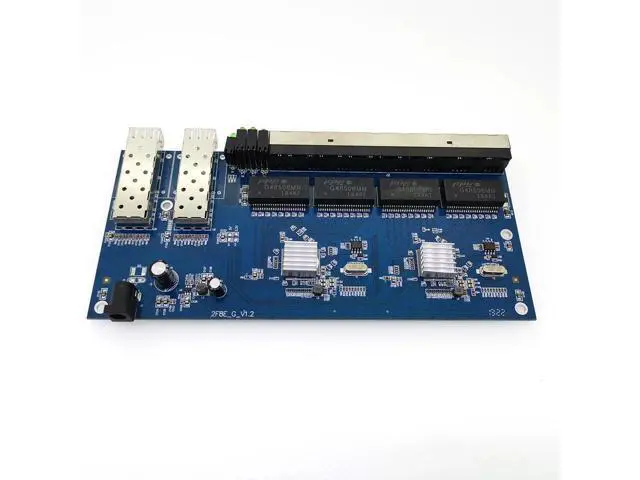

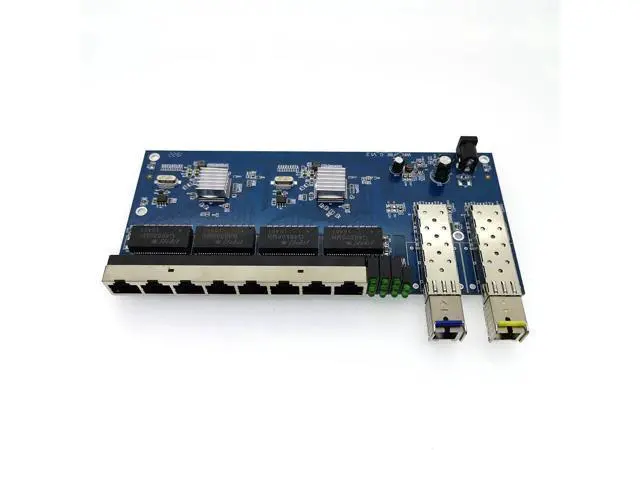

2SFP8E 10/100/1000M Gigabit Ethernet switch Ethernet Fiber Optical 8*RJ45 2*SFP 1.25G fiber Port PCBA Board

Please note: 1. This value not include power adapter 2. this board support 5-12V, recommend use 5V2A Gigabit Ethernet Switch 2SFP8E Series Fiber Switch PCBA Board The Gigabit 2G8E is an Ethernet Fiber Switch which is specially designed for network monitoring. It has 810/100/1000Mbps Ethernet ports and 2*SFP fiber ports. It adopts REALTEK 8367S chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Main Features: 1. Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX 2. SFP 2* 1.25G bps full-duplex fiber ports and 8*10/100/1000M Ethernet ports with auto-negotiation function 3. Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function 4. Each port has the complete LED Indicator light 5. Support single mode single fiber, single mode dual fiber, multi-mode dual fiber and SFP slot 6. Support IEEE 802.1 d Spanning Tree 7. Support high performance QoS function on each port 8. Support 5-12V voltage input 9. Support IEEE 802.3 x flow control and back pressure control 10. Require no configuration and will instantly operate as soon as you power it up 11. Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications

Standards IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX/FX IEEE 802.3 z 1000Base-SX/LX IEEE 802.3 x Flow control IEEE 802.1 p QoS IEEE 802.1 d Spanning Tree
