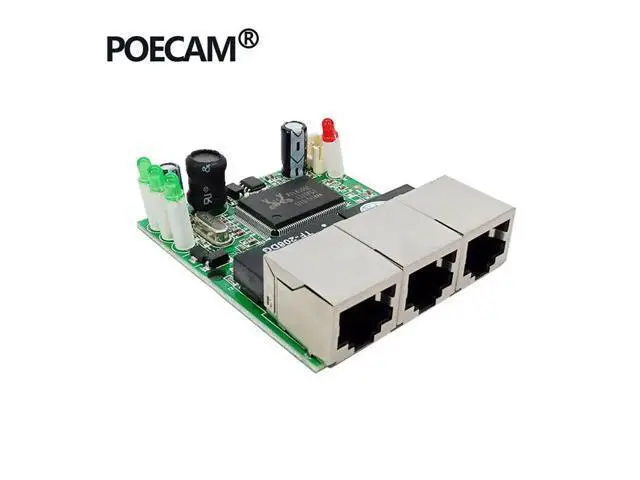

Realtek RTL8306E chipset 90/180 Degree RJ45 3 port Mini Ethernet Switch Board factory accept OEM ODM network switches pcb

Stock Realtek RTL8306E chipset 90/180 degree RJ45 3-port mini ethernet switch pcb board What is it Does? This is a 3 Port Network Switch, Ethernet Switch, Desktop Switch, SOHO Switch, It provides 5 10/100Mbps Auto-negotiation ports, Which you can use to establish a LAN network, or extend to the up network, It provide 3 port 100Mpbs Ports, Use machine built-in or embedded machine device internal expansion ports, 3 port switch is very good heat dissipation performance Main Features 3 * 10/100Mbps auto-negotiation ports Auto MDI / MDIX simplifies networking and maintenance Full wire speed forwarding ensures a smooth network experience Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked Adopts store-and-forward mechanism and provides 2K MAC address table Use machine built-in or embedded machine device internal expansion ports Stable product and very good heat dissipation performance Wide Voltage
DC Input 5V-12V Chip: RTL8306E Description PL-ES2105DR-C2 is a high-performance 3ports RJ45 90 Degree 10/100Mbps Ethernet switch board. It provides a simple network connection to your workgroup or a server, Easy plug and play, flexible non-blocking architecture, users can be exempted from the restrictions of bandwidth and media networks. Applications Use machine built-in or embedded machine device internal expansion ports Stable product and very good heat dissipation performance

Specifications

Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3 u 100Base-TX Fast Ethernet IEEE 802.3 x flow control protocol CSMA/CD Transmission Rate Star
