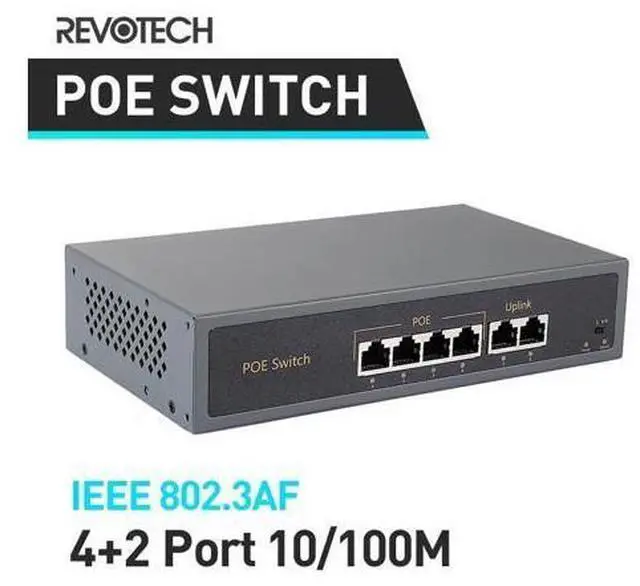

New 4+2 4-Port 10/100M POE Switch 60W 48V Power over Ethernet IEEE802.3af For IP Camera System Network Switch

New 4+2 4-Port 10/100M POE Switch 60W 48V Power over Ethernet IEEE 802.3 af For IP Camera System Network Switch The POE Switch POE8804P provides power and data from a single point, using Power over Ethernet (POE) over a single Cat-5 cable. The five Fast Ethernet ports can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3 af power. Advanced auto-sensing algorithm gives power only to IEEE 802.3 af end devices, so no need to worry about damaging proprietary PoE or non-POE equipment. In addition, it discontinues the power when PoE devices are disconnected.

Support VLAN function, if you click it (White button) on, then the transit distance can up to 200 meter, but the transit speed will change into 10 Mbps. if you click it off, transit distance about 100 meter, and the speed is 10/100 Mbps.

Specifications

Model: POE-8804P
Network Ports: 6 x 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Power Pin Assignment: Power over pairs 1/2(+) and 3/6 (-)
POE Distance: 100m
Transmission Method: Store-And-Forward
Network Media:
10BASE-T: UTP category 3, 4, 5
cable (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
Network Protocol and Standards: IEEE 802.3 i 10BASET; IEEE 802.3 u 100BASETX IEEE 802.3 x Flow Control; IEEE 802.1 at DTE Power via MDI IEEE 802.3 af
Status LED:
System: Power, POE Maximum Power;
Per Port: Link, Activity, Speed, POE Active, POE Fault
Performance

Specifications

Bandwidth: 1.6G bps
Network latency: Less than 20 s for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
Buffer memory: 96 KB embedded memory per unit
