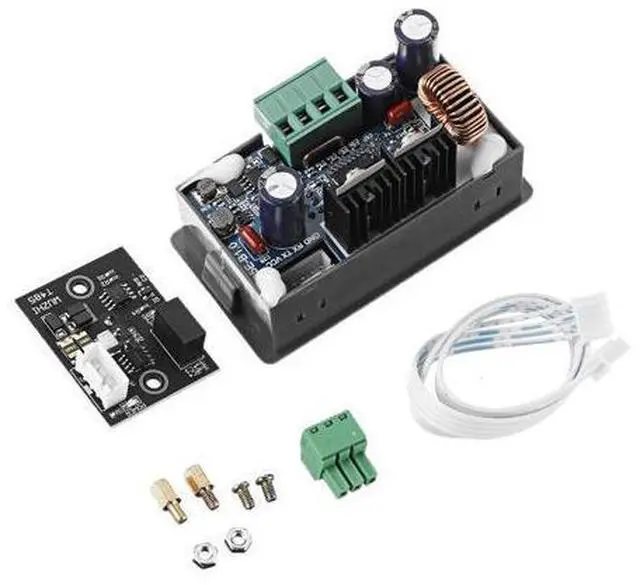

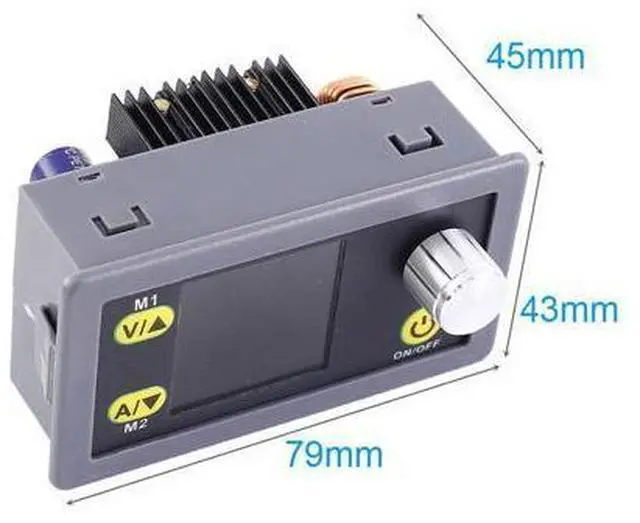

WZ5005E Step Down Power Supply Module Buck Voltage Converter DC-DC 8A 250W 5A Programmable with 1.44in TFT LCD Display

A: Normol
Version B: USB
Version C: RS485
version >>>Manual: Click here to open <<< Software download here 1.Description: WZ-5005E is a multi-function Step Down Power Supply Module.Its main function is to output voltage as a constant voltage constant current source. It can be used to test the discharge time and discharge capacitance of the input voltage. It uses a 1.44-inch high-definition LCD liquid crystal display and the content is displayed on multiple screens. Output voltage 0-50.00V adjustable and the output current is adjustable from 0-5.000A. This version supports read data and set parameter on PC.Users can realize remote setting and reading data. 2.Features: 1>. Constant Voltage Constant Current output 2>. 1.44 in High-definition LCD screen display 3>. 250W High power output 4>. 50V high voltage output 5>. 5A maximum current output 6>. Multiple display pages 7>. Support over-voltage protection 8>. Support over-current protection 9>. Support over power protection 10>. Support under voltage protection 11>. Support input reverse protection 12>. Support 10 sets of data storage function 13>. Parameter super high display resolution 14>. Support over time protection 15>. Support over capacity protection 16>. Support over energy protection 17>. Multiple parameters are displayed simultaneously 18>.

Support power-down memory function 19>. Backlight brightness can be set 20>. Exquisite shell 21>. Support PC set and read parameters 3.
Parameters: 1>.
Product name: WZ-5005E Step Down Power Supply Module 2>.
Model: WZ-5005E 3>.
Input voltage: DC 6.0V ~ 55.0V 4>.
Input voltage resolution: 0.01V 5>.
Output voltage: DC 0.0V - 50.0V 6>.
Output voltage resolution: 0.01V
