$199.98
Ships from China.
Meet Your Seller

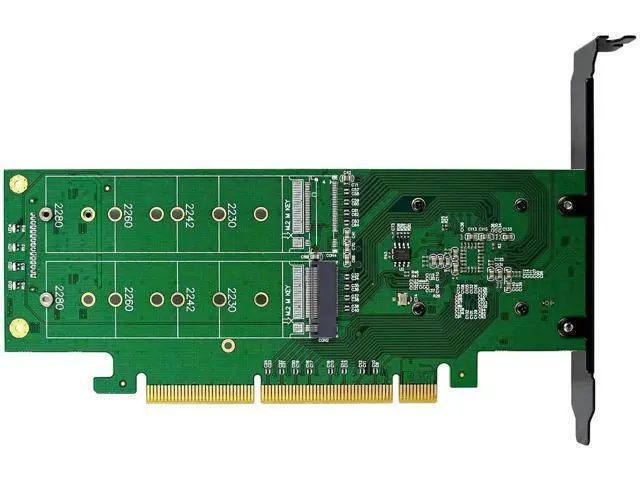

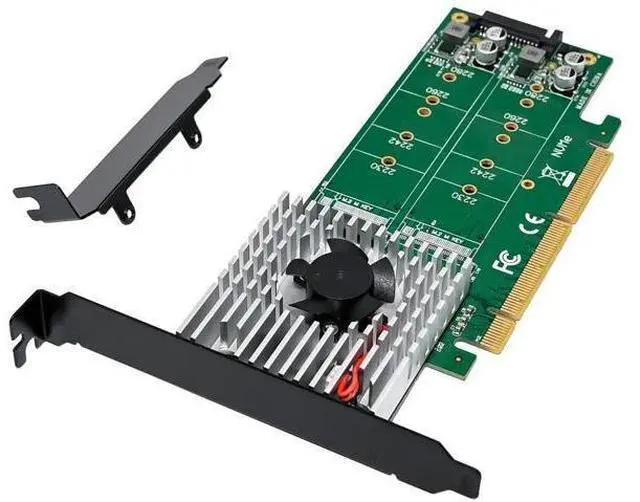

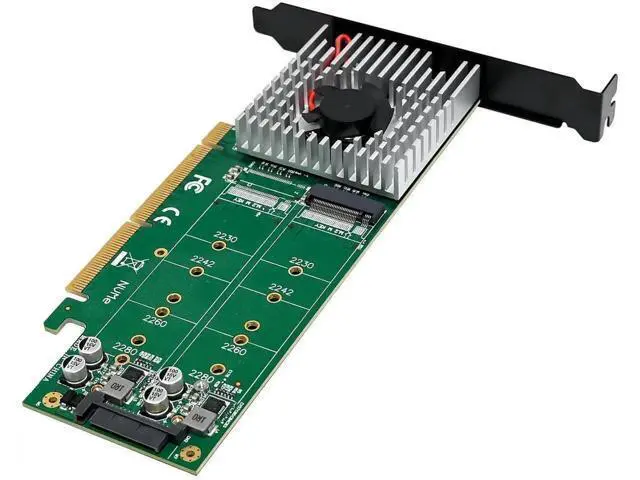

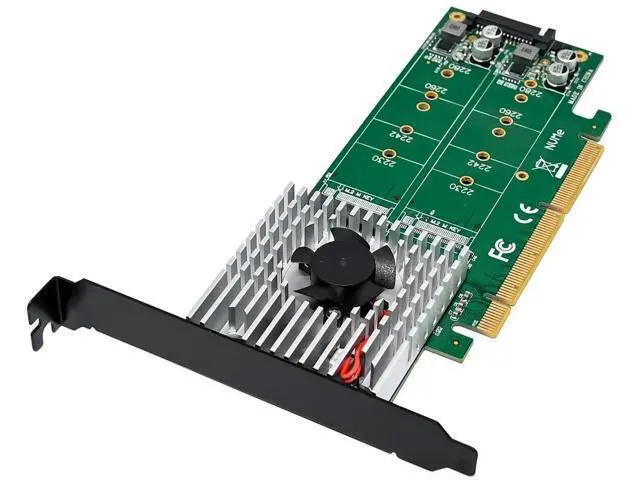

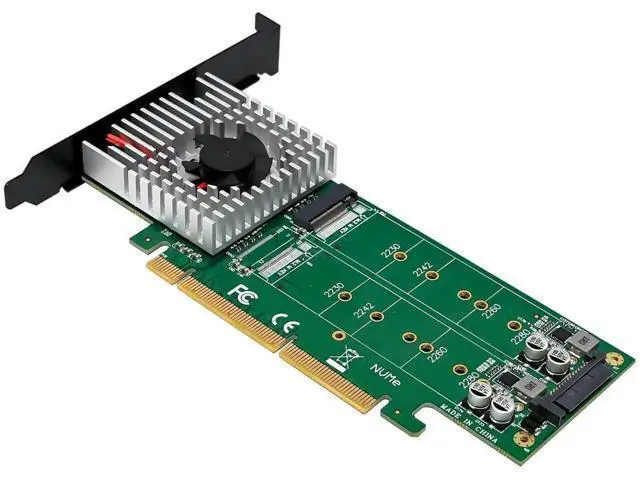

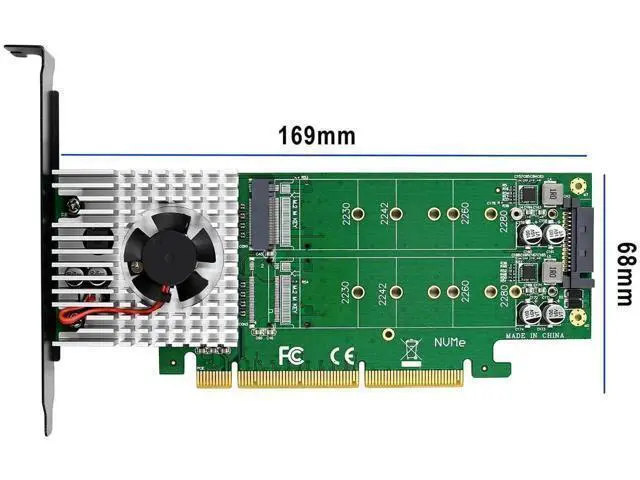

Dual M.2 NVMe PCIe Adapter, M.2 NVMe NGFF SSD to PCI-e 3.1 Gen3 X8 X16 Card with Low Profile Bracket Support M.2 (M Key) NVMe SSD 22110/2280 /2260/2242 /2230
- [PCIE Gen3 Chipset] Dual NVMe to PCIe Adapter Adopts ASMedia ASMedia ASM2812 Chipset, It does NOT depend on PCIe bifurcation supported by MOBO. Each SSD costs PCI-e 3.1 x4 Channel individually, non-interfering. (The final speed depends on the SSD and the Mobo's PCI-e bandwidth)
- [Wide compatibility]Compatible with M.2 SSDs (PCI-e NVMe ): All Size 110x 22mm, 80x22mm, 60x22mm, 42x22mm and 32x22mm . Hardware Requirement: Available PCI-e 8x/16x Slot on Mainboard, Compatible with PCI-e 3.0/2.0/1.0 standards
- [Note]Please NOTE: 1. This M.2 PCIe Adapter can Only Support M.2 PCI-e Based M Key Nvme SSD, DO NOT support PCI-e M Key AHCI SSD, SATA based B+M key or B Key SSD. 2. Please download driver of SSD from the brand official website if "Disk Management" or "Device Management" can not show the SSD. 3. Old MB can not support Booting from "NVMe", Please confirm the MB's specification 4. Each SSD costs PCI-e 3.1 x4 Channel, NOT whole PCI-e 3.1 x8
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Upgrade your system speed and performance with this Dual M. 2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M. 2 SSDs (NVMe) into the PCIe 8-lane or lager slot of your desktop workstation or server. Features Install 2 PCIe 3.0 M. 2 SSDs (NVMe) into your workstation or server for read/write speeds up to 3.5GB /s and 3.2GB /s for single drive Wide installation compatibility, with support for virtually all M. 2 NGFF drives (22110, 2280, 2260, 2242, 2230) Two M.

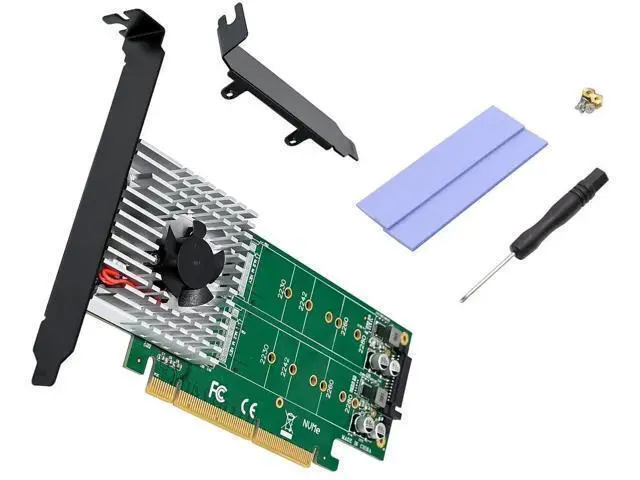

2 NGFF type M Key socket on board Adjustable stand-offs, and multiple mounting holes support 80mm, 60mm, 42mm, and 30mm SSDs Fast, hassle-free setup with native support on most operating systems Compliant with PCI Express 3.0 standards M. 2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, JBOD for tiered/hybrid storage Equipped with full-profile bracket, includes a low-profile (half-height bracket) for installation in small-factor computers Installs into x8, or x16 PCIe slots Additional Features [Software RAID Function]M.
2 NVMe Adpater lets you to use SSDs individually, Speed up to or in a storage pool for OS or 3rd party software RAID configuration. Does NOT support Hardware RAID [Dual M. 2 Slot]Dual NVMe PCIe Adapter allows you add 2x M. 2 NVMe SSD to Mainboard via a single PCI-e x8 Slot
2 NGFF type M Key socket on board Adjustable stand-offs, and multiple mounting holes support 80mm, 60mm, 42mm, and 30mm SSDs Fast, hassle-free setup with native support on most operating systems Compliant with PCI Express 3.0 standards M. 2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, JBOD for tiered/hybrid storage Equipped with full-profile bracket, includes a low-profile (half-height bracket) for installation in small-factor computers Installs into x8, or x16 PCIe slots Additional Features [Software RAID Function]M.
2 NVMe Adpater lets you to use SSDs individually, Speed up to or in a storage pool for OS or 3rd party software RAID configuration. Does NOT support Hardware RAID [Dual M. 2 Slot]Dual NVMe PCIe Adapter allows you add 2x M. 2 NVMe SSD to Mainboard via a single PCI-e x8 Slot
