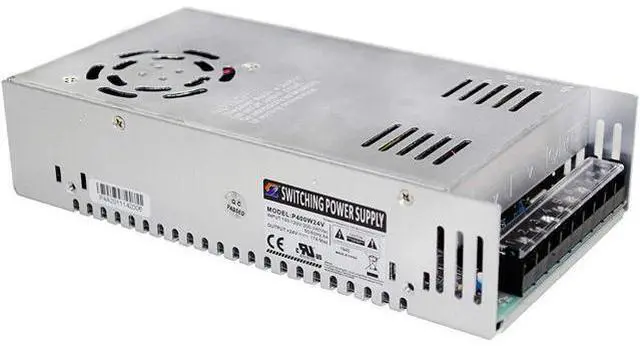

Chengliang Power Supply Dc 24v 17a 400w Original Ender 3 3D Printer Switching PSU UL Certified

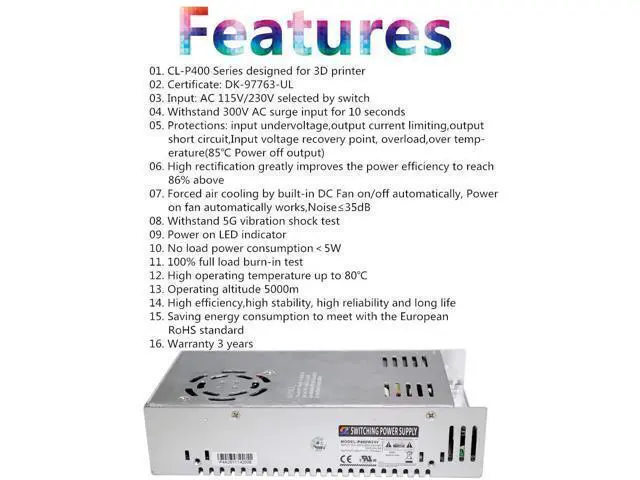

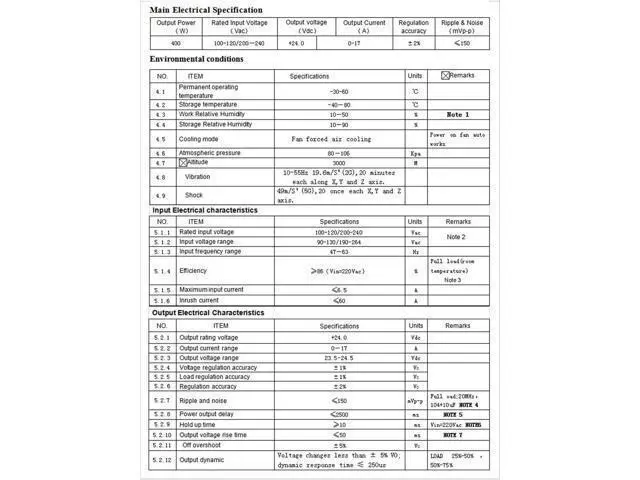

Chengliang Power Supply CL-P400W24V-D Color Silver Size L215xW115xH30mm Weight 720g Features Auto on/off cooling fan power on auto works Noise35dB >High rectification greatly improves power efficiency to reach to more than 86% Withstand 300V AC surge input for 5 seconds 5G anti-vibration anti-shock Power on LED indicator No load power consumption5W(under -25~+60 under full load) 100% full load burn-in test High operating temperature up to 80 Operating altitude 3000m Protections input undervoltage output current limiting output short circuit Input voltage recovery point overload over temperature (85 Power off output) Output DC Rated Voltage 24v DC Voltage Range 23.5 - 24.5 v Rated Current 17a Current Range 0-17a Rated Power 360w Ripple and noise150mVp-p Voltage regulation±1% Load regulation±1% Voltage Tolerance±2% Power output delay2500ms Hold up time10ms Voltage rise time50ms Input Rated voltage 100-120/200-240vac Voltage Range 90-130/190-264vac Frequency Range 47-63Hz Efficiency%86 Maximum Current 6.5 a Inrush Current60A Leakage Current< 1.0 mA(Vin=220Vac) Note This is single-output enclosed type power supply install and remove it carefully Do not place other flammable items within range of 50cm round hole mesh heat vents of the power supply shell Do not place other items withn range of 10cm round case, ensure that psu has good thermal ensure safety Do not overload Do not touch case of psu during working Do not output after short circuit, if no output, power off one minute restart Check if power wires is correctly connected before use, prevent reverse connection CHENGLINAG Built up in 2013 Always Focus on switching&driving power supply professional R&D production and Sale Got certifications ISO9001 UL DK-87763-UL CE FCC RoHS etc
