4.3 Inch TFT LCD Car Monitor Foldable Monitor Display Reverse Camera Parking System for Car Rearview Monitors NTSC PAL

Description: Waterproof design Includes 4 LED lights and supports night vision within 5 meters CCD 3030 imaging sensor Supports NTSC video systems High-definition and wide viewing angle Applicable to variety of vehicles

Specifications

: Rear View
Monitor Display Size: 4:3
Resolution: 480 x 272
Color Model: RGB
Video System: PAL/NTSC
Power Supply: DC 12V
Power Consumption: 2W
Backup camera: Effective
pixels: 580X540
Image sensors: PC7070 Lens angle (Deg. ): 170 degree
Minimum illumination: 1.5L ux / F 1.2
S/N ratio: >48dB
Video output: RCA, 1.0VP - P.
75ohm Working voltage: DC12V
Waterproof: IP6
Connectivity: Wire
Video format: PAL/NTSC Working
Power (DCV): 12V
Current consumption: 90mA Max Placement Position Directly placed in the car's central control position, small size does not occupy the place, do not block the line of sight and drive safely. Installation Introduction A is the rear camera, the power supply is connected to the positive and negative poles of the reverse lamp, the red is the positive pole, the black is the negative pole, B is the display, the red is connected to the ACC positive pole, and the black is connected to the ACC negative pole.

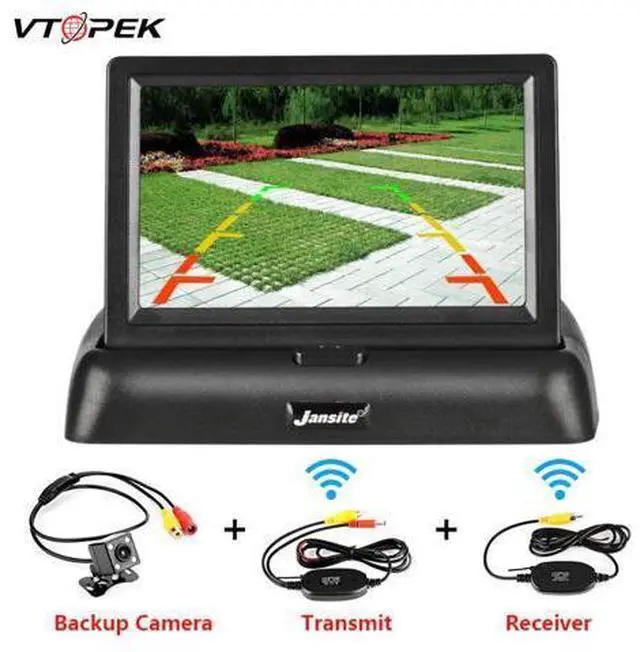

Package includes: 1 x 4.3 inch Monitor 1 x Video power cable 1 x Rear Camera (Optional)
