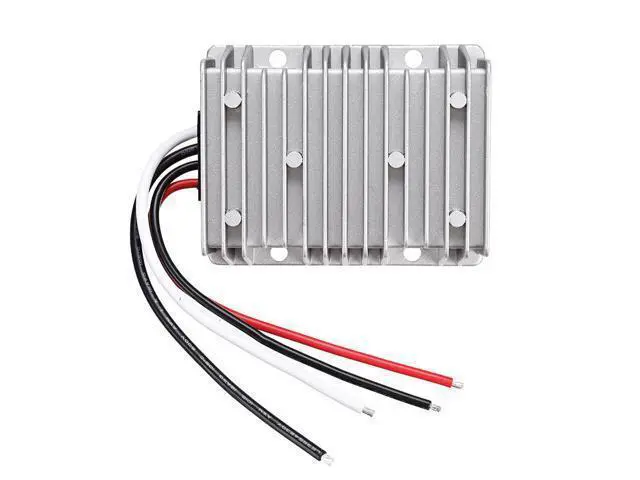

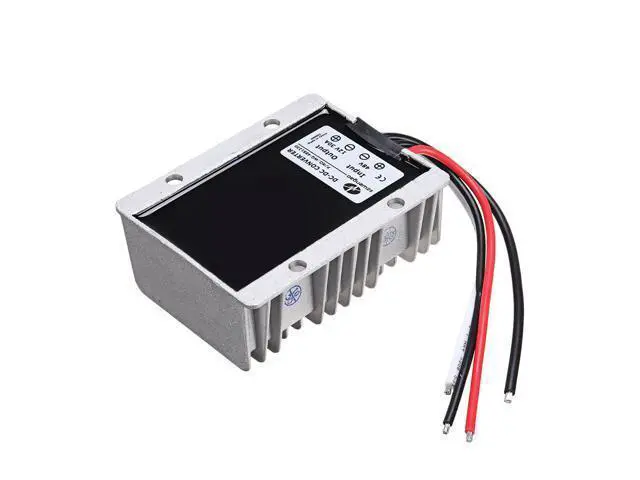

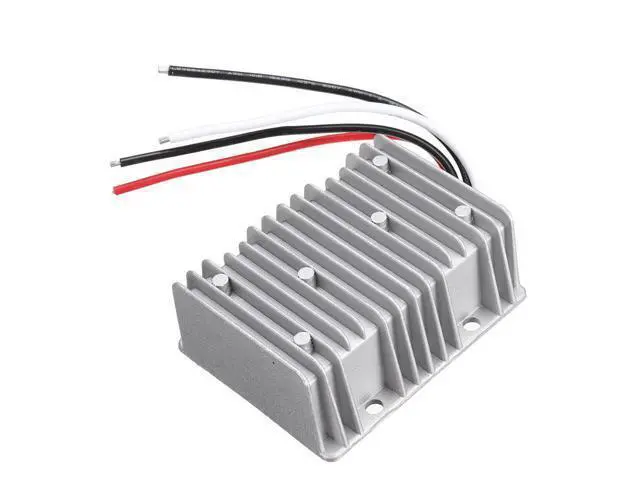

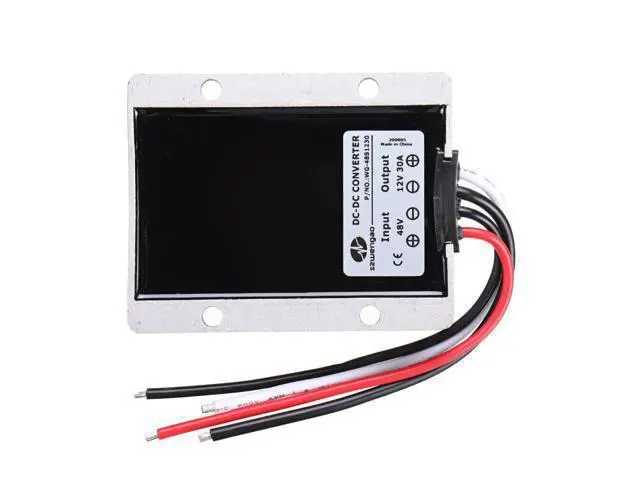

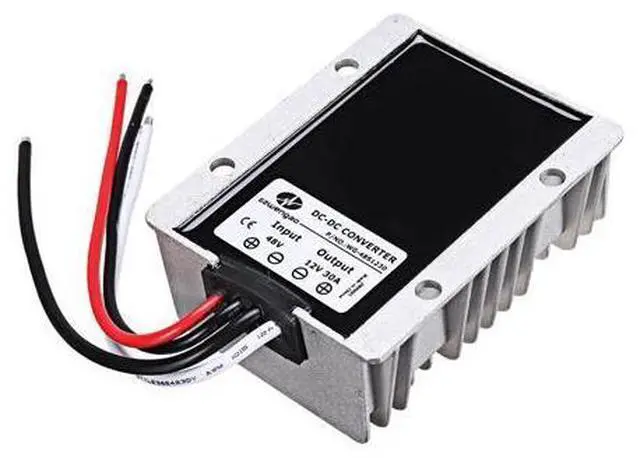

    WG-48S1230 48V to 12V 30A 360W DC-DC Power Converter Waterproof Step Down Module

    Be the first to review this product...
    • Features: *Designed according to CE/RoHS *100% full power, high stability output *100% full load aging test *Imported components *Imported high-quality thermal silica gel potting, waterproof, dustproof and shockproof * Die-cast aluminum alloy shell, small size, simple installation *Internal protection functions such as over current, low voltage, over temperature, short circuit, reverse connection, etc. *Wide voltage input, high conversion efficiency of 92-97% *Long service life of more than 100,000 hours. Specification: Brand: Model: WG-48S1230 Output current: 30A Input voltage: 36V/48V DC Input voltage range: 35V~60V DC Output voltage: 12V DC No-load loss: 60mA Output power: 360W Voltage adjustment rate: <1% Load regulation rate: <2% Ripple: 160mVp-p Working temperature: -40°C ~+80°C Dimensions: 100*80*39mm Efficiency: 95% Waterproof rating: IP68 Weight: 500g Input wiring: 14AWG (red "+" black "-") Output wiring: 12AWG (white "+" black "-") Package included: 1 x Car Power Converter
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Features: *Designed according to CE/RoHS *100% full power, high stability output *100% full load aging test *Imported components *Imported high-quality thermal silica gel potting, waterproof, dustproof and shockproof * Die-cast aluminum alloy shell, small size, simple installation *Internal protection functions such as over current, low voltage, over temperature, short circuit, reverse connection, etc. *Wide voltage input, high conversion efficiency of 92-97% *Long service life of more than 100, 000 hours.
    Specification:
    Brand:
    Model: WG-48S1230
    Output current: 30A
    Input voltage: 36V/48V
    DC Input voltage range: 35V~60V DC
    Output voltage: 12V
    DC No-load loss: 60mA
    Output power: 360W
    Voltage adjustment rate: <1%
    Load regulation rate: <2%
    Ripple: 160mVp-p
    Working temperature: -40°C ~+80°C
    Dimensions: 100*80*39mm
    Efficiency: 95%
    Waterproof rating: IP68
    Weight: 500g
    Input wiring: 14AWG (red "+" black "-")
    Output wiring: 12AWG (white "+" black "-")
    Package included: 1 x Car Power Converter
