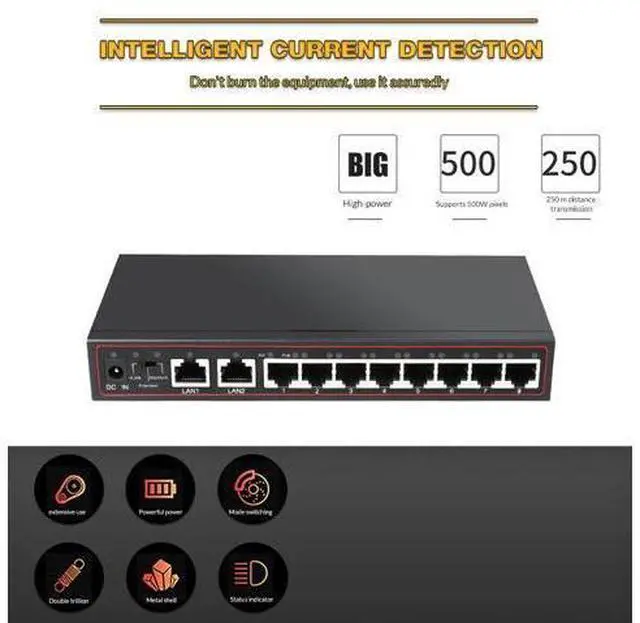

10-Port Poe Switch 48 V Power Over Ethernet Network Switch 802.3 AF / to for IP Camera / Wireless AP / CCTV Camera System

10-Port Poe Switch 48 V Power Over Ethernet Network Switch 802.3 AF / to for IP Camera / Wireless AP / CCTV Camera System Features 1. Ten 10/100Mbps Power Over Ethernet Port 2.1 -10
Port: 10/100M auto sensing RJ45 port 3. Max. 30W for each PSE/PoE Port (Port 1~8) 4.
Switch Mode: a.
Mode 1 (Standard): Port 1~ 10: 10 /100M auto-sensing @ 100 meters b.
Mode 2 (Extend): Port 1~ 8: 10 M @ 250 meters; Port 9~ 10: 100 M @ 100 meters c.
Mode 3 (VLAN): Port 1~ 8: 100 M @ 100 meters; Port 9~ 10: 100 M @ 100 meters; Ports 5. 1 to 8 will be isolated from each other, but will still be able to communicate with uplink port 9 and 10.
6. Auto-detect full/half-duplex, MDI/MDI-X 7. IEEE 802.3 x flow control for full-duplex and back-pressure flow control for half-duplex
8. Store and forward
9. Fanless design
10. Rugged metal enclosure Industry Standards IEEE 802.3 af/at, IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x Performance Bandwidth 1.6G Buffer Size 1M MAC Size 1K Flow Control Full duplex flow control Switching Architecture Store-and-Forward Connector (s) Connector Type (s) 10 x 10/100M RJ45
Ports Port 1~8: IEEE 802.3AF /AT PoE port Software OS Compatibility OS Independent; No additional driver or software required Indicators LED Indicators 1 Power (Green) 1 Extend (Green) 1 VLAN (Green) 8 PoE Status (Blue) 10 Link/Activity (Green) Power Source DC Adapter Included Environmental Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Procuct Introduction
