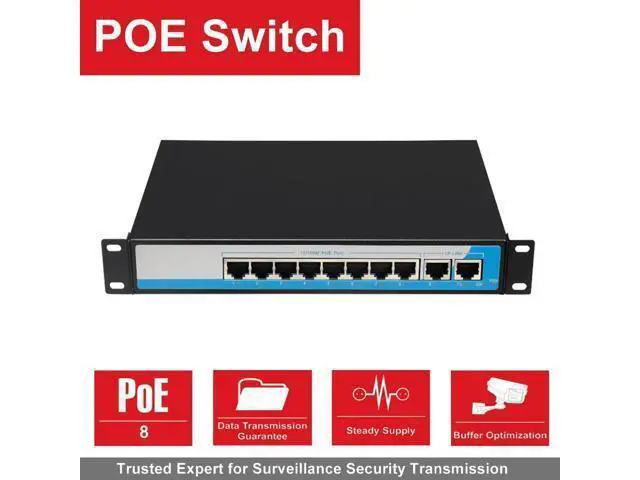

8 Port 100Mbps IEEE802.3af POE Switch/Injector Power over Ethernet Network Switch for IP Camera VoIP Phone AP devices 2 Up-link

In Stock 8 Port 100Mbps IEEE 802.3 af POE Switch/Injector Power over Ethernet Network Switch for IP Camera VoIP Phone AP devices 2 Up-link This PoE Switch provides a network point for power supply and data transmission. All the 10 Ethernet ports can be connected with 10/100Mbps quickly, and the uplink port is Ethernet interface, among which 1-8 port can provide standard IEEE 802.3 af power supply. Due to the advanced self-sensing algorithm supply power for IEEE802af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment.

In addition, it will stop power supply when PoE devices are not connected.
Model: LS901-AF-82N
PoE Port: 8 RJ45 10M / 100M Ethernet interface
Uplink Port: 2
PoE Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af/at
Consumption: Single ( IEEE 802.3 af ) Max. 15.4W / Single ( IEEE 802.3 at ) Max. 30W Output ( single port ): DC 48V
Backplane Bandwidth: 2GBbps
Swich way: Store and forward
Mac address: 2K (auto -learning and auto-aging)
Power input: Built-in AC110V-260V
Power Consumption: 150W
LED indicator: Green ( Link-act), Red ( PoE-status ) Dimension ( L * W * H ): 220mm * 161 mm * 37mm Package size ( L * W * H ): 303mm*181mm*57mm
Note: We have EU, US, AU and UK 4 kinds of the plug for this poe switch. Don`t forget to inform us or leave notes, when you placing the order. Thanks in advance!
