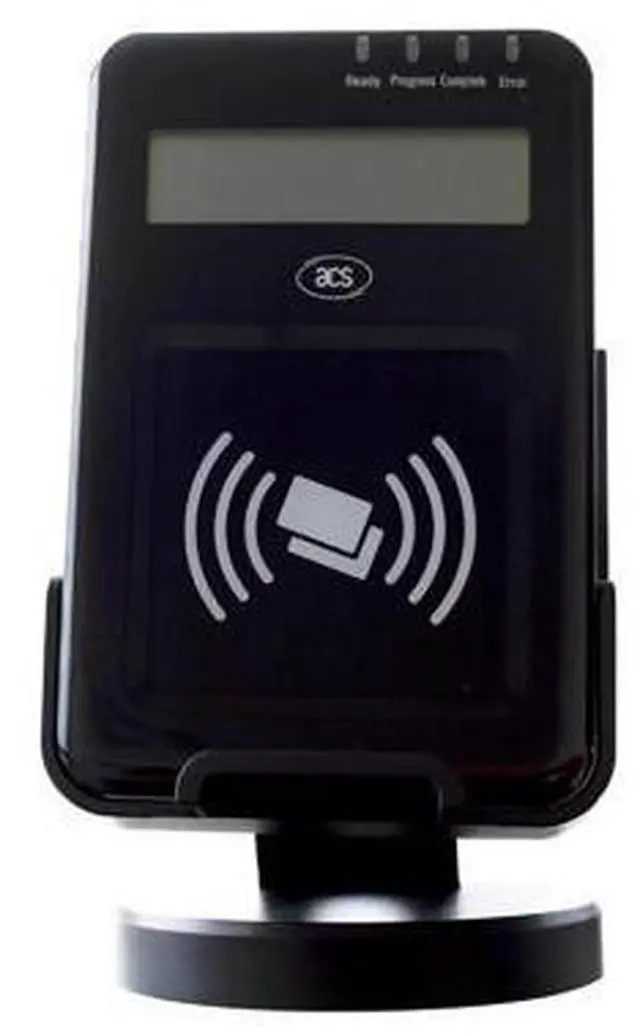

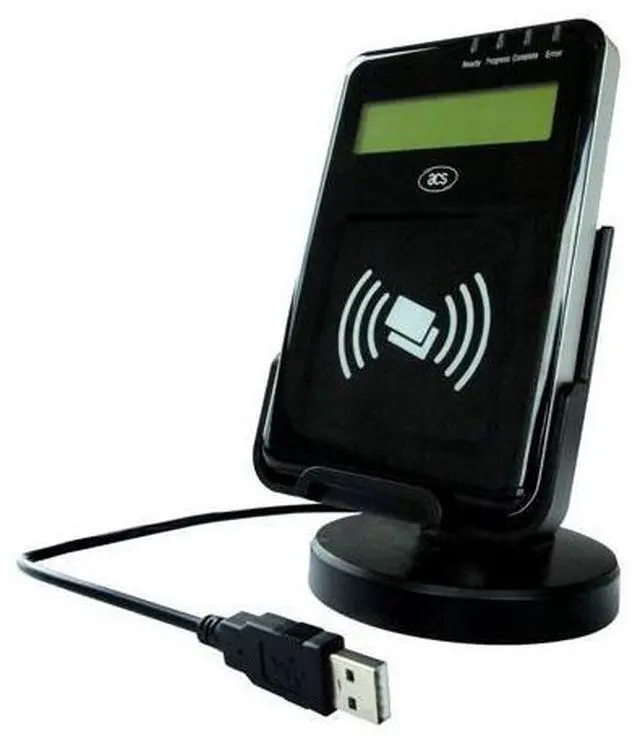

POS Credit card ISO1443 PC RFID Compliant Contactless USB NFC Smart Reader With LCD Screen Reader ACR1222L

ISO1443 PC SC Compliant Contactless USB NFC Reader With LCD Smart Card Reader ACR1222L Features 1. USB 2.0 Full Speed Interface 2. CCID Compliance
3.
Smart Card Reader:
4. Read/Write speed of up to 424 kbps
5. Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
6. Support for ISO 14443 Part 4 Type A and B cards,, FeliCa and all four types of NFC (ISO/IEC 18092) tags
7. Built-in anti-collision feature (only one tag is accessed at any time)
8. Three ISO 7816 compliant SAM slots
9.
Built-in Peripherals:
10. Two-line graphic LCD with interactive operability (i. e. scroll up and down, left and right, etc. ) and multi-language support (i. e. Chinese, English, Japanese and several European languages)
11. Four user-controllable LEDs
12. User-controllable buzzer 13. USB Firmware Upgradability Application 1. E-Government 2. E-Banking and e- 3. E-Healthcare
4. Transportation
5. Network Security
6. Access Control
7. Loyalty Program

Specifications

Dimensions Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H)
Weight Main Body: 173 g
With Stand: 415 g Interface USB 2.0 Full Speed Operating Distance Up to 50 mm (depends on the tag type) Supply Voltage Regulated 5V DC Supply Current 300mA (maximum); 50mA (standby); 150mA (normal) Operating Temperature 0-50°C Operating Frequency 13.56 MHz
