OLED/TFT Color DevKit ESP32 Watch Development Board
- Color1:#2
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
What is it? It is a ESP32 Watch development board.

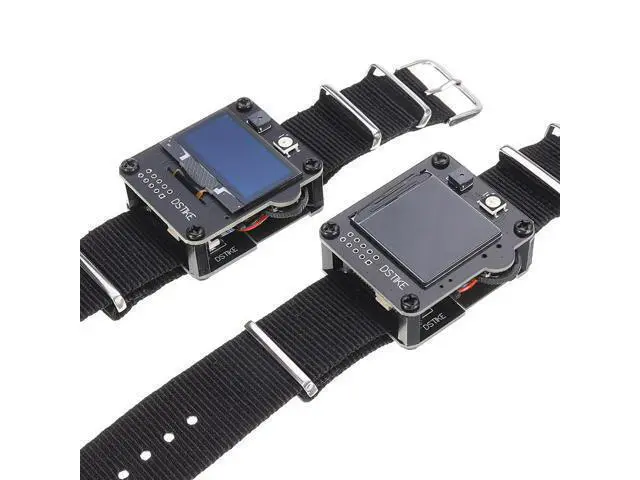

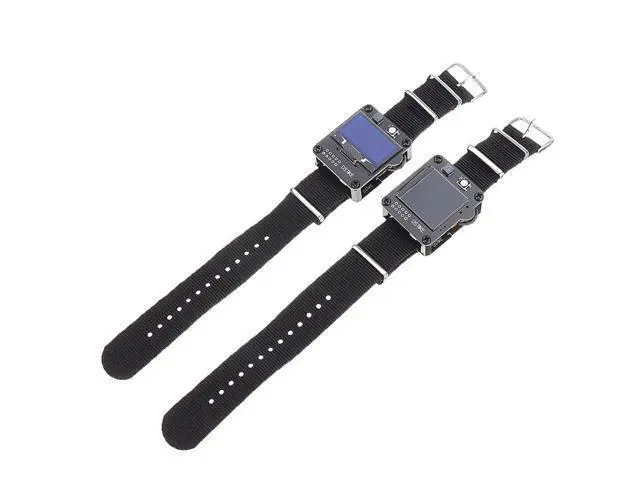

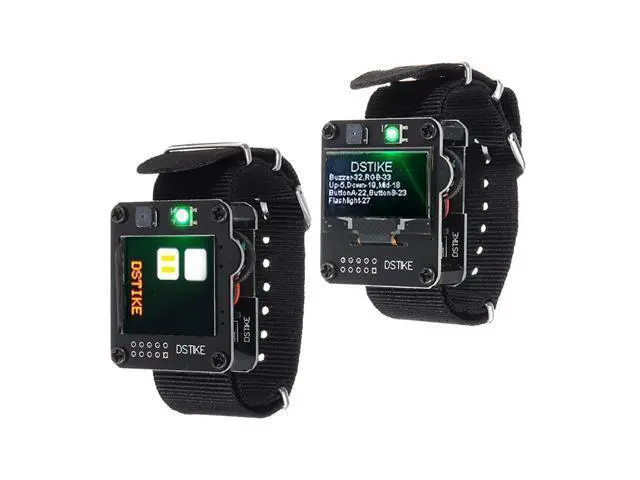

There are two versions: OLED version and TFT color version. Both version share the same bottom board. Why did you make it? This product was planned at the same time of deauther wristband. I learned a lot of experience from deauther wristband and I knew ESP32 is a better choice for a "Watch". The break ou pads are also designed to connect different sensors. TX/RX could be used to communicate with computer or other control board. 17/16 is IIC port could be connected with RTC module or other IIC sensors. SVP/SVN could input ADC signals. 25/26 could output DAC signals. What makes it special?
Small size: 3.8 x 4.5 cm
Height: 1.5 cm Double 4 layer board 600mAh battery inside On/OFF Power Switch

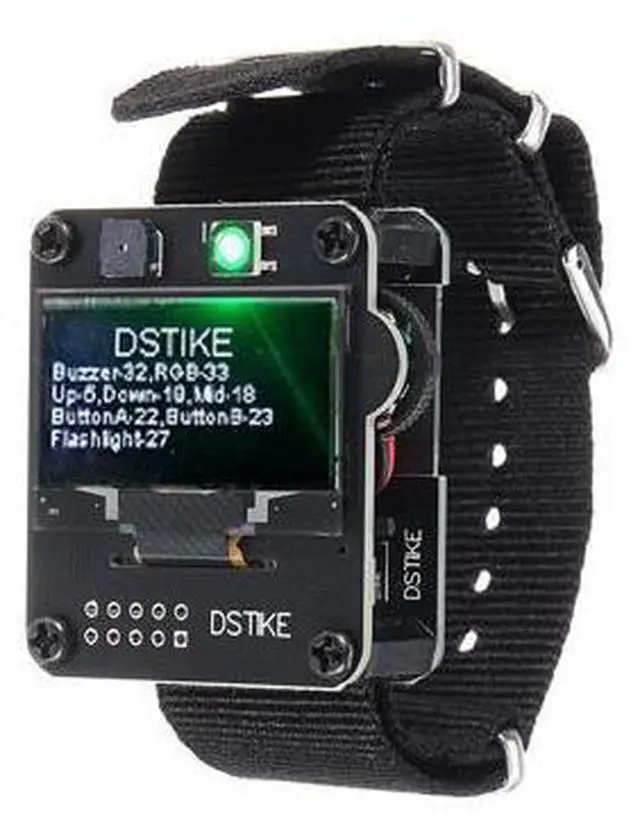

OLED version: 1.3OLED SH1106(SDA-17, SCL-16)

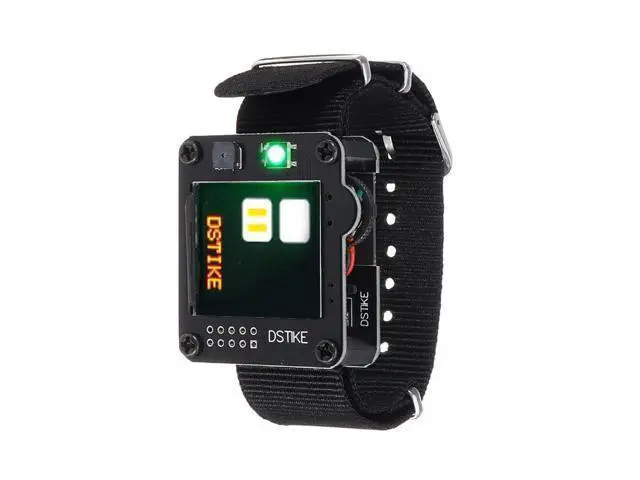

TFT color version: ST7789 240*240 LCD(SDA-17, SCL-16, DC-22, RES-23) Buzzer-32 WS2812b RGB LED-33 Navigation Button(Up-19, Center-18, Down-5) OLED version external slide button(22, 23) Highlight LED (27) Indicate charging LED(On means Charging, OFF means Full) Reset and Flash Button at Bottom board Break ou GPI
Os(TX, RX, 17, 16, SVP, SVN, 25, 26, GND, 3V) SD Card support GPIO12--DAT2 GPIO13--DAT3 GPIO15--CMD GPIO14--CLK GPIO2--DAT0 GPIO4--DAT1 GPIO21--card Tutorial: 1. Install the environment for ESP32 2. Install OLED library Install TFT LCD library 3. Install Adafruit NeoPixel Library 4. Code Example for oled version Code Example for TFT color version Upload config
Package Included: 1 x DSTIKE ESP32 Watch DevKit
There are two versions: OLED version and TFT color version. Both version share the same bottom board. Why did you make it? This product was planned at the same time of deauther wristband. I learned a lot of experience from deauther wristband and I knew ESP32 is a better choice for a "Watch". The break ou pads are also designed to connect different sensors. TX/RX could be used to communicate with computer or other control board. 17/16 is IIC port could be connected with RTC module or other IIC sensors. SVP/SVN could input ADC signals. 25/26 could output DAC signals. What makes it special?
Small size: 3.8 x 4.5 cm
Height: 1.5 cm Double 4 layer board 600mAh battery inside On/OFF Power Switch
OLED version: 1.3OLED SH1106(SDA-17, SCL-16)
TFT color version: ST7789 240*240 LCD(SDA-17, SCL-16, DC-22, RES-23) Buzzer-32 WS2812b RGB LED-33 Navigation Button(Up-19, Center-18, Down-5) OLED version external slide button(22, 23) Highlight LED (27) Indicate charging LED(On means Charging, OFF means Full) Reset and Flash Button at Bottom board Break ou GPI
Os(TX, RX, 17, 16, SVP, SVN, 25, 26, GND, 3V) SD Card support GPIO12--DAT2 GPIO13--DAT3 GPIO15--CMD GPIO14--CLK GPIO2--DAT0 GPIO4--DAT1 GPIO21--card Tutorial: 1. Install the environment for ESP32 2. Install OLED library Install TFT LCD library 3. Install Adafruit NeoPixel Library 4. Code Example for oled version Code Example for TFT color version Upload config
Package Included: 1 x DSTIKE ESP32 Watch DevKit
