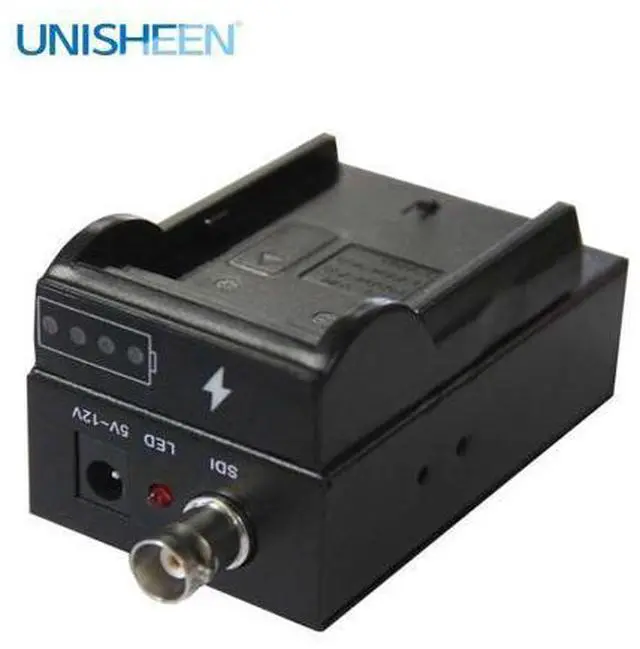

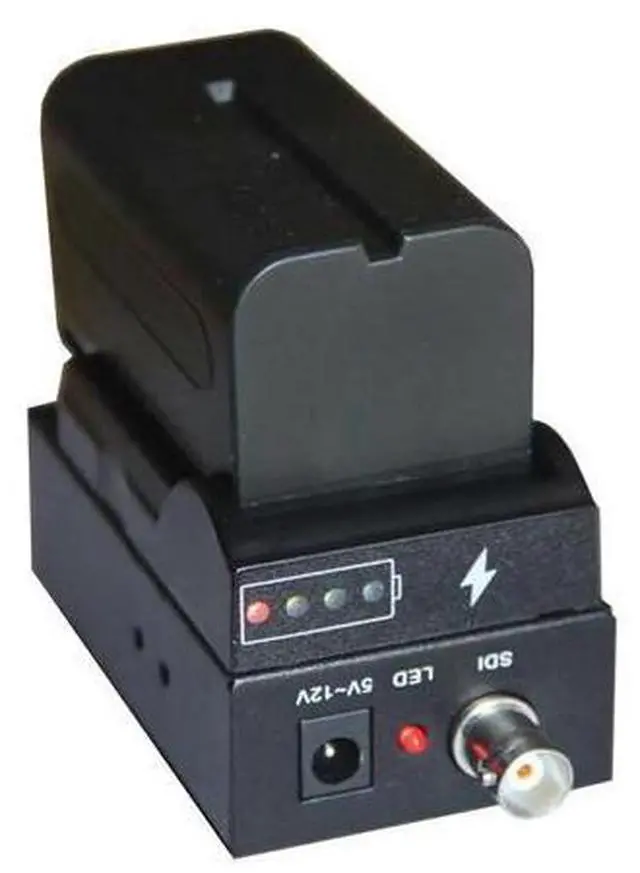

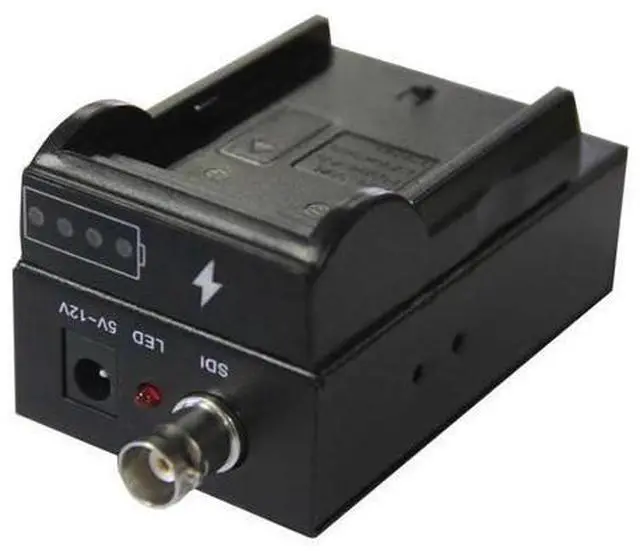

3G-SDI to Video Converter with Battery Socket 1080p Camera Transmmiter

Note 1. There have two model SDI to (UCT100) to SDI (UCT101) Please select model before shipping 2. The package without battery Introduction The MINI SDI to converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on displays thanks to the built in converter. Features Operation at 2.970G bit/s, 1.485G bit/s and 270Mbits/s Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio Conversion from SMPTE 425M level B to Level A 1080p 50/ 59.94 /60 4:2: 2 10-bit Connect with other units to extend your signal over long distances Package Video Converter---------------------------1PCS 5V DC Power Supply Adaptor------------------------1PCS Operation Manual --------------------------------------1PCS Specificaitons Input Port 1 x BNC (SDI/HD-SDI/3G-SDI) or 1 x Output Port 1 x or 1 x BNC (SDI/HD-SDI/3G-SDI) SDI Transmission Rates 2.970 Gbit/s and 2.970 / 1.001 Gbit/s In/Output Resolution 480i, 576i, 720p50/ 59.94, 60, 1080i50/ 59.94 /60 1080p 23.97 /24/25/ 29.97 /30/50/ 59.94 /60 Power Supply DC 5V -12V Battery Supply F550/F750 Support ESD Protection Human body model ±8kV (air-gap discharge), Model:
