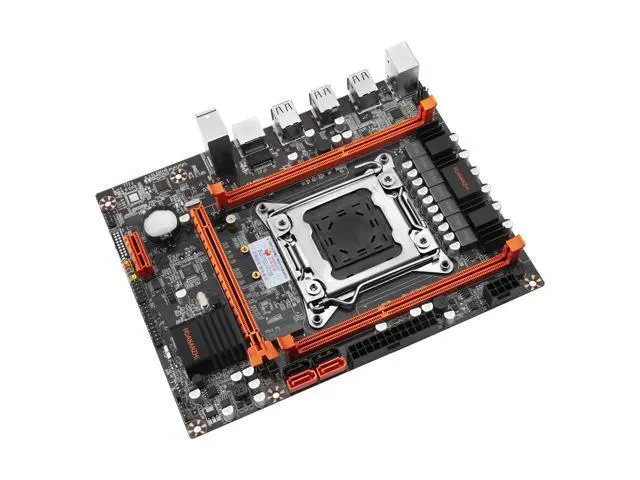

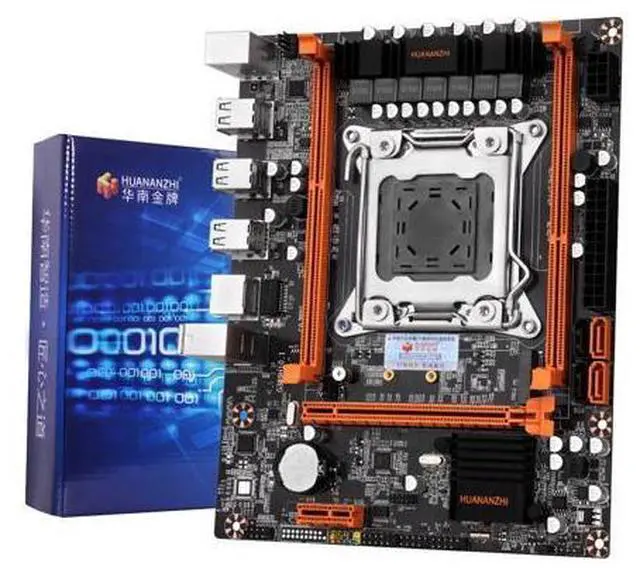

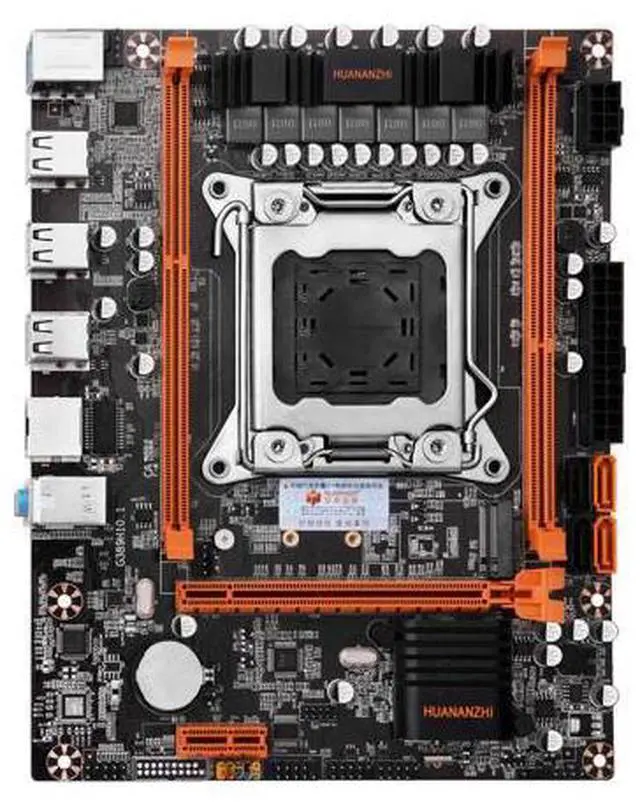

X79 4M Motherboard M-ATX USB3.0 SATA NVME NGFF M.2 SSD Support REG ECC Memory and Xeon E5 Processor C2/V1/V2 2640

Specifications

: Model X79-4M V 3.0 MOTHERBOARD Sockets Supported LGA2011 CPU Socket Support intlel Xeon E5sentesV1, v2&Core LGA2011 Memory Type Supported NON-ECC/REG ECC/ECC memory Memory Socket 2*DDR3 Max Memory Capacity DDR3 1866/1600/1333 MHz Maximum memory capacity DDR3 32G*2 SATA 2*SATA 2.0, 2*SATA 3.0 Network Interface RJ45 Gigabit Ethernet Card Network card chip model RTL8111H Soud Track ALC662 Structure M-ATX USB 10x USB 2.0 port (s) (6 at back panel, 4 at mid-board) Fan interface 2 Dimension 213mm*168mm Power headers x8 pin 1x24-pin headers PCI Expansion Slot 1xPCle 3.0 / 2.0 x16 (x16 mode), 1xPCle 3.0 / 2.0 x1, 1*M.
2 nvme Features: 1. Support Intel 2011 Processors. 2. 2xDDR3 Memory Slot, DDR3 1866/1600/1333MHz. 3. Support NON-ECC/REG ECC/ECC memory. 4. 5.1 Sound Track ALC662 Chip. 5. 4 layer PCB7 Phases power supply. 6. 10 x USB 2.0 port (s) (8 at back panel, 2 at mid-board. 7. 1 x PCIe 3.0 / 2.0 x16 (x16 mode), 1 x PCIe 3.0 / 2.0 x11 x M. 2 NVME. 8. RJ45 Gigabit Ethernet Card. 9. Hight efficient metal heatsink.
Note: 1. The platform needs powerful power. Please make sure your power supply is sufficient to support it (at least 500w power supply). 2. Please allow 1-3mm differs due to manual measurement. 3. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. 4. We show photos of motherboard, pictures are for reference only, subject to our available products.
