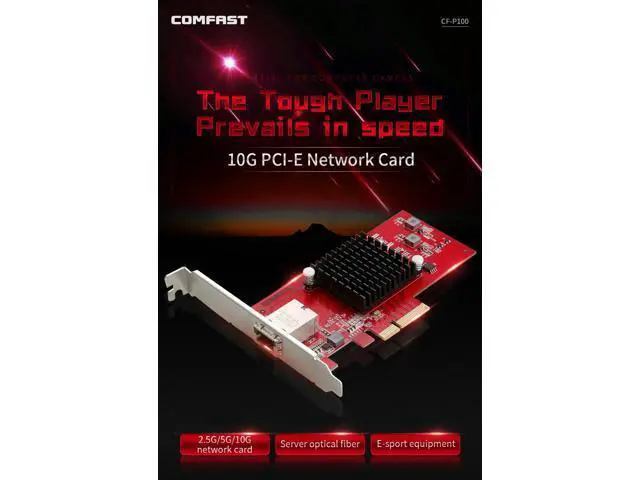

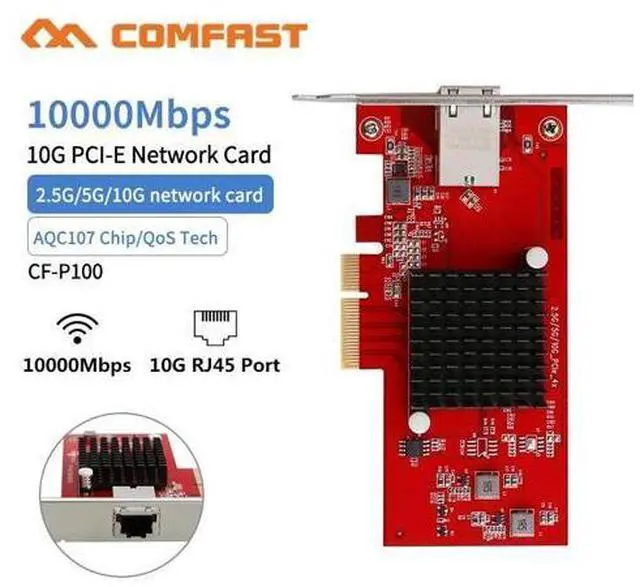

CF-P100 AQC107 10G Ethernet PCI Express 3.0 Wireless Adapter 2.5G/5G/10G PCIE-X4 Network card 10Gbps Fast Transmission Dongle

10G PCI-E Ethernet Card Adapter High Speed 10G Ethernet RJ45 LAN Network For WIN7 8 10 PC dongle CF-P100

Specifications

:
1. High Speed 10G PCI-E network card 2. E-Sport 2.5G /5G/10G Network card 3. 10000M Speed 10G network transmission

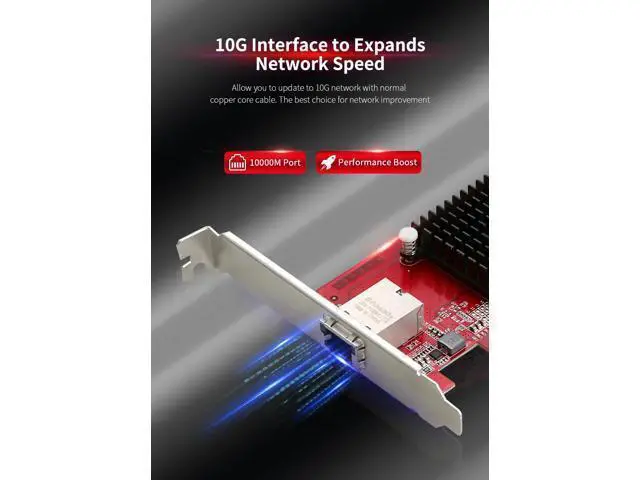

4. High Performance AQC107 chipset 5. 10G RJ45 Port to expands network speed
6. Support for Windows7, 8. x, 10 Windows Server 2008R2, 2012, 2016 Linux 2.6 x to 4.

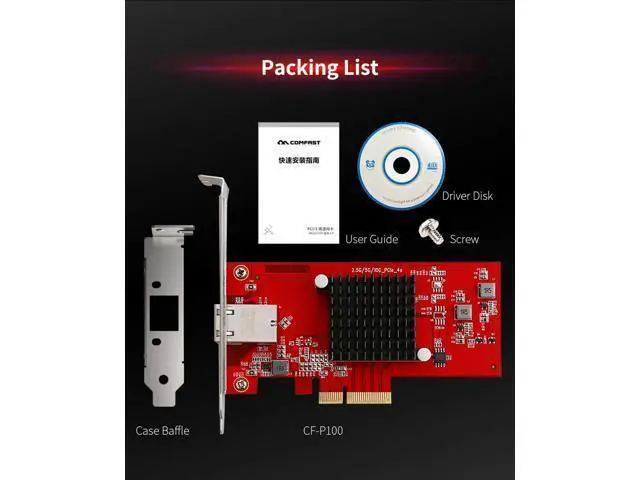

x Package included: 1* CF-P100 1* Case Baffle 1* Screw 1* CD 1* User Guide Install guide

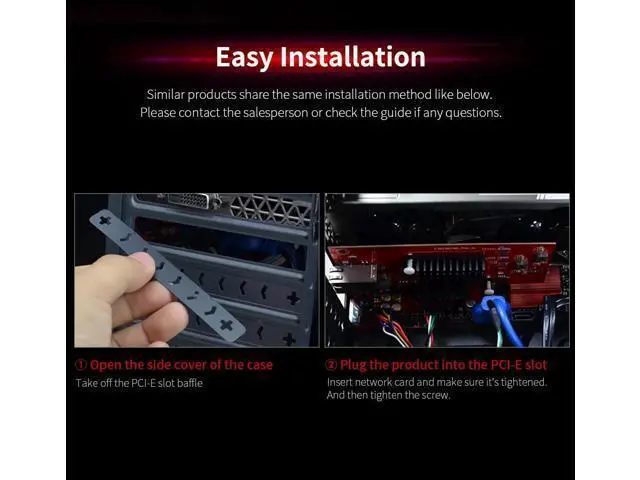

1. Open the side cover of the case Take off the PCI-E slot baffle
2. Plug the product into the PCI-E slot Insert network card and make sure its tightened. And then tighten the screw.
Specifcation: 1.
Hardware: AQUANTIA-AQC107 2.
Hardware type: PCI Express 3.0 ( 8.0 GT/S)
3.
Type: PCIE-X4
4.
Standard: IEEE 802.3 u 100 BASETX, IEEE 802.1 ab 1000BAS IEEE 802.3 an 10GBASETT, IEEE 802. IQ VLANS, IEEE 802.3 x Flow Control, IEEE 802. Ip Priority Queuing, IEEE 802.3 az EEE 5.
Power consumption: 10Gbps - 5.3W 6. Suits for PCI Express enabled PC, and with available PCI Express x4 slot Gen 2.0 or higher (x8, x16)
7. Support OS Windows7, 8. x, 10 Windows Server 2008R2, 2012, 2016 Linux 2.6 x to 4. x
8.
Dimension: 130*55mm;
Weight: 72g (measured manually with slight deviation)
