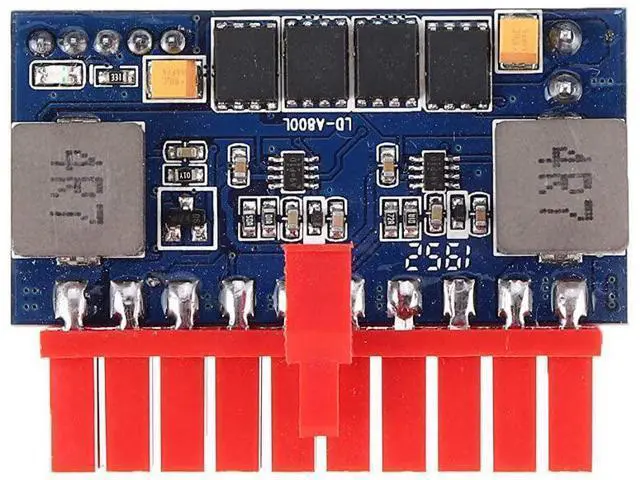

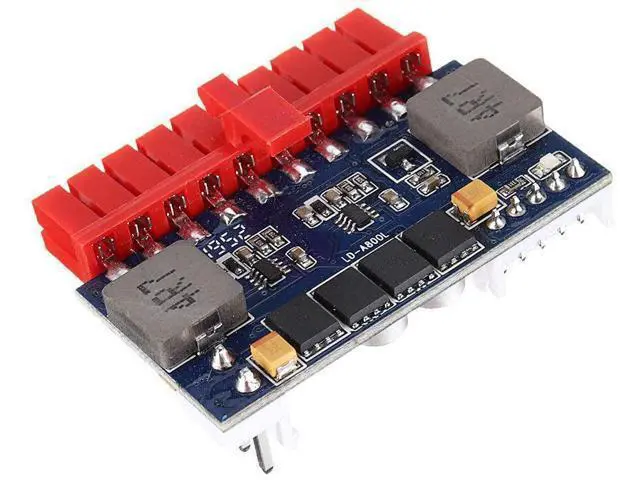

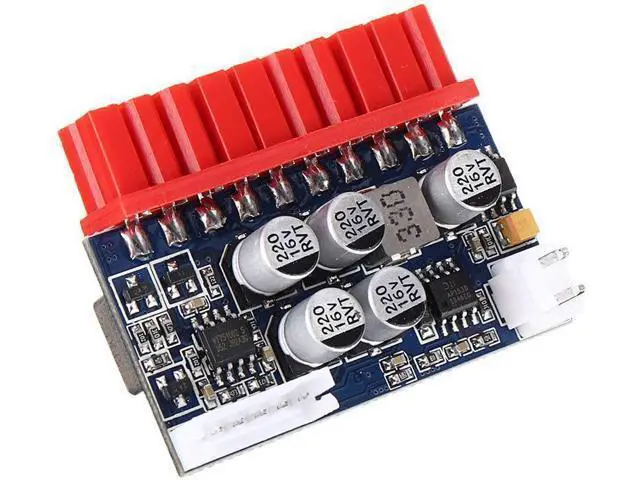

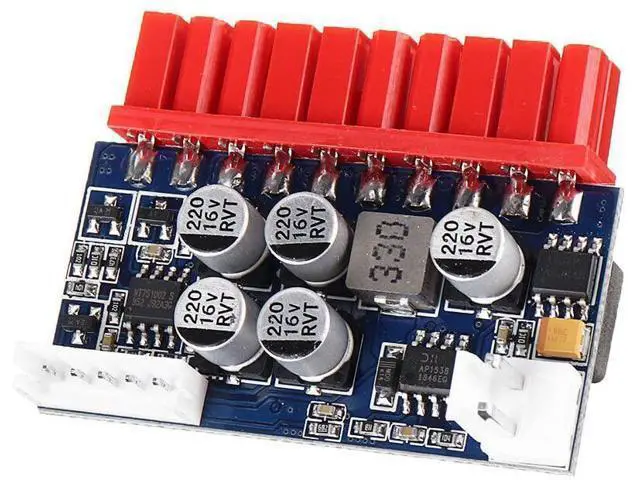

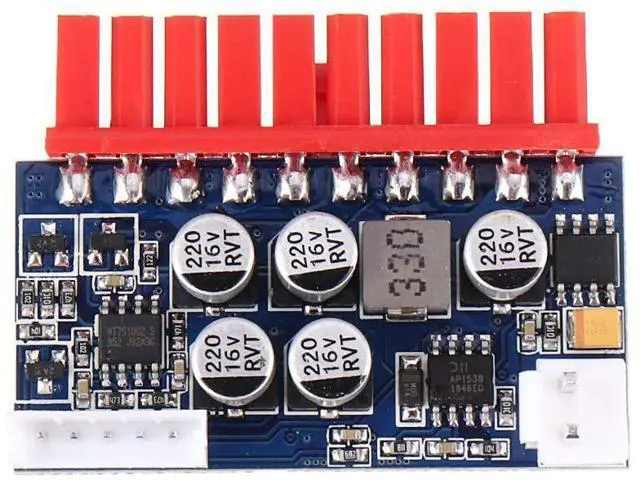

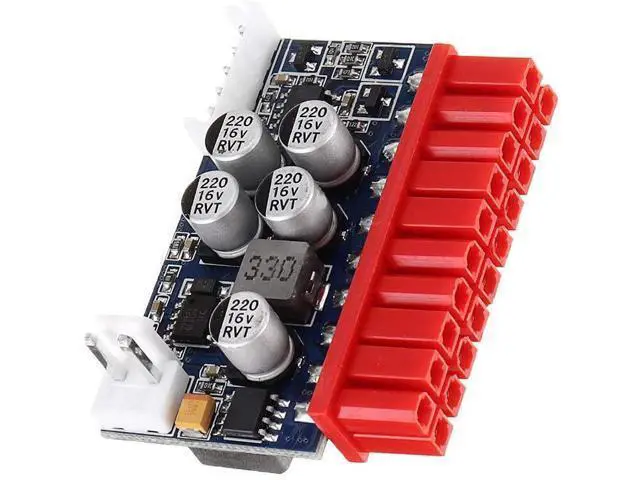

SHELLSK Power Module Parts 20Pin 12V 90W Output Mini ITX DC ATX PC Switch DC-DC ATX Pico PSU Power Supply for Computer for Maintenance
- Size (L*W*H): 53mm*39mm*10mm(approx)
- Adopt industrial solid capacitor, ideal for being used in harsh environment
- High performance with high heat-stand feature, more reliableWithout fan for 100% mute working
- Compact design, special for mini-itx and 1U case
- Modules can reach 90W, and it must be accompanied by the power adapter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: Inputvoltage: +12V/DC( 11.4 - 12.6V )
DC input: 2.5 mm inner diameters, 5.5 mm outer diameter
Input Current: Max.
7.5A Output Power: 90W
Power Efficiency: > = 90%
Working temperature/humidity: 15 to 35 / 45%-75%
Reposition temperature//humidity: -40 to +70/ 10%-90%
Atmospheric pressure: 86Kpa106Kpa
Applications: MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc. Output voltage Min (V) Max (V) Ripple (mV) Standby current Light load Maximum load + 3.30V + 3.14 + 3.3 50MAX 0 0 4.0 + 5.00VSB + 4.75 +5 50MAX 0.1 0 2.0 + 5.00V + 4.75 +5 50MAX 0 0 4.0 +12. 00V +11. 40 +12 120MAX 0 0 4.0 -12. 00V -11. 40 -12. 60 120MAX 0 0 0.1

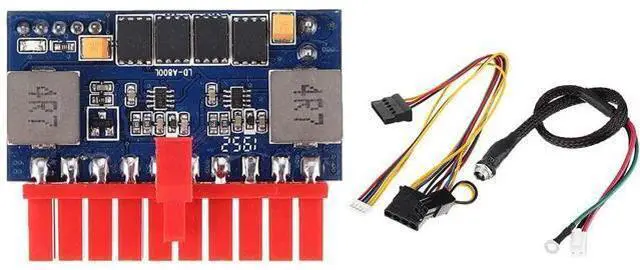

Package includes: 1 x DC-ATX 90W Module (with cable)
How to use: (the main board is not includes) If you have any questions, please contact me
