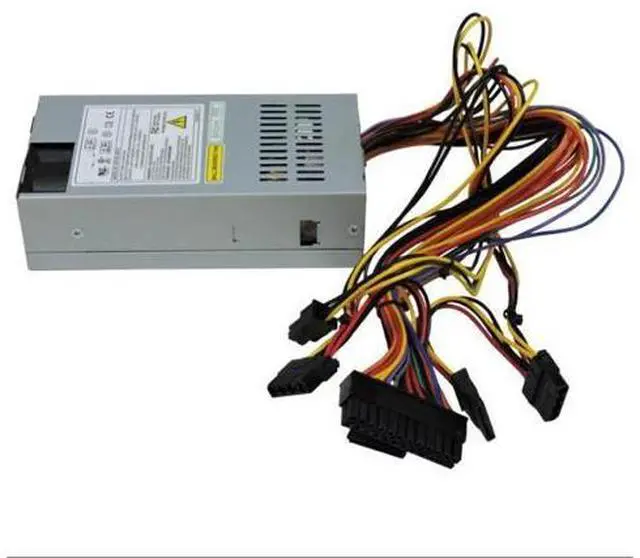

270W 1U Power Supply FLEX HTPC NAS POS Cash Register FSP270-60LE 270W Mini ITX 1U Server Power Supply PSU Flex ATX Shuttle 24Pin

Approvals: see below 80
PLUS Certification: Other
Certification Output: see below
Application: Server
Interface Type: 20 + 4Pin
CPU Power Connector: 4 pin Number of
SATA Ports: 2
Rating Power: 251W - 300W
Package: Yes
PFC Type: Active
D-type Bus Number: 2
Model Number: FSP270-60LE
Modular: Non-Modular
Input Voltage: 184-264V Graphics Card 12V
Pin Number: 0 270W Flex-ATX 1U Power Supply FLEX HTPC NAS FSP270-60LE 270W Mini ITX 1U Server Power Supply PSU Flex ATX Shuttle 24Pin
Part/Model Number: FSP270-60LE / 9PA2700725
Warranty: 1 Year Warrenty Item details/specification.
GENERAL SPECIFICATIONS: Specific
Part Code: 9PA2700725 COOLING
Fan (s): Single, 40mm ball-bearing fan linked with
Thermal Sensor TOTAL OUTPUT POWER: 270-WATT TOTAL CONTINUOUS OUTPUT @ 30°C
OUTPUT CONNECTORS: Main 20+4 Pin ATX*1+4PIN*1+SATA*2 +IDE*2
SAFETY APPROVAL: UL, CSA, IEC, CE, TUV/VDE, NEMKO
MBTF: 100, 000 HOURS @
TYPICAL UNIT SIZE: 80.0 mm (W) X 150.0 mm (D) X 40.0 mm (H)
INPUT SPECIFICATIONS: Input
Voltage: 115V AC to 230V AC, 47 ~ 63Hz
Power Factor Correction (PFC): ACTIVE PFC | FULL RANGE
Input Current: 5.0A @ 115 Vrms, 60 Hz. | 3.0A @ 230 Vrms, 50 Hz.
OUTPUT SPECIFICATIONS: +12V
RAILS: 2
Output Voltage: + 3.3V DC, +5V DC, +12V1 DC, +12V2 DC, -12V DC, +5Vsb DC (Standby),
Output Current: 16.0A @ + 3.3V DC, 18.0A @ +5V DC, 16.0A @ +12V1 DC, 10.0A @ +12V2 DC, 0.8A @ -12V DC, 2.5A @ +5Vsb DC Standby
