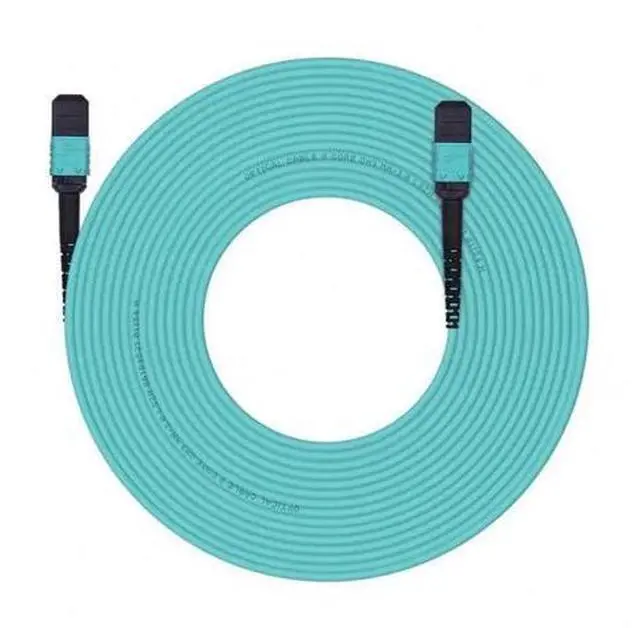

FTTH Fiber Connecters Mpo Om3 Fiber Optic Mpo Patch Cable 12 Cores Mpo Fiber Patch Cord Simplex Mode

Product Description Features: 1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules. 2.3D interferometer provides verification of MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards. 3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies. 4. All kinds mpo for choice like SENKON, NISSIN, USCONEC.
MTP products Standard: -Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE compliant -Structured cabling per TIA-568-C -Parallel Optics --Optical Internetworking Forum (OIF) Compliant --InfiniBand Compliant -InfiniBand -- 10G Fiber Channel Compliant -- 40G and 100G IEEE 802.3 -- QSFP Specification. Connector A MPO female Connector B MPO female Fibre Category OM3 Fiber Count 12 Fiber Typesimplex Wavelength 850nm/1310nm Cable Jacket 3.0 mm LSZH Polarity B (or A, C) Insertion loss, max. 0.35 dB Return Loss, Min. 55dB Cable Length 20m or customized Durability 500 times Min. Bend Radius Installation 29 mm Min. Bend Radius Operation 15 mm Tensile strength 400 N Crush resistance (Reversible) 750 N/10 cm
