PCI-E Internal TV Tuner Card MPEG Video DVR Capture Recorder PAL BG PAL I NTSC SECAM PC PCI-E Multimedia Card Remote

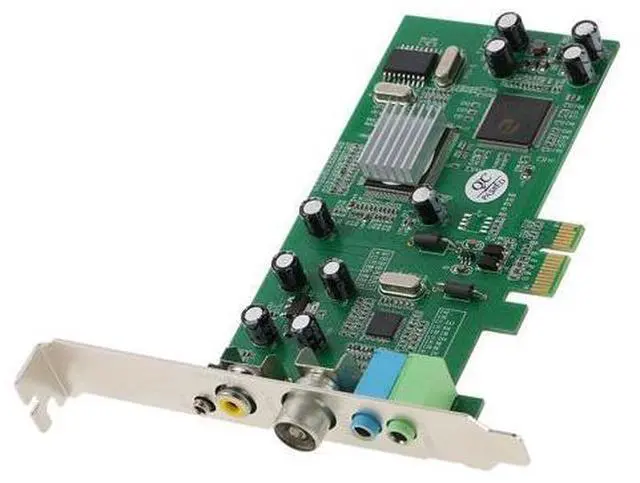

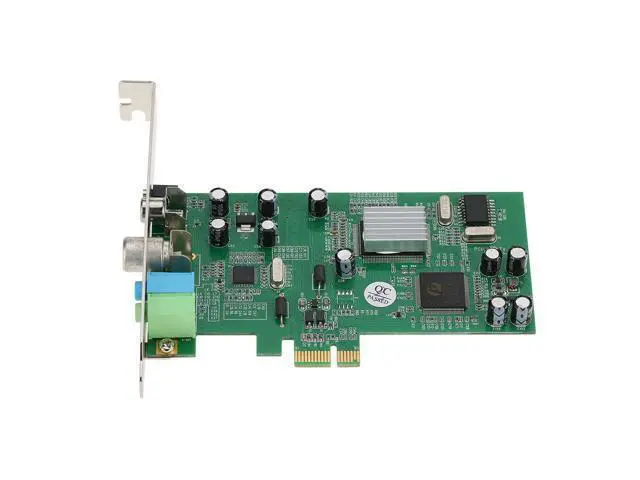

This multifunctional TV tuner card is an ideal solution to expand your desktop PCI-E with TV function and video recorder. It transforms your desktop PC into a full-featured multimedia station with video / audio / radio input for all regions and countries. It has an universal built-in TV tuner to decode either analog basic cable channels or UHF/VHF aerial/closed-circuit channels for all countries around the world, world universal. It is also a cost efficient solution for decoding RF modulated signals from set top boxes, satellite receiver, DVR into digital MPEG format for viewing or recording through desktop PC.

Audio output to sound card or speaker. R/M port is for remote control Video recorder, TV functions and planner YUV data format supported Favorite channel list and channel rename supported and full-featured remote control included Multi-input source, include composite Video In and Audio line in/out for external device input such as VCR / VCD / DVD / Camcoder Supports 16:9 and 4:3 ratio for the sub video window size Wide compatibility, universal compatible for Win 7 / SE / ME / 2000 / XP / Vista / Win 98
Specification:
Material: Metal TV tuner system
Support: NTSC, PAL B/G/D/K/H/I, PAL-M, PAL-N
RF decoding range: Analog NTSC cable and broadcast UHF/VHF TV channel frequencies from 55.25 to 855.25 MHz Video input system
Support: NTSC, PAL and SECAM
Video capture resolution: 720 * 480 pixels @30fps for NTSC or 720 * 576 pixels @25fps for PAL/SECAM system

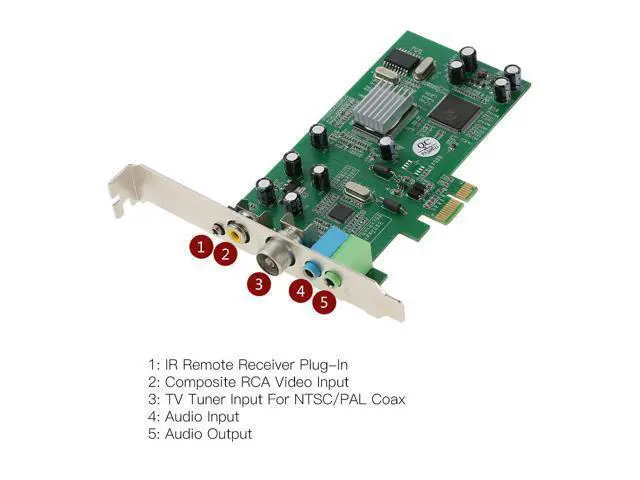

Audio/Video inputs: RF CATV coax Input via F-type connector * 1 Composite RCA input * 1 for video 3.5 mm mini port * 1 for audio input from RCA video device 3.5 mm mini port * 1 for audio output to sound card or speakers
Video recording format: MPEG1, MPEG2, VCD, SVCD, DVD
Snap shot image format: BMP, JPG
Video color element control: Adjustable video color elements for picture brightness, contrast, saturation, hue.

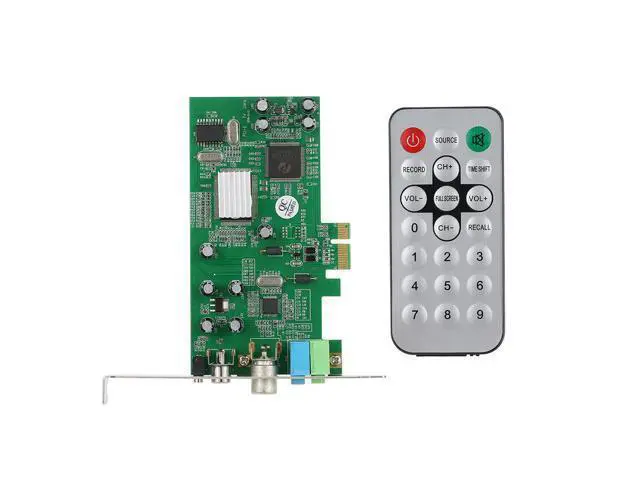

Operation: Full-function 29-key IR remote controller or control panel from TVR software
Item size: 13.3 * 12 * 1.9 cm / 5.2 * 4.7 * 0.7 in (L * W *
H) Item weight: Approx. 101g / 3.6 oz
Package size: 22 * 15.2 * 6cm / 8.7 * 6 * 2.4 in (L * W * H)
Package weight: 224g / 7.9 oz
System Requirements:
CPU: Intel Pentium III 900 MHz or higher and compatible computer
Operating system: for Win 7 / SE / ME / 2000 / XP / Vista / Win 98 SVGA support higher than 640 * 480 / Hi-color Sound card support for audio mix functions Cable / VHF / UHF antenna A free PCI-E bus
Package list: 1 * All-in-one TV Tuner Card 1 * IR Remote Controller 1 * IR Remote Receiver Wire 1 * 3.5 mm Audio Cable 1 * Driver CD with TVR
Software Note: The package list without user manual. This is an analog TV tuner card so it does not support antenna hookup for digital broadcast channels over the air.
