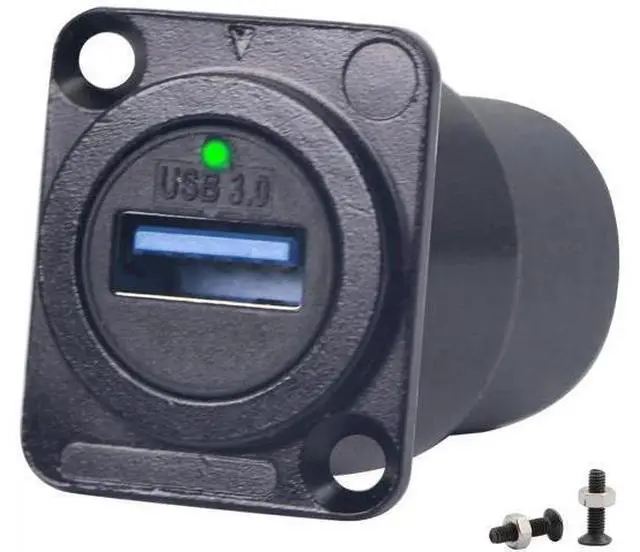

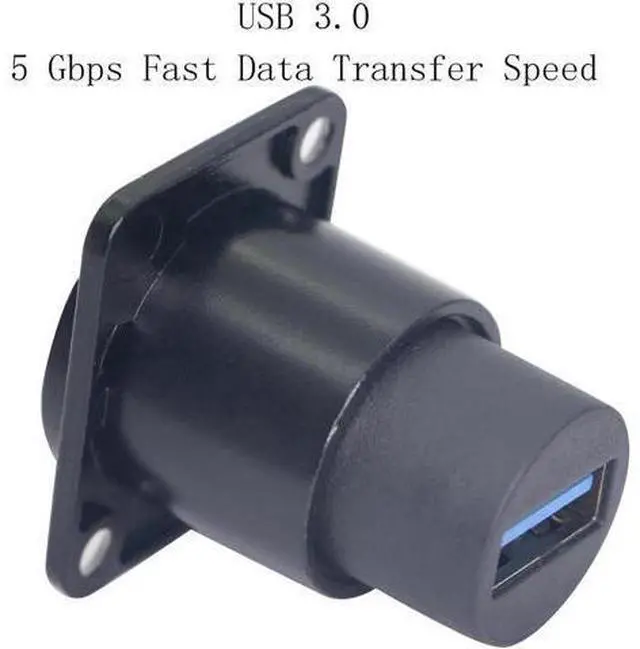

USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

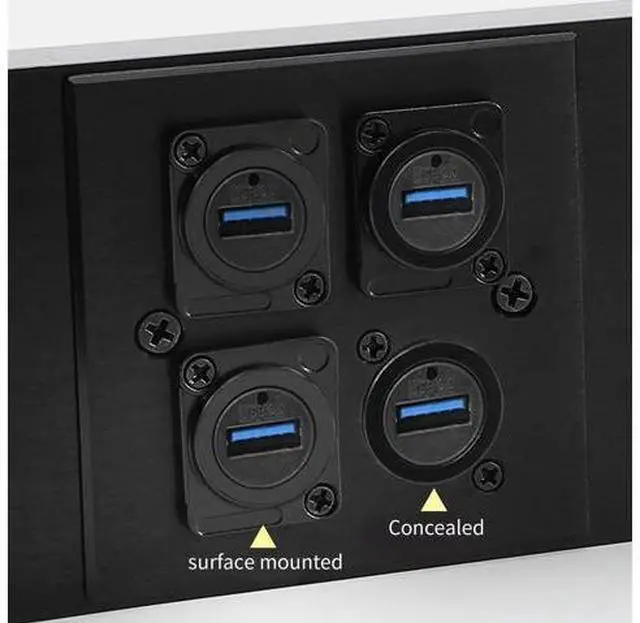

- [USB3.0 Connector]:USB 3.0 panel mount socket provides a more stable and super speed transmission environment for data in the electronic information environment.; [USB 3.0 Port Female to Female Converter]:Optional front panel mounting and rear panel mounting.; [Wide Compatibility]:USB 3.0 is compatible with USB3.0 / 2.0.; [LED Display]:The LED light also makes it quick and easy to find the USB socket in the dark or at night.; [In-line D-through Type]:Easy to Install,The screws that need to be installed are provided with the product, ensure safe and stable,no need soldering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
It is widely used in audio, video and photoelectric networks. Its base design is based on industrial standard panel apertures.
Type: Connectors.
Interface: USB 3.0.
Color: Black. In-line D-through data connector, ensure safe and stable.
Electrical parameters Contact resistance: <10M Dielectric strength: DC1kV Frequency range: 1-100MHz Insulation resistance:> 0.5G
Rated current: 1.5A
Rated voltage: 50V Mechanical parameters
Insertion pressure: 10
N Withdrawal pressure: 10 N
Service life: > 1000 times

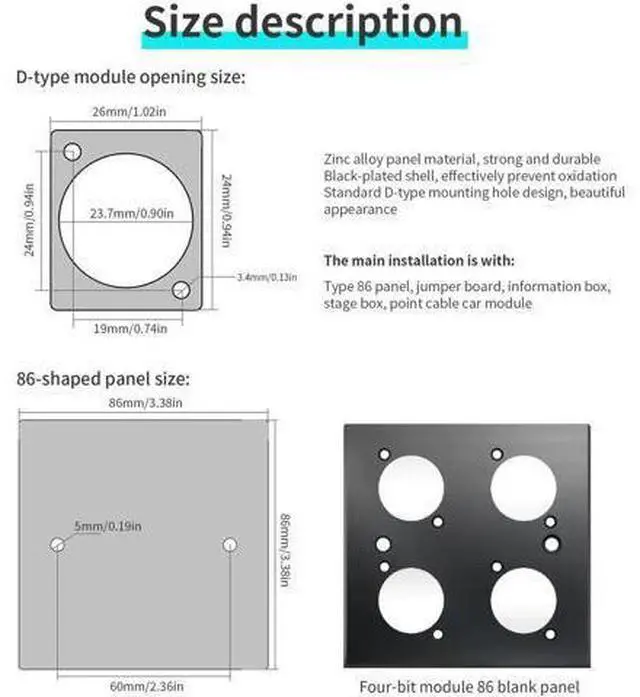

Base shape: D type
Material Contact plating: 7µm Au over Ni plating
Insulator: PBTP 15%
GR Panel: Zinc diecast (ZnAl4Cu1)
Package: 1 x USB 3.0 socket; 2 x screws.
Type: Connectors.
Interface: USB 3.0.
Color: Black. In-line D-through data connector, ensure safe and stable.
Electrical parameters Contact resistance: <10M Dielectric strength: DC1kV Frequency range: 1-100MHz Insulation resistance:> 0.5G
Rated current: 1.5A
Rated voltage: 50V Mechanical parameters
Insertion pressure: 10
N Withdrawal pressure: 10 N
Service life: > 1000 times
Base shape: D type
Material Contact plating: 7µm Au over Ni plating
Insulator: PBTP 15%
GR Panel: Zinc diecast (ZnAl4Cu1)
Package: 1 x USB 3.0 socket; 2 x screws.
