PCIe X1 to M.2(NGFF) + SATA 6G (HDD/SSD) with Standard Profile Bracket,ASM1061 Chipset PCI-Express to B Key M.2 SATA SSD 2280 2260 2242 2230 w/ SATA III Port
Limited time offer, ends 06/14 By NovaStar Tech

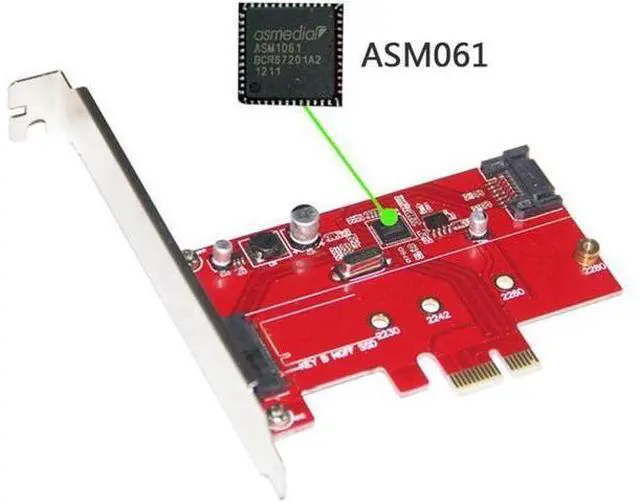

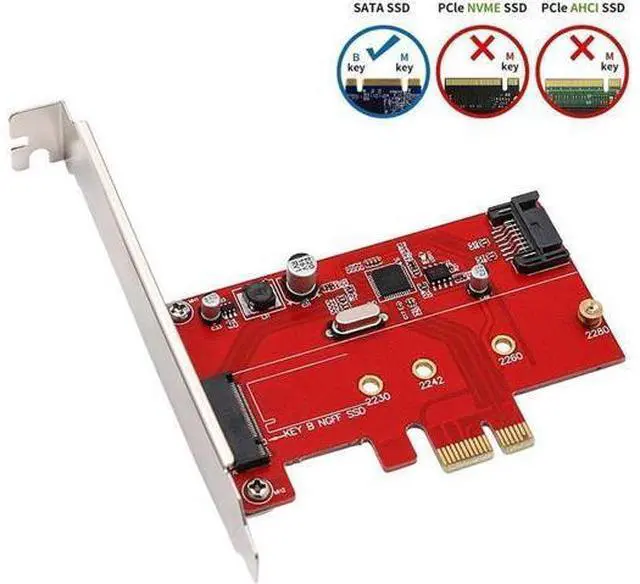

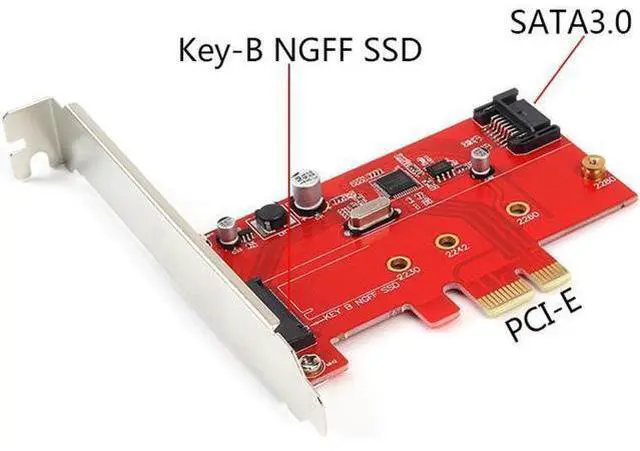

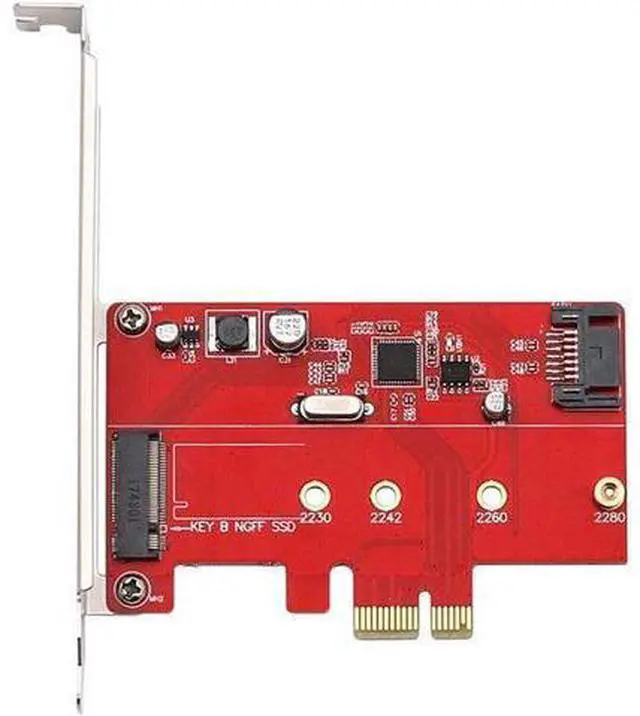

- PCIe X1 to M.2 NGFF + SATA III Port; Simultaneously Connect M.2 SSD and SATA HDD or CD Drive; Support B key & B+M Key M.2 SATA SSD; Does not support NVMe M.2 SSD; ASM1061 Chipset
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features M. 2 Specification Revision 0.9 Serial ATA Specification Revision 3.2 Supports M. 2 B Key and B+ M key Card Type Support M.
2 card size: 22*30 22*42 22*60 22*80 Built with ASM1061 Chipset Simultaneously Connect M. 2 SSD and SATA HDD or CD Drive, Maximum 6Gbps Hot Swap Compatible with SATA I, II, III NCQ Supported Specification PCIe - PCIe-X1, support PCIE X2, X4, X8, X16 Output interface - M. 2 SATA SSD + SATA III OS - Windows10/8/7(32/64? )/ Vista(32/64? )/
XP/2003/2008/linux Note: M. 2 Port supports M. 2 (NGAFF) SATA SSD only, DOES NOT support NVMe M. 2 SSD The efficiency mainly depends on M. 2 (NGAFF) SSD master IC and the size of the capacity
2 card size: 22*30 22*42 22*60 22*80 Built with ASM1061 Chipset Simultaneously Connect M. 2 SSD and SATA HDD or CD Drive, Maximum 6Gbps Hot Swap Compatible with SATA I, II, III NCQ Supported Specification PCIe - PCIe-X1, support PCIE X2, X4, X8, X16 Output interface - M. 2 SATA SSD + SATA III OS - Windows10/8/7(32/64? )/ Vista(32/64? )/
XP/2003/2008/linux Note: M. 2 Port supports M. 2 (NGAFF) SATA SSD only, DOES NOT support NVMe M. 2 SSD The efficiency mainly depends on M. 2 (NGAFF) SSD master IC and the size of the capacity
