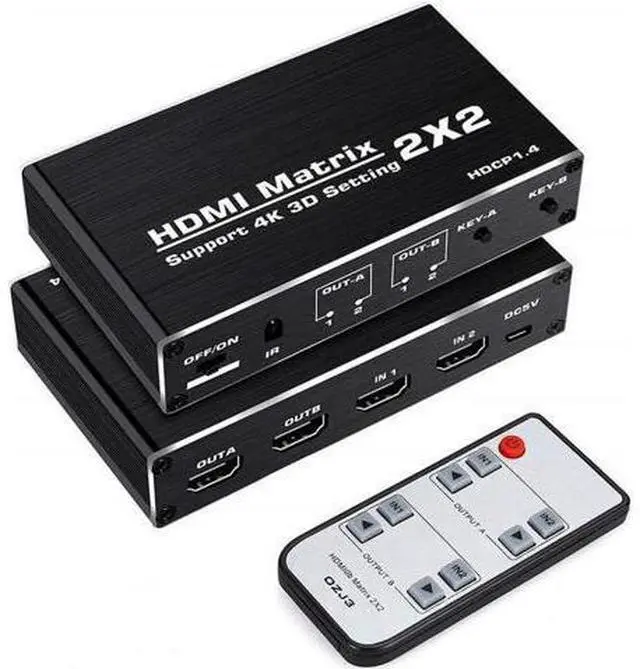

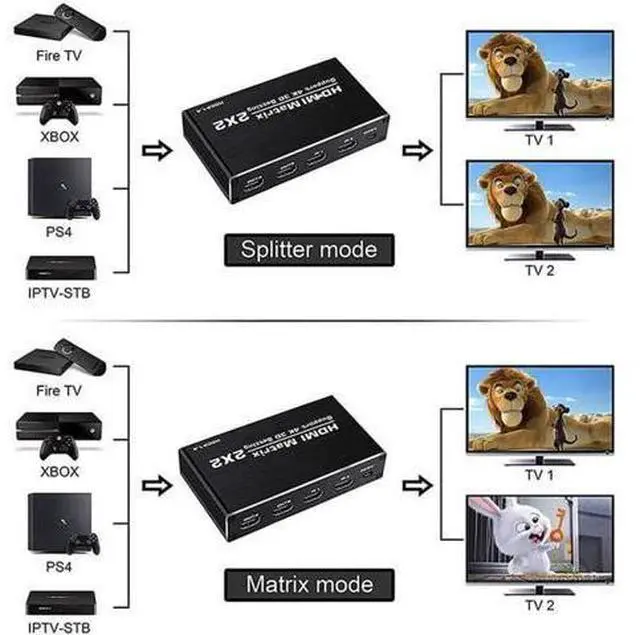

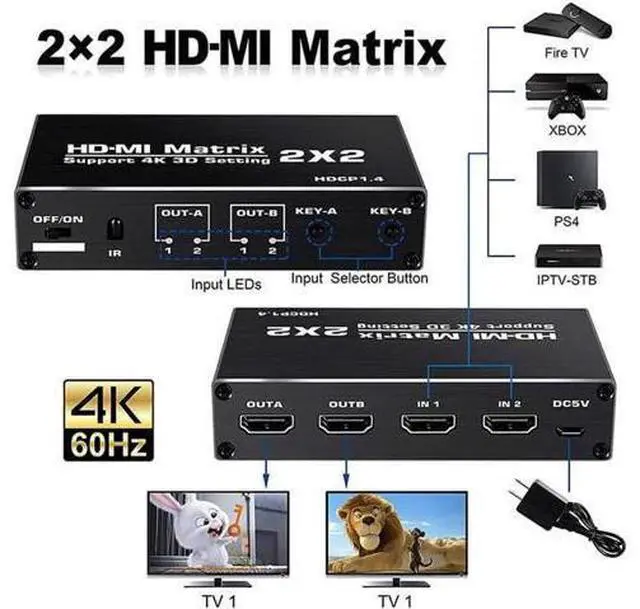

2x2 HDMI Matrix Switch is with 2 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 2 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It supports input and output resolutions up to 4Kx2K/60HZ
Specifications
- Product Type: HDMI Matrix 2x2.
- Interface Type: 2 HDMI in, 2 HDMI out -
Color: Black -
Power Supply: DC 5V.
- Max working current: 600mA - Operating Temperature range -15°C to+45°C Features - Support HDMI 2.0, HDCP 1.4 - Support 3D video format - Support highest resolution up to 3840*2160/60Hz - Support 18Gbps 3 data rate and tmds clock up to 600Mhz - Support deep color 8/10/12/24/32/48bit -
HDMI resolution: up to 3840*2160/60 Hz, YUV
4:2: 0 - 2 HDMI inputs switch and split to 2 HDMI displays - Support LPCM/Dolby/DTS LPCM 7.1 audio format
Features: 2×2 HDMI Matrix - High speed digital performance connection between two sources and two video displays simultaneously without any delay, flash screen. Support 4K@60Hz - HDMI switch splitter support display resolutions up to
YUV 4:2: 0, 4K@60Hz, 1080P, HDR for 2K, 3D, HDMI 2.0; HDCP 1.4 protocol compliant, High data rate of 18Gbps. PLEASE NOTE our this

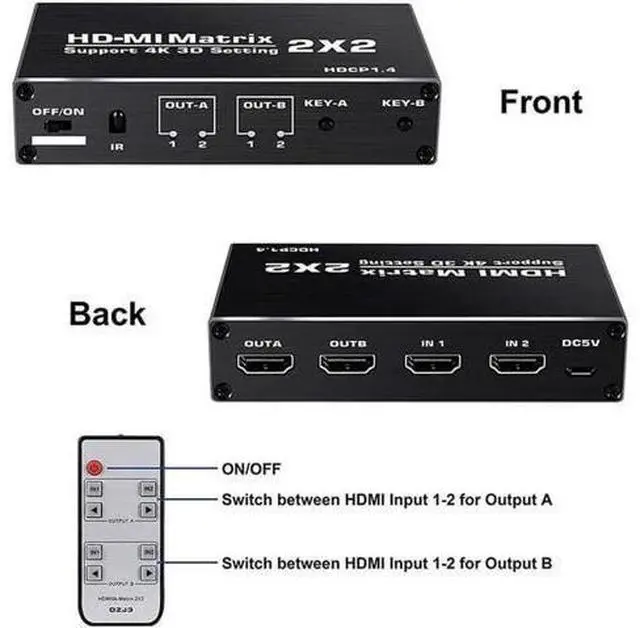

HDMI Switch NOT SUPPORT: HDCP 2.2 Wide Compatibility - This 4k HDMI Matrix Switch is suitable for most devices with standard HDMI interface. Supports LPCM 7.1, Dolby digital, DTS, DTS-HD, DSD and Dolby True HD Audio. Works with PC, projector, TV, PS3, PS4, XBox, Blue-ray, DVD, Monitors etc. Plug and Play - This HDMI switch is easy to setup and operate, just power it with AC adapter and connect your HDMI devices to enjoy! Simple press of a button or by remote to swap signal within 3seconds, and the LED Light tells you which port is active.
