HDMI KVM USB Extender 1080P 60Hz, HDMI KVM USB Extender Over Cat5/6 Ethernet Cable Signal Extension to 196FT/60M Support USB Keyboard Mouse Plug & Play (Transmitter and Receiver)

HDMI KVM Extender with POE & Loop Out 1080P HDMI USB Extender 60m No Loss RJ45 to HDMI Extender Transmitter Receiver over
Cat5e/Cat6 Description: HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Specifications

: Video
Standards: HDMI 1.4 b; HDCP 1.4 and DVI compliant
Maximum pixel clock: 300MHz
Maximum data rate: 10.2G bps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
Impedanc: 100ohm
USB Interface:
PC: Type B USB interface; connect to pc;
K/M: connect wired or wireless USB keyboard and mouse
USB signal: HID
Signal CAT Interface: RJ45/IEEE-568B

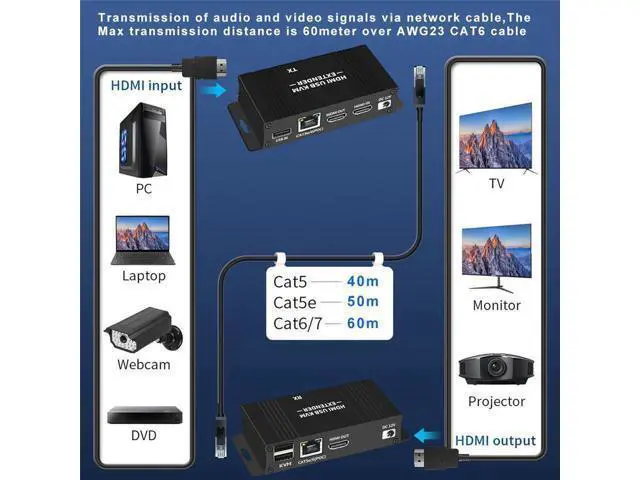

Transmission distance: CAT 5:40 m/131ft, CAT5e: 50m/164ft, CAT 6:60 m/196ft
Features: Long
range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3D, HDR;
Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;

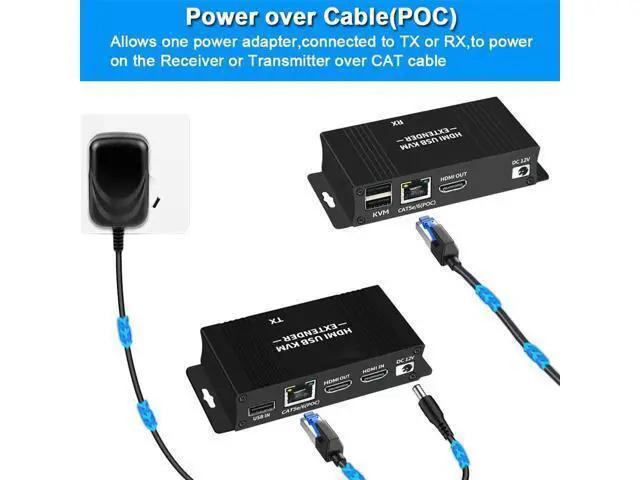

POC function: Power over CAT cable, only need one power adapter;

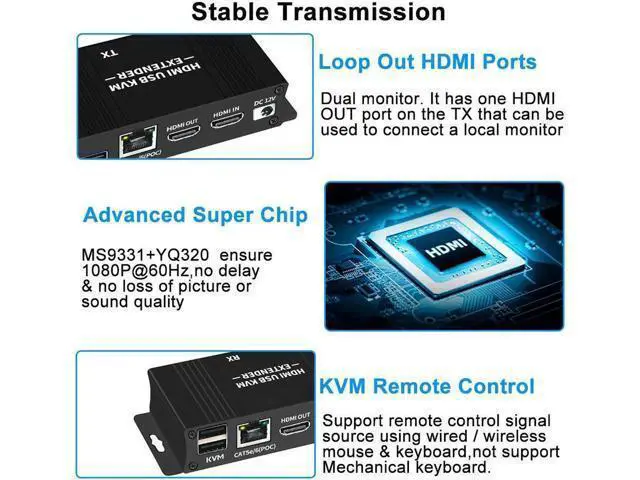

HDMI loop out function: The transmitter with one HDMI local loop out;
Uncompressed mode: ZERO Delay, No loss;
KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;
Male to male: one TX to one RX applicataion;
Video standard: compliance with HDMI 1.4 b and HDCP 1.4, and compliant DVI standard;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Note: the K/M USB port only support wired or wireless keyboard and mouse, not support Mechanical keyboard, USB camera, Scanner, USB flash driver, printer etc. For CAT cable, please you use AWG23 CAT5e/6 cable with IEEE-568B connection. HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Long range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;
Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3D, HDR;
Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;
HDMI loop out function: The transmitter with one HDMI local loop out;
KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;
Male to male: one TX to one RX applicataion;
Video standard: compliance with HDMI 1.4 b and HDCP 1.4, and compliant DVI standard;
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;
