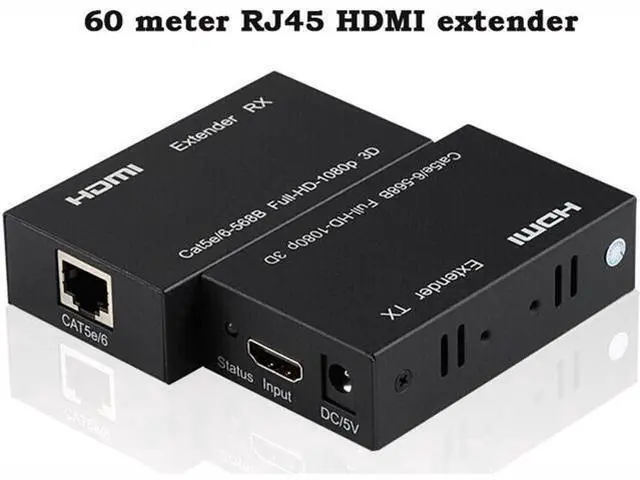

HDMI Extender, 196ft/60m HDMI Extender (Tx + Rx) Via Single RJ45 Cat6 Ethernet Cable Transmit Up to 60M, Support 1080p, 3D, HDCP, with EDID Function

The HDMI extender can use a CAT5/6 cable to transmit the HDMI signal to a display no more than 196ft.
Specification: Support
resolution: 3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max transmission bandwidth: 1.65G bps Input/Output
HDMI cable distance: 16ft (5m) AWG26 HDMI standard cable
Power adapter format:
Input: AC (50HZ, 60HZ) 100V-240V
Attetion:
1. This HDMI ethernet extender can not work with ethernet router or switcher.
2. Your ethernet cable must follow standard IEEE-568B. Oxygen free copper CAT6 ethernet cable is recommended because the quality of ethernet cable will effect the transmission distance and quality.
3. Maximun resolution of HDMI input supports 1920*1080P@60hz. Not support 4K HDMI.

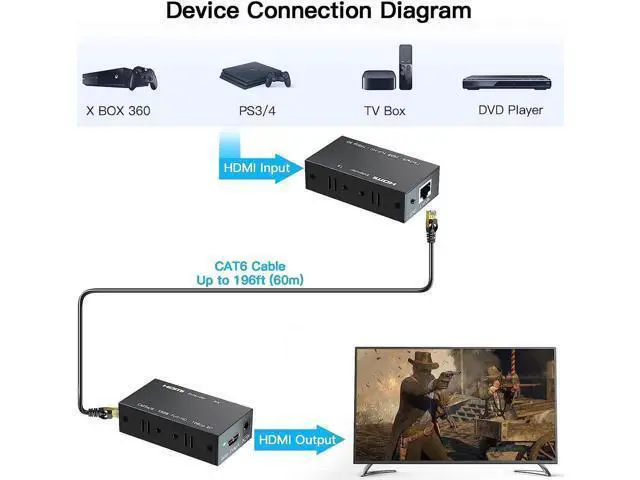

4. This HDMI to RJ45 and RJ45 to HDMI transmitter does not have IR function. EDID copy Connect the sender and the monitor with an HDMI cable. Connect the power and press the EDID button, indicator will flash 3 times. After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation. (Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings) Long distance Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender Our equipment supports 3D effects to give you an immersive experience

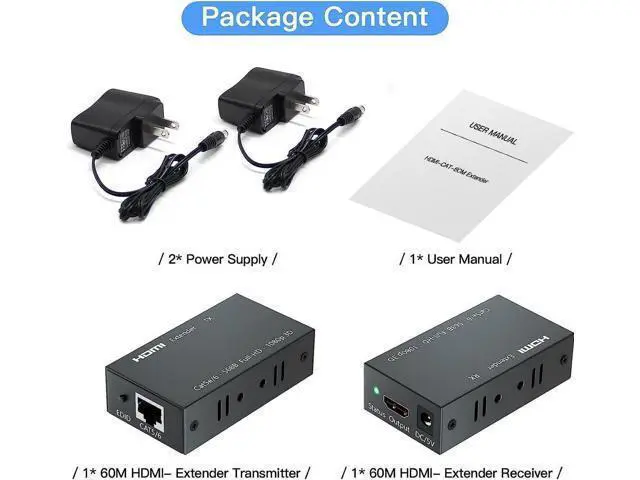

Note: Requires both your input and output to support 3D functionality Products include HDMI sender x 1 HDMI Receiver x 1 5V DC power supply x 2 User's Manual x 1 [Compressive Ability] Multiple protection, plug and play, no operating system restrictions, fire protection, anti-interference, high temperature resistance, strong pressure resistance. [Quality] High performance digital chip, ensure high fidelity signal restoration, using broadcast - level bandwidth balance transmission technology, strong anti-interference ability. [Image]1080P HD image quality, clear picture, professional technology to achieve the conversion and transmission of HD signal, presenting a good color space, so that the quality of the picture details lifelike. [Scenario]Various scenarios can be used for home theater, video conferencing, security monitoring and television broadcasting. The scope of application is wide.
