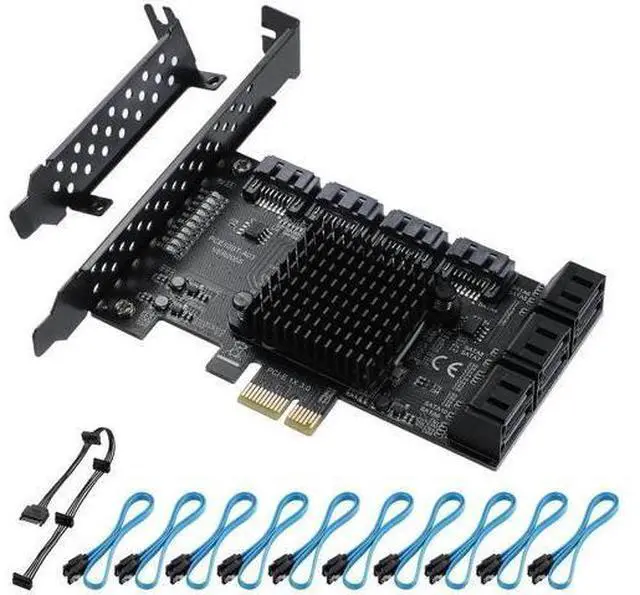

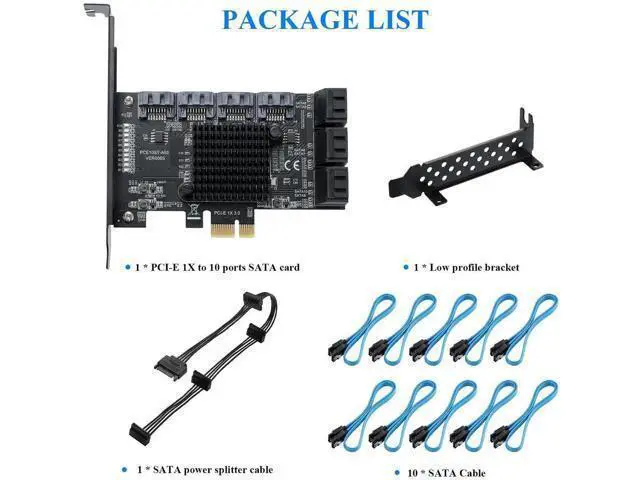

Vszerda PCIE 1X SATA Card 10 Ports,6 Gbps SATA 3.0 Controller PCIe Expansion Card,Non-Raid,Support 10 SATA 3.0 Devices,with Low Profile Bracket and 10 SATA CablesChip:ASM1166

Product name: 10-port SATA 3.0 expansion card
Product interface: PCI-E1X

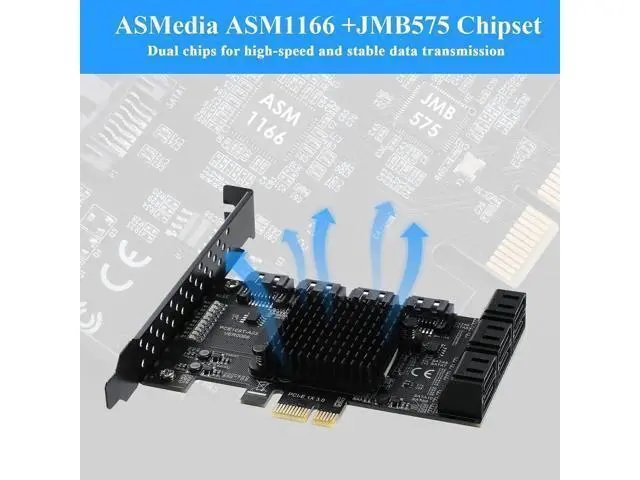

Product chip: ASM1166

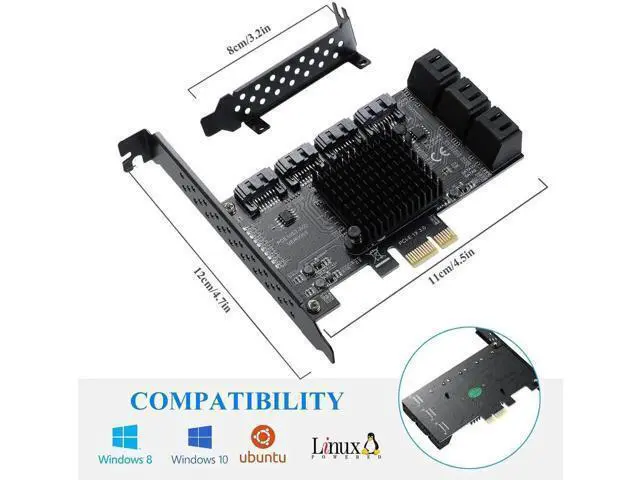

Support system: Windows 8 / Windows10 / Ubuntu /Linux. (Synology can only recognize 4 hard drives; WIN7 users are not recommended to buy)

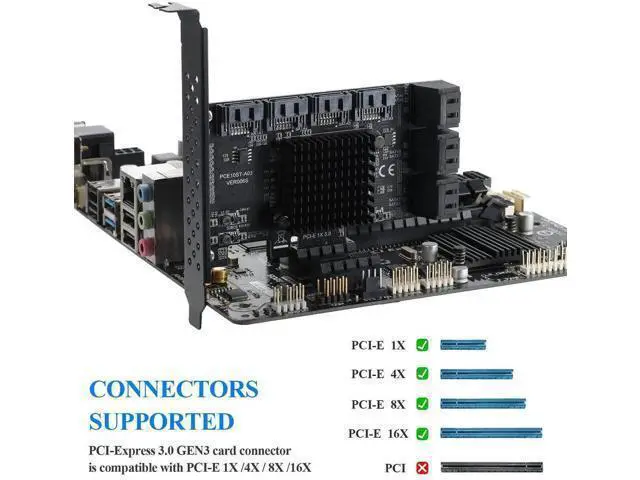

Specification: Comply with Serial ATA 3.0 specification, backward compatible with SATA 2.0 / SATA 1.0 Comply with PCI-Express v 3.0 specification and backward compatible with PCI-Express v 2.0 / 1.0. Support 6.0G b/s, 3.0 Gbit/s and 1.5 Gbit/s Support hot swap. Compatible with SATA6G, 3G and 1.5G hard drives Motherboard applicable slot PCI-E 1X and above
Note: RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.
Speed description information:

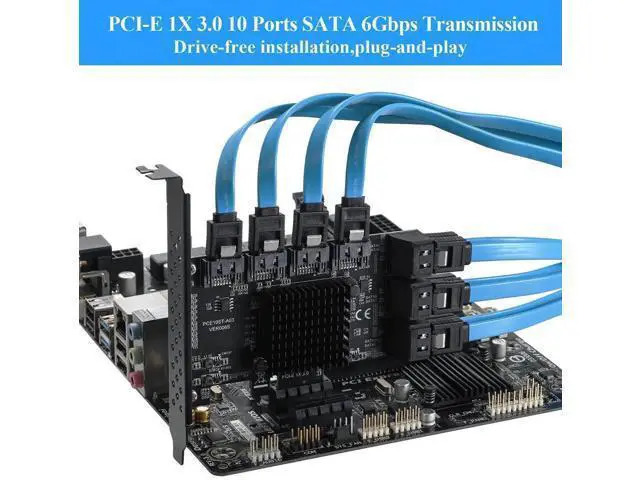

1. Use SATA 3.0 data cable to achieve the best results. (We recommend using this SATA 3.0 card in the PCIE 3.0 slot to get the fastest speed. ) 2. PCI-E requires a slot above V 2.0. For V 1.0, the speed will not exceed 250M.
3.
Motherboard BOIS setting: SATA mode should be changed to AHCI. Although some motherboards are PCIE 2.0 version, BOIS does not enable gen2 high-speed mode by default and needs to be turned on manually. The fastest speed of PCI-E 2.0 is 380-450 m/s. Different computer configurations and SATA SSDs have different speeds. If the detection is incomplete or unstable, please contact us to send the driver.
