FEELWORLD FRM1001G Dual 10.1 Inch 4RU 12G SDI Rackmount Monitor with Waveform Vector Histogram False Color 3D LUT Ethernet Remote Control Tally for OB Van/Studio Production

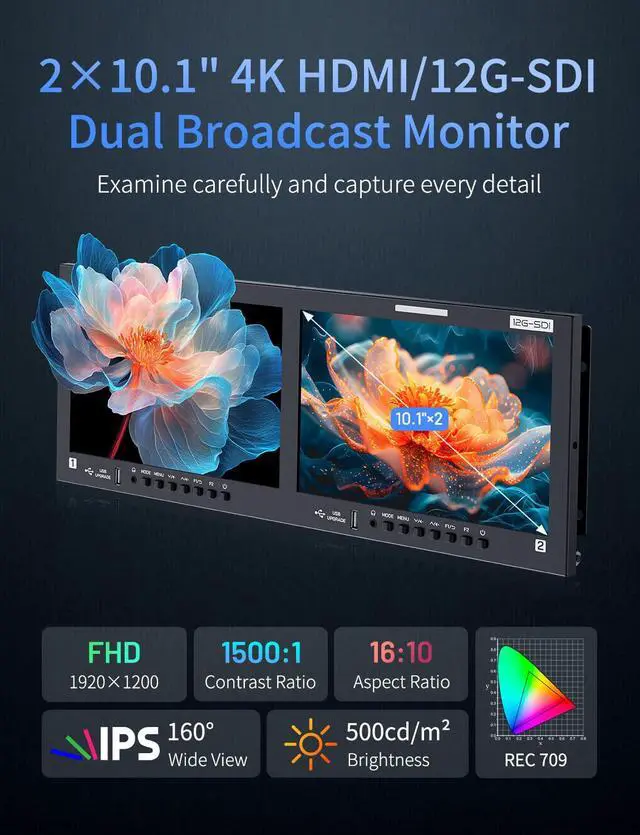

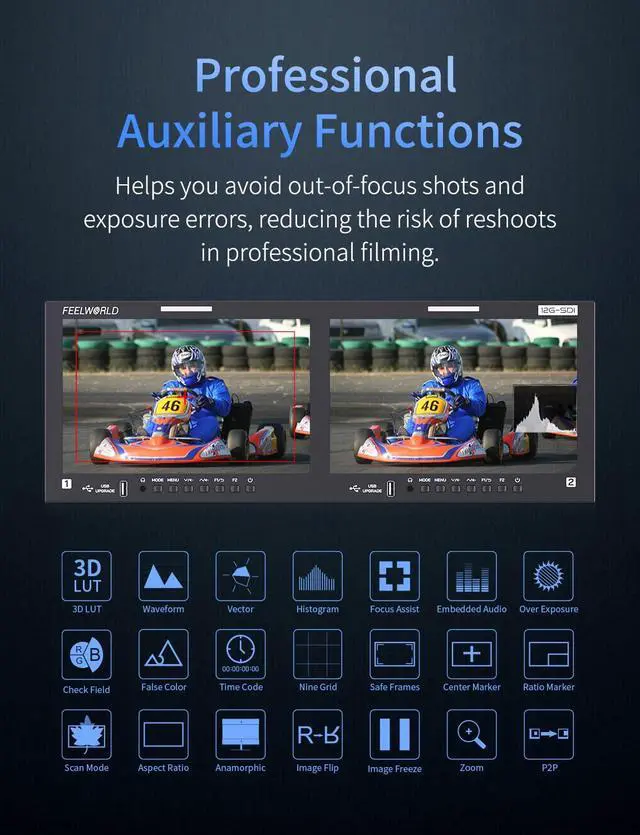

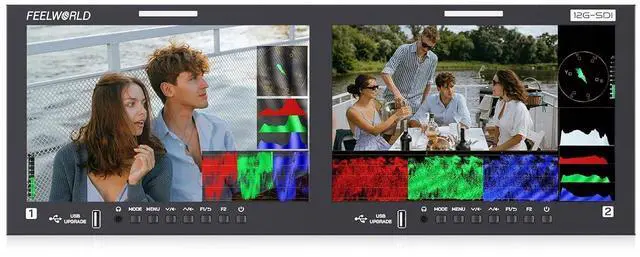

Professional Dual-Screen Rack-Mount MonitorThe FEELWORLD FRM1001G is a 10.1 -inch dual-screen 12G-SDI 4RU rack-mount monitor. Each screen features an IPS LCD panel with a resolution of 1920x1200, a brightness of 500 cd/m², a contrast ratio of 1500:1, and supports 16:10 aspect ratio. The left and right screens can be controlled independently, making it ideal for integration into broadcast-grade rack systems.; Full-Featured Waveform Analysis and Exposure AssistanceBuilt-in waveform monitors (RGB/YUV/Y modes), vector scopes, histograms (RGB1/RGB2/Y), focus assist (adjustable peak levels 110), false color, overexposure indicators (10%100% threshold), embedded audio level meters (turns yellow at -20 dB, red at -9 dB), and timecode (LTC/VITC).

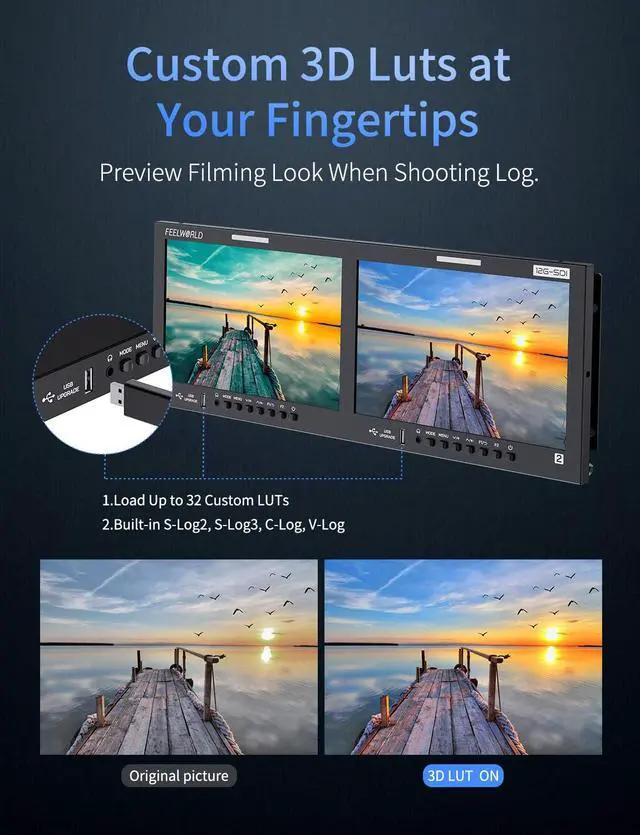

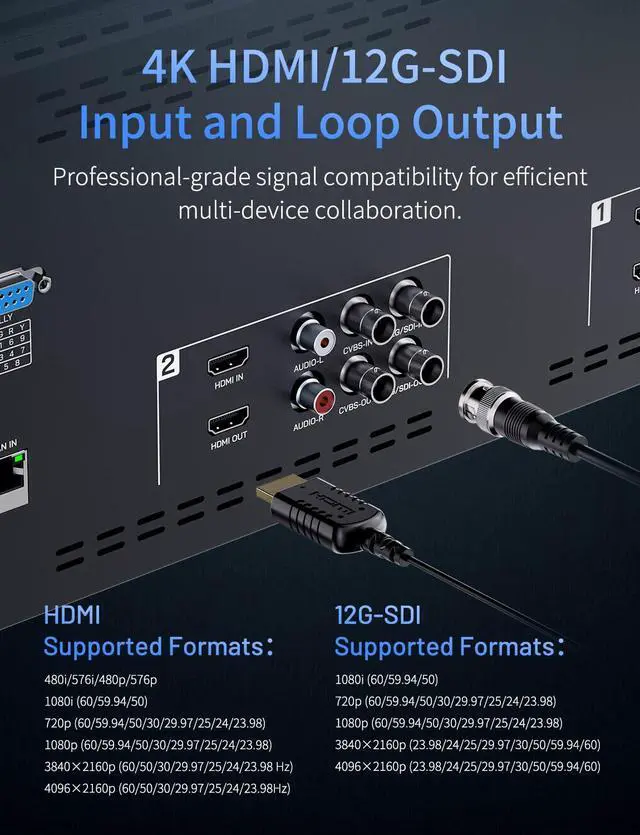

Helps cameramen and video engineers accurately assess exposure, color saturation, and focus, reducing the need for costly post-production corrections.; 12G-SDI 4K Input/Output and Multi-Signal CompatibilitySupports single-link 12G-SDI 4K signals (up to 4096×2160p at 60Hz), while also providing HDMI input/output and CVBS composite video input/output. It can connect to broadcast-grade cameras, switchers, recorders, and other equipment, and loop out signals to other monitors. Compatible with PAL/NTSC auto-detection, meeting the high-bandwidth demands of on-site production and OB vans.; User 3D LUT Loading and Color ManagementSupports Log to REC.

709 conversion (built-in SLOG2/3, LOGC, VLOG) and allows importing up to 32. cube format 3D LUTs (sizes including 17/33/64/65) via USB to achieve custom color styles or calibration. Two customizable front-panel shortcut keys (F1/F2) allow one-click access to common functions such as waveforms, false color, and markers, improving operational efficiency.; Remote Control and Flexible Power SupplyConnect to PC software via the Ethernet
LAN port (username: admin, password: 123456) to remotely adjust menus and parameters, ideal for deep-rack or centralized control scenarios.

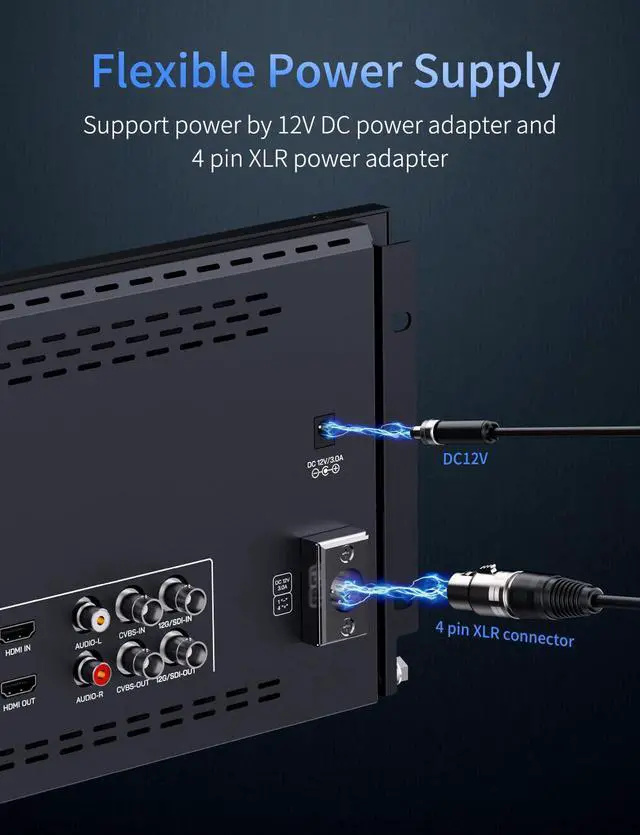

Dual power inputs: DC 5.5 × 2.1 mm connector (924V) and 4-pin XLR connector (924V).; Package Include 1× Monitor, 1× 3A Power Adapter, 1× Tally Kit, 1×Quick Start Guide
