ATEM173S 17.3 inch Multi Camera Broadcast Production Monitor with 3D LUT HDR Waveform HDMI 4X SDI Input Output Full HD 1920x1080 GPI Control Gynamic UMD
Limited time offer, ends 06/21 By Worryfree grocery store

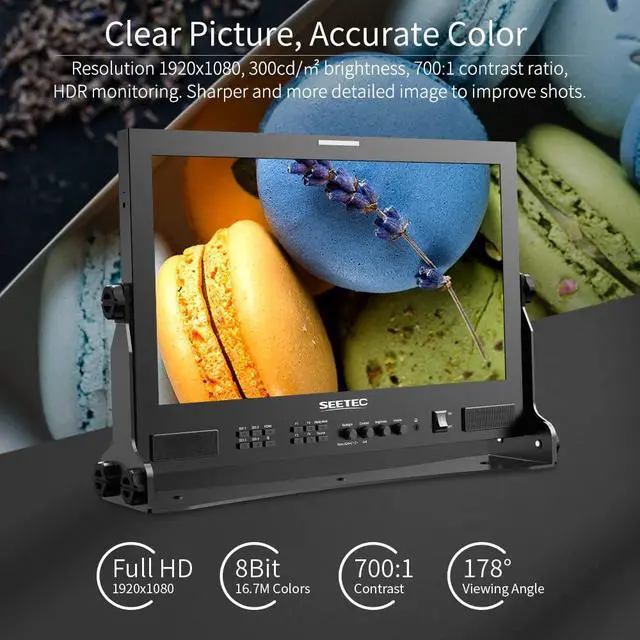

- Product description 17.33G-SDI/HDMI Broadcast Monitor SEETEC ATEM173S is a full HD broadcast monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. It supports VESA standard, and can be bracket-mounted or wall-mounted installation. It is an ideal monitor for live production, broadcast and post-production! SDI Support Format: 720p (60/59.94/50/30/29/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) 2048x1080i (60/59.94/50) 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) HDMI Support Format: 480i/576i/480p/576p 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) Functions *Focus Assist (Yellow, Red, Green, Blue, Whitefive colors optional highlight over parts of the image in focus) *Zebra (70IRE, 80IRE, 90IRE,user), Nine Grid *Monochrome (gray, red, green, blue), False Color *Timecode *Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user), Center Marker, Marker Mat(16:9, 16:10, 4:3, 1.85:1, 2.35:1) *All Waves (can be adjusted left or right), Parade(OFF, RGB Parade, Y, YUV Parade), Vector, Histogram, RGB Histogram *Audio Meter *HDR, 3
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

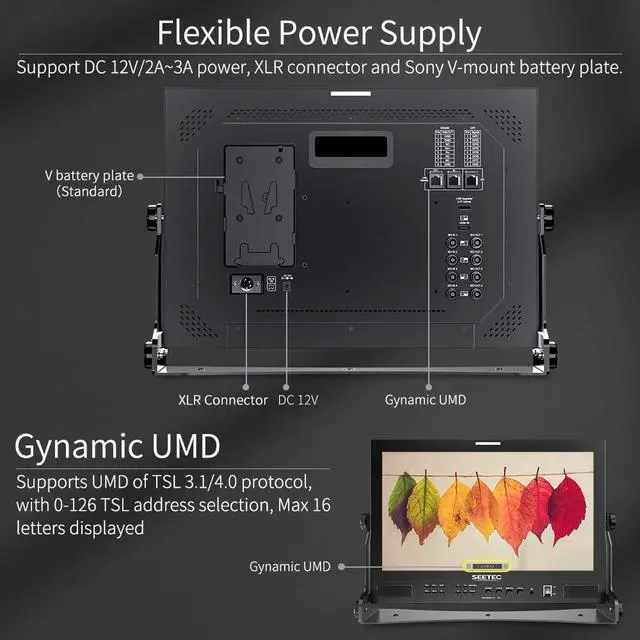

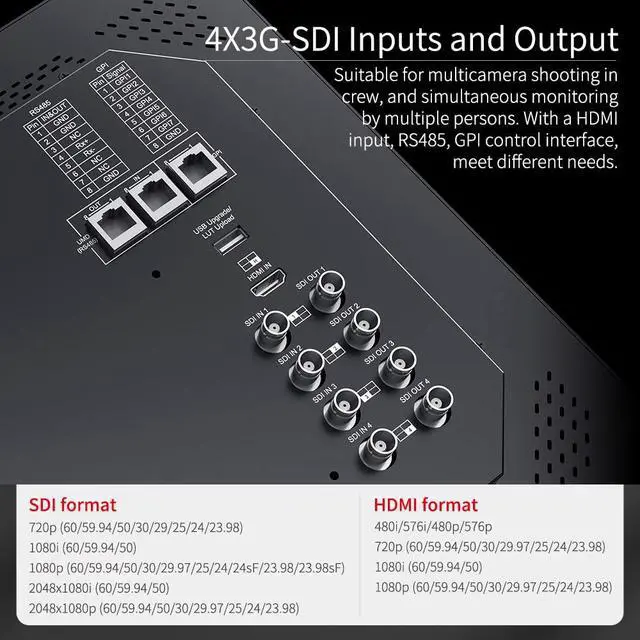

4XSDI In and OutIt comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons, also with a HDMI input, RS485, GPI control interface, meet different needs.; LUT, HDR, WaveformSupports up to load 36 custom LUTs, recreate Film Looks. HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. Accurate waveform monitoring.; Gynamic UMDSupports UMD of TSL 3.1 / 4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed.

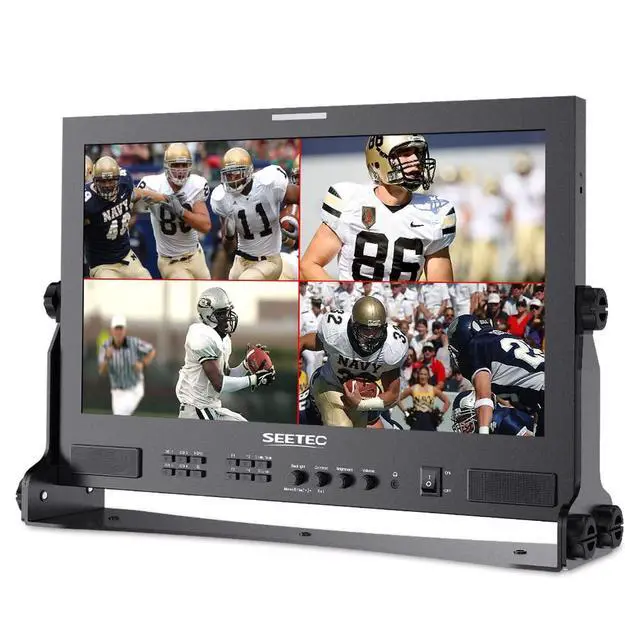

The UMD inputs via RS485 port and outputs via RS485 port.; Multiple Display and Tally LightsThe screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. GPI controls Red Tally and Green Tally, which can remind the photographer to enter the recording state.; Package Include1× Power Adapter, 1× SDI Cable, 1× Mini HDMI Cable, 1× V-mount Battery Plate, 1× Sunshade, 1× U-shape Bracket, 1× User Manual Manual
The UMD inputs via RS485 port and outputs via RS485 port.; Multiple Display and Tally LightsThe screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. GPI controls Red Tally and Green Tally, which can remind the photographer to enter the recording state.; Package Include1× Power Adapter, 1× SDI Cable, 1× Mini HDMI Cable, 1× V-mount Battery Plate, 1× Sunshade, 1× U-shape Bracket, 1× User Manual Manual
