    Wireless 2.4G RF 4 Zone Single Color Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with WB5 LM052 LM053 C01RF C02RF C01W C02W etc PWM Controller

    Be the first to review this product...

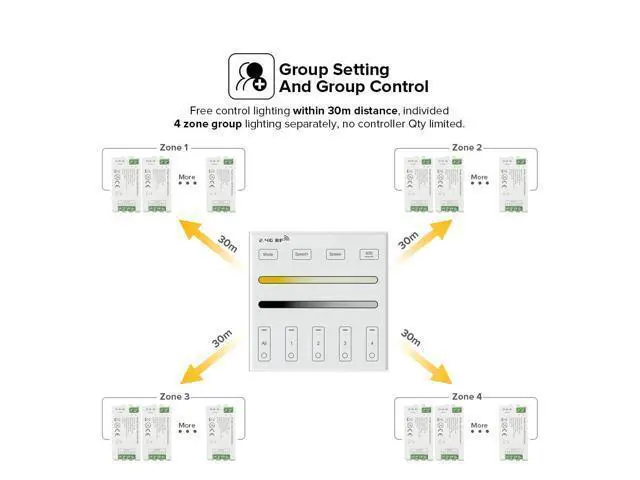

    • Matching controllerSingle color controller RF Remote.Match with C01RF,C02RF,C01W,C02W,WB5,LM052,LM053 Controller.Control FCOB COB 5630 5050 3014 5730 3528 etc monochrome 2 wires( V+ V-) PWM LED; 2.4GHz RF Wireless Transmitting,30 Meters(98 feet) Control Distance,that means you don't have to install it with lamps in the same circuit,don't have to change any electric circuit exist. Free installation,no wiring,more convinent and smart.; 4 Zones Control Separately:Each Zone Control Countless LED Strip Controllers. Each controller can match with 4 Remote at the same time.; Dimming 1%-100% the light randomly,Sensitive touching capacitive touch screen IC . 60 seconds delay OFF . Magnetic holder.High-end tempered glass panel.Touching button with sound .; Powered by 2pcs AAA batteries package doest not include.You don't have to make any change to your house electric circuit.Just charge it with 2pcs AAA batteries,install or paste it on the wall.Touching button with sound
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Product Parameters
    Product Name: 4 Zone Single Color or CCT Panel Remote
    Controller Model No: WR02RF
    Working Voltage: 3V (2*AAA Battery) (Package Not Including
    Battery )
    Transmitting: 6dBm
    Standby Power: 20uA
    Transmission Frequency: 2.4GH z
    Modulation Method: GFSK
    Control Distance: 30cm ( 98.42 ft)
    Working Temperature: -20-60°C
    Size: 86*86*19mm ( 33.86 * 33.86 * 7.5 in)

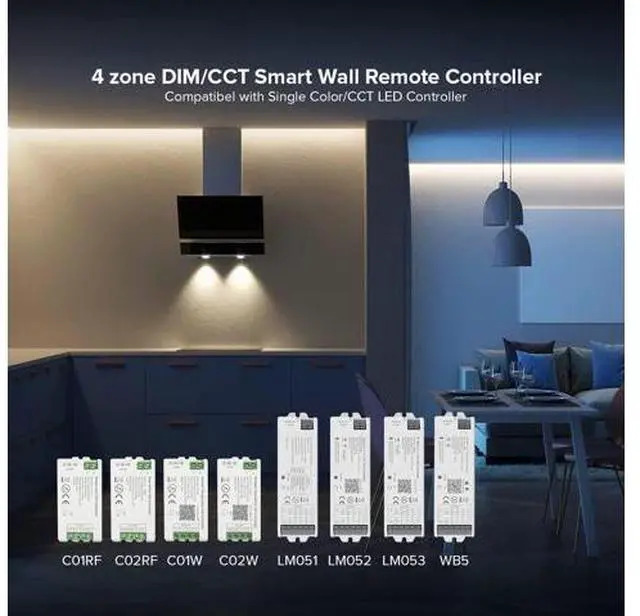

    Support Controller: C01RF, C01W, C02RF, C02W, WB5, LM052, LM053. Link /
    Unlink Link Instructions: Disconnect the LED controller from the power supply for 10 seconds and reconnect it. When the light on, short press any zone of " " 3 times within 3 seconds. The LED Strip blink 3 times slowly means the linking is successful.
    Note: Linking failed if light is not blinking slowly, Please follow above steps again(
    Note: Light that have linked cant link again).
    Unlinking Instructions: Disconnect the LED controller from the power supply for 10 seconds and reconnect it. When the light is on, short press the been connected " zone 5 times within 3 seconds. (Unlinking must be the same zone with the Linking) The LED strip blinks 10 times quickly means the unlinking is successful.
    Note: Unlinking failed if light is not blinking quickly, Please follow above steps again(
    Note: Light haven't linked that don't need to unlink).
    Attention: Please check the cable, and make the circuit is correct before when power on. When installation, please handle with the care to avoid the broken of the glass panel. Please don't use the lighting
