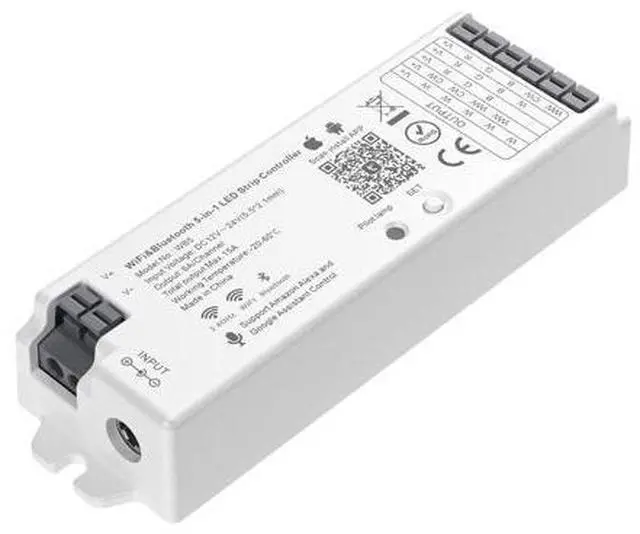

5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc
- 5 in 1 Tuya WiFi PWM ControllerWB5=C01W+C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT(Dual White), C03W=RGB, C04W=RGBW, C05W=RGB+CCT. This Controller supports PWM monochrome, CCT, RGB, RGBW, RGB + CCT, WW+CW LED strip. Switch mode by one setting button.; PWM LED TypeThe operating voltage range is DC12V-24V.Without IC chip PWM LED. Single color 2 wires, CCT 3 wires, RGB 4 wires, RGBW 5 wires, RGBCCT 6 wires. FCOB 5050 3528 5630 5730 3014SMD etc LED string strip bulb lamp. Power: 6A/Channel,Total output max 15A .DC12V 180W max. DC24V 360W max.; Not Compatible with Addressable LED StripsThis PWM 5-in-1 2.4GHz WiFi Controller (Model WB5) is not compatible with addressable LED strips.Such as: WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB WS2811 IC (Single Color/CCT/RGB)/FCOB WS2812 IC RGB/FCOB WS2814 IC RGBW, or any FCOB/SMD strips using these ICs (RGB/RGBW/RGBCCT). Please verify your strip type before purchase.; 3 control methods1st:Compatible 2.4GHz RF Remote: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2nd: Tuya Smart ,Smart Life APP 2.4GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control.Three methods can be used at the same time.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter Table Brand BTF-LIGHTING Model WB5 Product Name 5 IN 1 Tuya WiFi LED Controller Input Voltage DC12V-DC24V Controller voltage depends on LED strip Power 6A/Channel Total output max 15A. DC12V 180W max. DC24V 360W max. Wi-Fi 2.4GH z Wi-Fi Waterproof level IP30 Non-waterproof Operation temperature -4? ~140? (-20? ~+60? ) Ways of working Smart Life/Tuya Smart APP or Match with RF remote Support LED Types PWM FCOB COB 3014 5630 3528 2835 5050 Single color, CCT, RGB, RGBW, RGBCCT LED Strip Light Control Distance 30m ( 98.42 ft) Compatible RF Remote RC01RFB; RC02RFB; RC03RFB; RC04RFB; RFC05RFB Compatible RF Panel Remote WR01RF; WR02RF Previous page Next page 1 PWM vs SPI LED Diff 2 Product Detail 3 Connect Wire 4 Switch 5 Output Mode Previous page Next page 1 Monochrome LED Strip 2 CCT LED Strip 3 RGB LED Strip 4 RGBW LED Strip 5 RGBCCT LED Strip Previous page Next page 1 Multi-control Method 2 Phone Remote Control 3 Compatible RF Remote 4 Group Control 5 System Wire Diagram Enjoy Technical Family to be Super Technical Expert Previous page Next page 2PIN ~ 6PIN LED Controller 2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0
Controller Working Voltage: DC5V/ DC12V/ DC24V Only Indoor Use Previous page BTF US Official Store BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the. The shop mainly deals in LED Controllers, Accessories, Dream Color LED strips, FCOB LED strips, LED matrix, power supplies. Committed to building a smart home, through different
Controller Working Voltage: DC5V/ DC12V/ DC24V Only Indoor Use Previous page BTF US Official Store BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the. The shop mainly deals in LED Controllers, Accessories, Dream Color LED strips, FCOB LED strips, LED matrix, power supplies. Committed to building a smart home, through different
