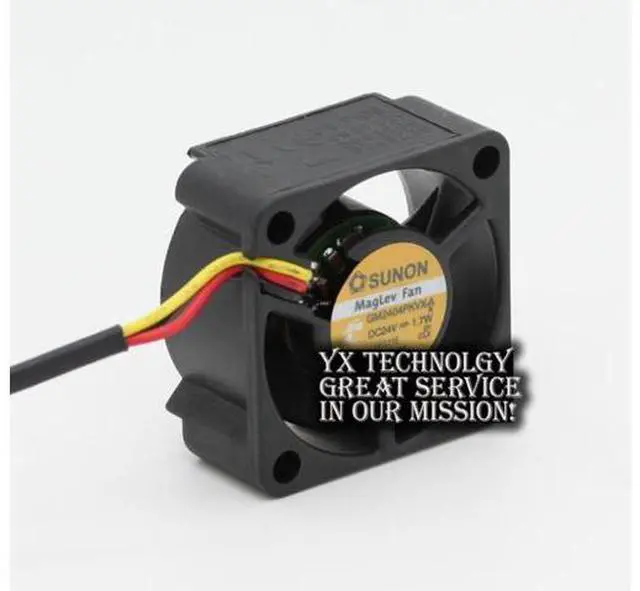

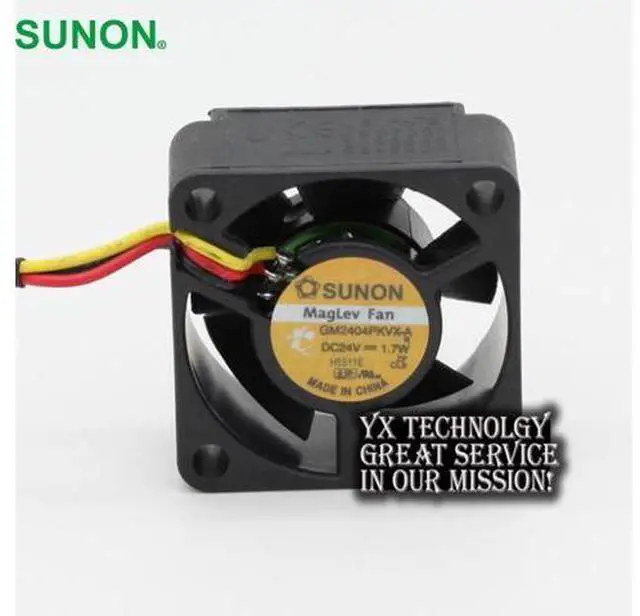

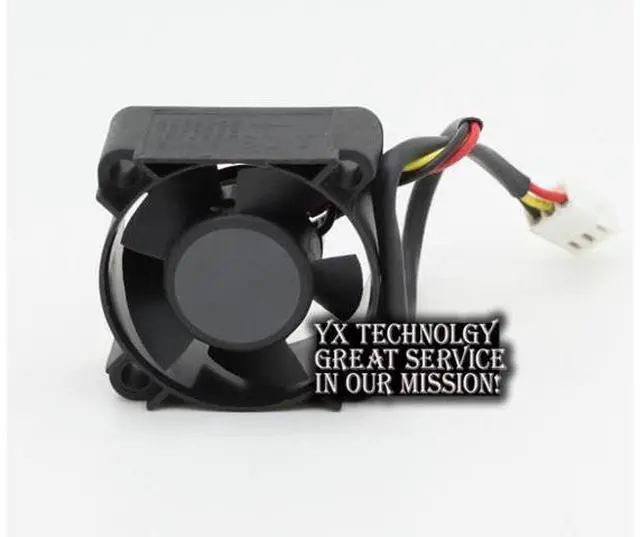

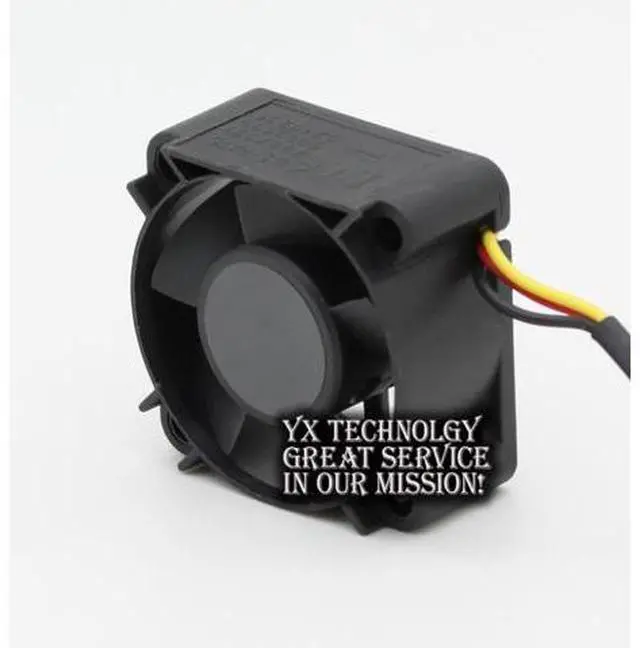

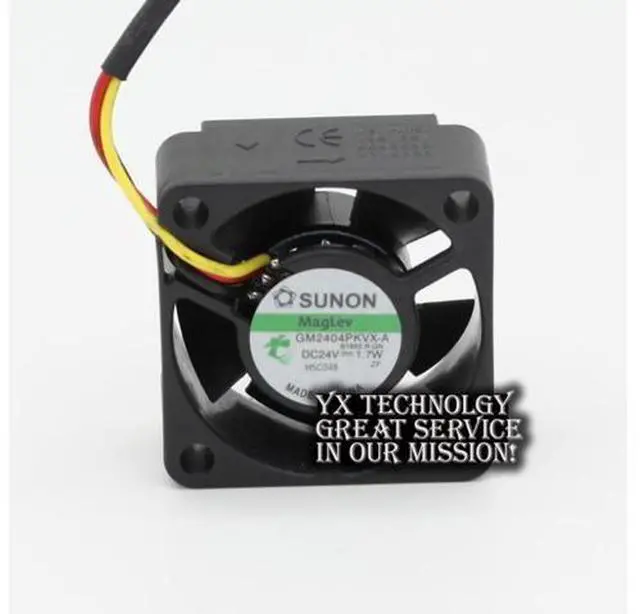

SUNON GM2404PKVX-A 24V 1.7W 4CM 4020 4cm fan drive 40*40*20mm 30pcs/lot
- [ Dimensions ]: 40 × 40 × 20mm[ Rated voltage ]: DC24V[ Voltage Range ]: DC7.0V-26.6V[ Input Power ]: 1.7W[ Rated speed ]: 8200 r.p.m[ Temperature Range ]: -10 .. 70 ° C[ Life expectancy ]: 25 ° C when the life expectancy of 50,000 hours L10[ Bearings] : Magnetic bearing HYPRO[ Rotation] : air discharged from the stent , in the face of the rotor counterclockwise rotation[ Wiring ] : + Red - Black[ Maximum amount of wind ]: 10.8CFM[ Motor Protection ] : Wrong level protection and stall protection locks flow[ Minimum pressure ]: 0 .. 40 Pa[ Noise index ]: 32.0 dB (A)[ Material Material ] : Glass fiber reinced plastic , PBT housing , PA blade[ Function Description ] : E external rotor DC fans, complete electronic commutation components
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[
Dimensions ]: 40 × 40 × 20mm[
Rated voltage ]: DC24V[
Voltage Range ]: DC 7.0V - 26.6V [
Input Power ]: 1.7W [
Rated speed ]: 8200 r. p.
m[ Temperature Range ]: -10.. 70 °
C[ Life expectancy ]: 25 ° C when the life expectancy of 50, 000 hours
L10[ Bearings]: Magnetic bearing
HYPRO[ Rotation]: air discharged from the stent, in the face of the rotor counterclockwise rotation[
Wiring ]: + Red - Black[ Maximum amount of wind ]: 10.8CFM [
Motor Protection ]: Wrong level protection and stall protection locks flow[
Minimum pressure ]: 0.. 40
Pa[ Noise index ]: 32.0 dB (A) [
Material Material ]: Glass fiber reinced plastic, PBT housing, PA blade[
Function Description ]: E external rotor DC fans, complete electronic commutation components
Dimensions ]: 40 × 40 × 20mm[
Rated voltage ]: DC24V[
Voltage Range ]: DC 7.0V - 26.6V [
Input Power ]: 1.7W [
Rated speed ]: 8200 r. p.
m[ Temperature Range ]: -10.. 70 °
C[ Life expectancy ]: 25 ° C when the life expectancy of 50, 000 hours
L10[ Bearings]: Magnetic bearing
HYPRO[ Rotation]: air discharged from the stent, in the face of the rotor counterclockwise rotation[
Wiring ]: + Red - Black[ Maximum amount of wind ]: 10.8CFM [
Motor Protection ]: Wrong level protection and stall protection locks flow[
Minimum pressure ]: 0.. 40
Pa[ Noise index ]: 32.0 dB (A) [
Material Material ]: Glass fiber reinced plastic, PBT housing, PA blade[
Function Description ]: E external rotor DC fans, complete electronic commutation components
