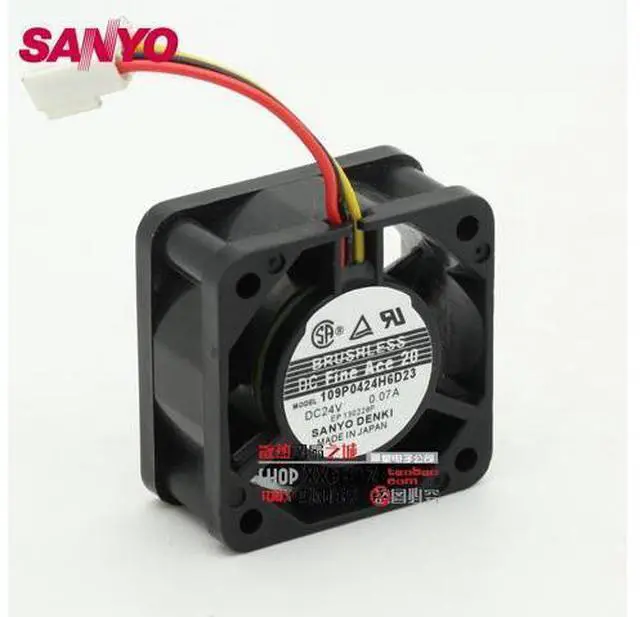

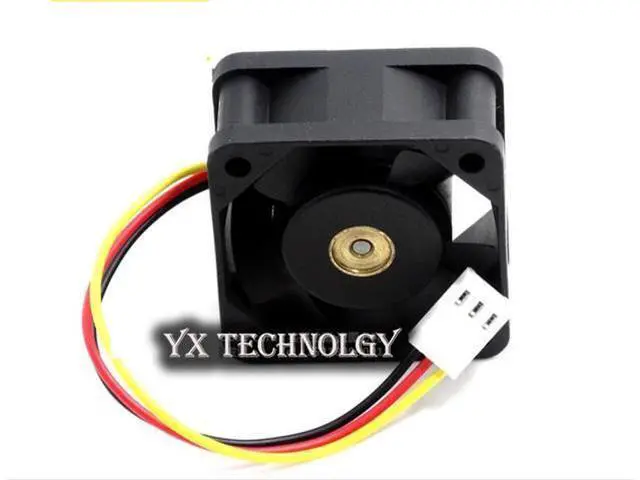

cooling fan A90L-0001-0551 # A 109P0424H6D23 fan 40mm 4cm DC24V 0.07A 40 * 40 * 20mm server axial fans drive 30pcs/lot

Model:
109P0424H6D23Size: 40

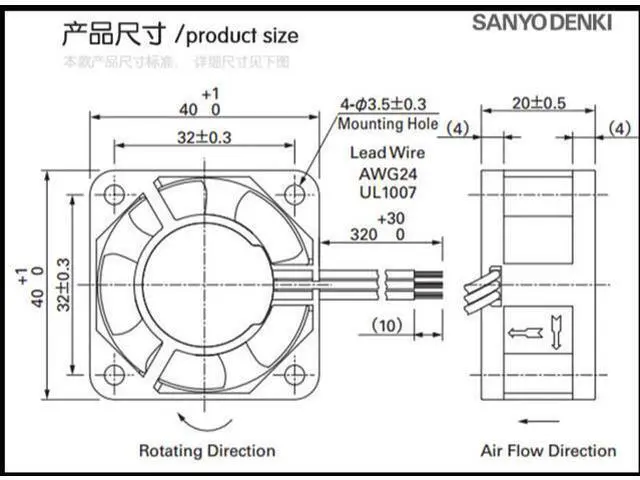

* 40 * 20mmVoltage: DC24VVoltage
range:
12V-28VCurrent: 0.07AS
peed: 7400rpmAir
volume: 26.8
cfmNoise: 16.5
dbPower: 1.68WW
orking temperature: -10
° -70 °Bearing: maintenance-
double ball bearingsLife: 25 ° expected life of 35000hUses: inverter cooling, chassis, power supply, server and other equipment cooling purposes.
The TheFeatures: overwhelming long working life, 180, 000 hours of the average time between failures; no compromise high-precision high-quality parts structure.
Life: 8.0000 hours (25 °, 45 ~ 85% relative humidity environment)Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5 mA 500V / 1 minute;
Working life: ambient temperature of 25 degrees when 80, 000 hours
