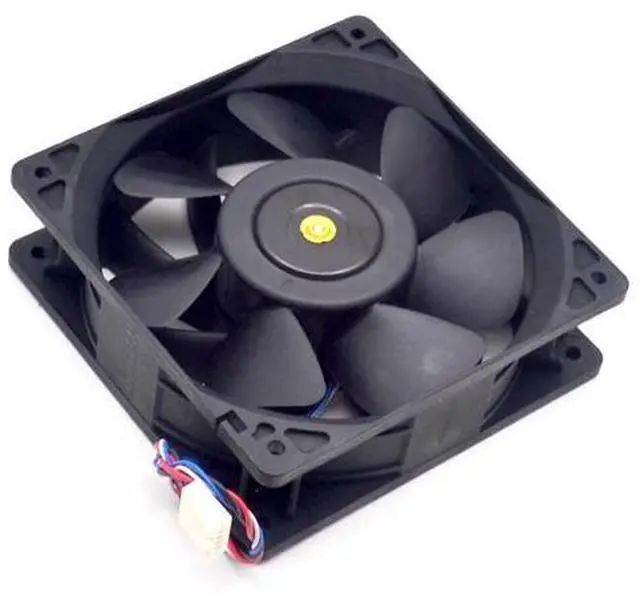

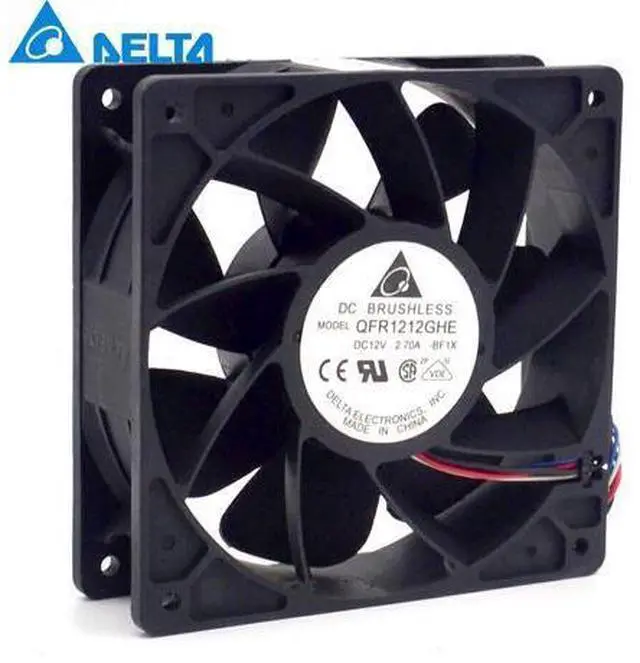

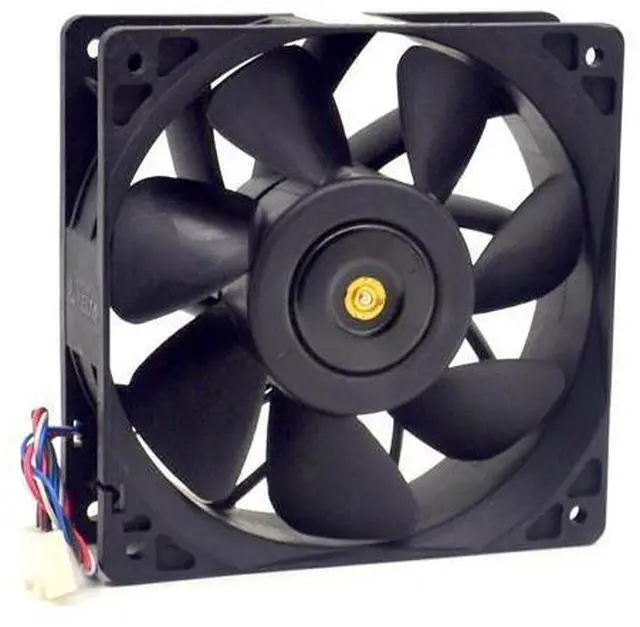

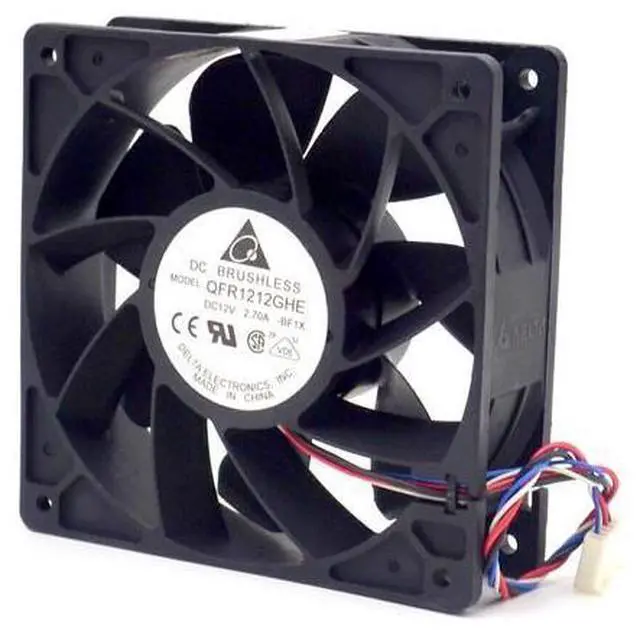

100PCS Delta QFR1212GHE 12V 2.70A 12038 12CM 6000RPM server fan cooling
Limited time offer, ends 05/22 By StarVelocity Technology
- : Delta DELTAModel: QFR1212GHE-9D89Part Number P / N:74Y5220Connector: 4-wire server double connectorSize: 120 * 120 * 38mmVoltage: DC 12VCurrent: 2.70ASpeed: 6000 RPMAir volume: 210.38CFMAir pressure: 21.60 mmH2ONoise: 64dB-ABearing: High precision double ball bearingFan frame: injection molding, PBT + 30% glass fiber + VO level flame retardantFan: injection molding, PBT + 30% glass fiber + VO level flame retardant.Fan rotation: from the fan direction as a counterclockwiseOperating temperature: -10 degrees Celsius to +70 degrees CelsiusStorage temperature: -40 degrees Celsius to +70 degrees CelsiusPower range: rated power plus or minus 15%Insulation resistance: greater than 500 megohmsWithstanding voltage: sink leakage current 0.5mA 500V / 1 minuteWorking life: the ambient temperature of 25 degrees when 80,000 hoursScope: Workstation cooling / server CPU cooling
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
: Delta DELTA
Model: QFR1212GHE-9D89Part Number P /
N:
74Y5220Connector: 4-wire
server double connectorSize: 120
* 120 * 38mmVoltage: DC
12VCurrent: 2.70AS
peed: 6000 RPM
Air volume: 210.38CFMA
ir pressure: 21.60
mmH2ONoise:
64dB-ABearing: High precision double ball bearingFan frame: injection molding, PBT + 30% glass fiber +
VO level flame retardantFan: injection molding, PBT + 30% glass fiber + VO level flame retardant.
Fan rotation: from the fan direction as a counterclockwiseOperating temperature: -10 degrees Celsius to +70 degrees
CelsiusStorage temperature: -40 degrees Celsius to +70 degrees
CelsiusPower range: rated power plus or minus 15%Insulation resistance: greater
than 500 megohmsWithstanding voltage: sink leakage current 0.5 mA 500V / 1 minuteWorking life: the ambient temperature of 25 degrees when 80, 000
hoursScope: Workstation cooling / server CPU cooling
Model: QFR1212GHE-9D89Part Number P /
N:
74Y5220Connector: 4-wire
server double connectorSize: 120
* 120 * 38mmVoltage: DC
12VCurrent: 2.70AS
peed: 6000 RPM
Air volume: 210.38CFMA
ir pressure: 21.60
mmH2ONoise:
64dB-ABearing: High precision double ball bearingFan frame: injection molding, PBT + 30% glass fiber +
VO level flame retardantFan: injection molding, PBT + 30% glass fiber + VO level flame retardant.
Fan rotation: from the fan direction as a counterclockwiseOperating temperature: -10 degrees Celsius to +70 degrees
CelsiusStorage temperature: -40 degrees Celsius to +70 degrees
CelsiusPower range: rated power plus or minus 15%Insulation resistance: greater
than 500 megohmsWithstanding voltage: sink leakage current 0.5 mA 500V / 1 minuteWorking life: the ambient temperature of 25 degrees when 80, 000
hoursScope: Workstation cooling / server CPU cooling
