Topping E30II Digital to Analog Audio Converter, HiFi USB DAC 2 x AK4493S XU208 DSD512 32Bit/768kHz USB/Optical/Coaxial to L/R RCA Analog Audio Converters
- Two AK4493S decoding chips TOPPING E30 II uses two AK4493S chips. With dual upgraded DAC chips, it achieves better SINAD, SNR, dynamic range, and noise level.

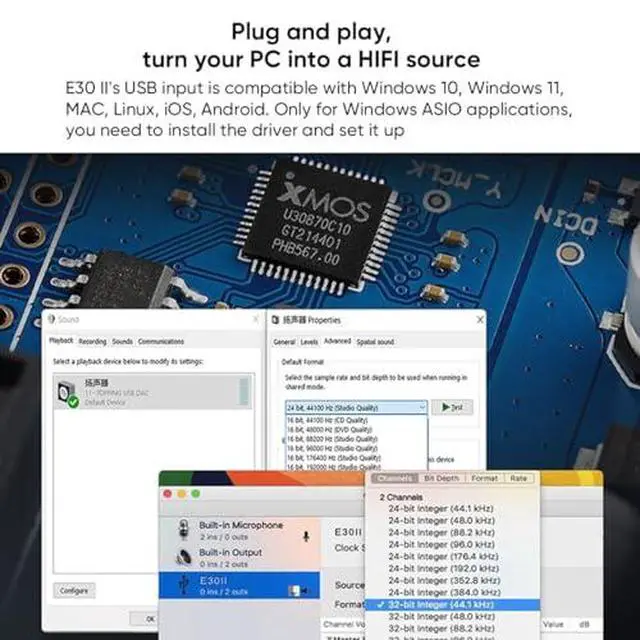

- Plug and playTurn your PC into a HIFI source just by connecting it to the E30 II with a USB cable. E30II applicable to a variety of PC systems. USB input support up to 32bit/768kHz, DSD512(Active), DSD256(Dop).
- Optical and coaxial performanceVia the optical and coaxial inputs, enjoy 24 Bit/192kHz hifi audio. Breathe new life into your digital turntables, disk players, set-top boxes, and game consoles.

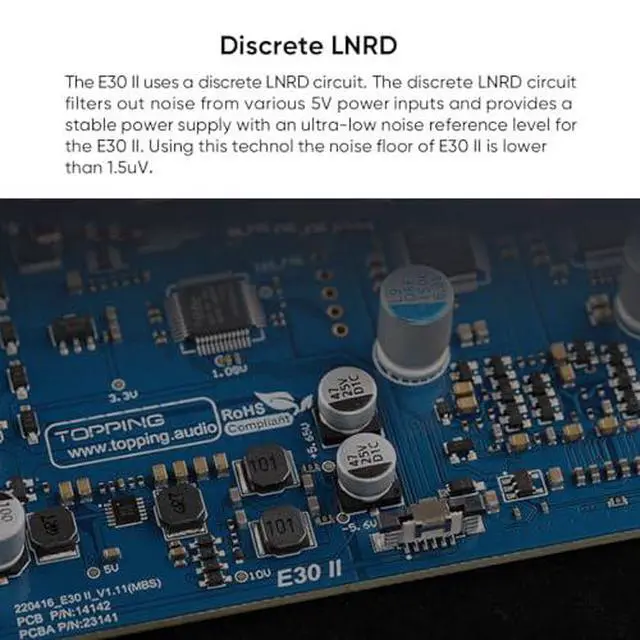

- Discrete LNRDTOPPING has implements discrete LNRD circuits in E30 II. This circuit modes out all kinds of noise input by 5V power supply, and effectively lowering the noise floor to <1.5uV.
- Pure DAC applicationIn pure DAC mode, DSD signal will bypass the DATT Soft Mute and E Modulator to provide you a pure/direct DSD performance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

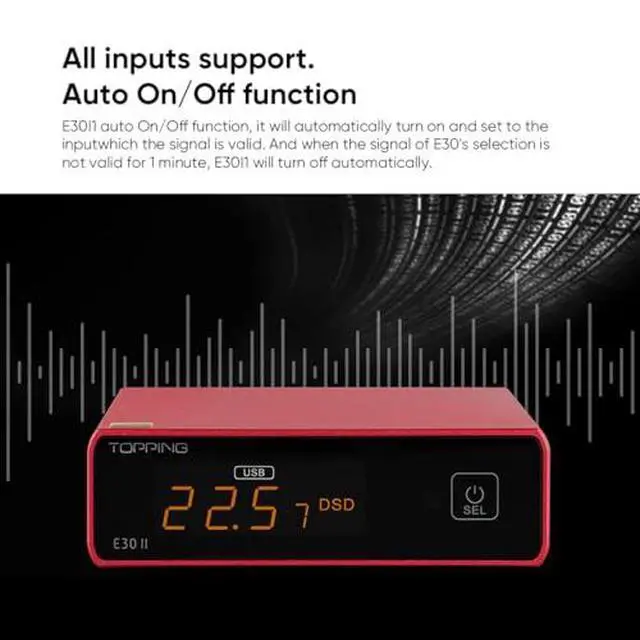

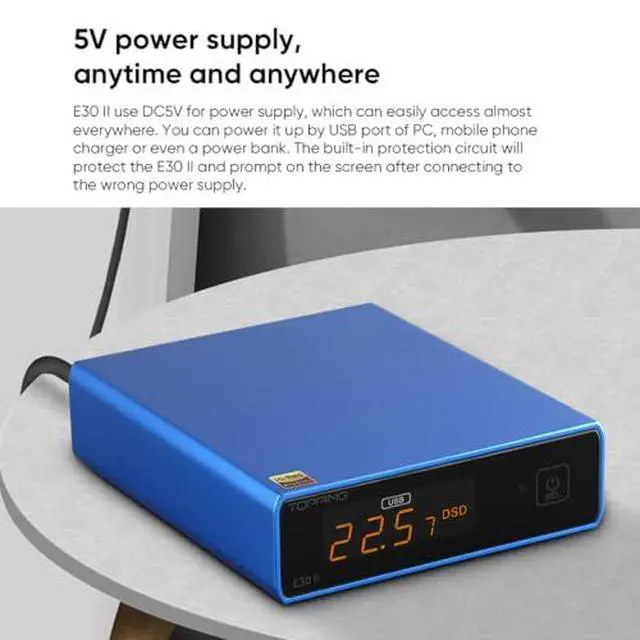

TOPPING E30 II DAC 2* AK4493 Decoding Chips USB/OPT/COAX Converter DSD512 32bit/768kHz Digital Decoder Product highlights E30 II is a high-performance DAC with USB, coaxial and optical input. E30 II is designed for full digital volume control and is equipped with LED screen. It can be used not only as a DAC, but also as a preamplifier. E30 II use 2 x AKM AK44993S DAC chips, and 6 digital mode. And it has automatic on/off function. The E30 II uses a DC5V power supply, making it one of the most portable desktop DACs.
TOPPING L30ll and E30ll have fully matched design languages and styles, L30 II suitable for almost all kinds of headphones.
Product Spec:
Color: Black/Silver/Blue/Red
Size: 10x 12.5 x32cm
Weight: 265g
USB IN PCM: 44.1 kHz-768kHz/16bit-32bit
DSD: DSD64-DSD512 (Native), DSD64-DSD256 (Dop)
Optical/Coaxial IN PCM: 44.1 kHz-192kHz/16bit-24bit E30 II DAC parameters (LineOut/USB
In@96kHz) THD+N @1kHz (A-wt): < 0.00015 %
THD @90kBw (No-wt): < 0.00060 % @20-20kHz
SNR @A-wt: 123dB @1kHz
Dynamic range @A-wt: 123dB @1kHz
Frequency Response: 20Hz-20kHz (+ 0.3 dB), 20Hz-40kHz (+ 0.8 dB)
Output Level: 2.1V rms @0dBFS
Noise @A-wt: <1. 5uVrms
Channel Crosstalk @ 1kHz: -132dB
Channel Balance: < 0.3 dB
Output Impedance: 20
Note: The above data is the result of the testing TOPPING laboratory.
Accessories: 1 x E30II 1 x DC cable 1 x USB cable 1 x User manual 1 x TOPPING card 1 x Remote control
TOPPING L30ll and E30ll have fully matched design languages and styles, L30 II suitable for almost all kinds of headphones.
Product Spec:
Color: Black/Silver/Blue/Red
Size: 10x 12.5 x32cm
Weight: 265g
USB IN PCM: 44.1 kHz-768kHz/16bit-32bit
DSD: DSD64-DSD512 (Native), DSD64-DSD256 (Dop)
Optical/Coaxial IN PCM: 44.1 kHz-192kHz/16bit-24bit E30 II DAC parameters (LineOut/USB
In@96kHz) THD+N @1kHz (A-wt): < 0.00015 %
THD @90kBw (No-wt): < 0.00060 % @20-20kHz
SNR @A-wt: 123dB @1kHz
Dynamic range @A-wt: 123dB @1kHz
Frequency Response: 20Hz-20kHz (+ 0.3 dB), 20Hz-40kHz (+ 0.8 dB)
Output Level: 2.1V rms @0dBFS
Noise @A-wt: <1. 5uVrms
Channel Crosstalk @ 1kHz: -132dB
Channel Balance: < 0.3 dB
Output Impedance: 20
Note: The above data is the result of the testing TOPPING laboratory.
Accessories: 1 x E30II 1 x DC cable 1 x USB cable 1 x User manual 1 x TOPPING card 1 x Remote control
