Topping Centaurus Full Balanced R2R DAC - USB/Bluetooth/Optic/Coaxial/AES/IIS to RCA/XLR Digital-Analog Audio Converter, DSD512 PCM768kHz Desktop Decoder Preamp Support 12V Trigger/PEQ (Black)
Limited time offer, ends 07/05 By StarVelocity Technology

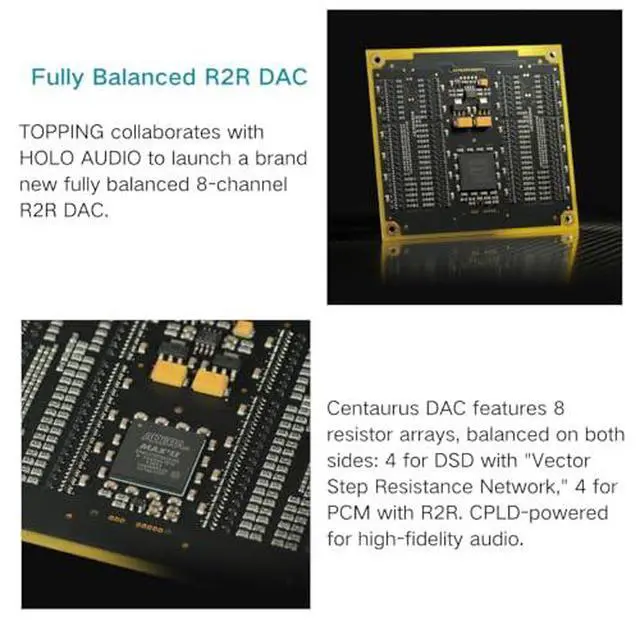

- TOPPING Centaurus - HIFI R2R DAC, has 8 resistor arrays on its circuit board. Front ones for DSD DAC use "Vector Step Resistance Network", and back ones for PCM DAC adopt R2R structure. Its CPLD-powered decoding unit ensures great sound fidelity and reproduction.
- Centaurus R2R DAC has three modes switching feature. OS Mode applies oversampling to boost audio performance with adjustable rates. NOS Mode skips it for an authentic listening experience. Best Mode auto-selects the optimal rate, striking a balance between performance and sound quality.
- The Centaurus DAC offers ten bands PEQ adjustment. Its brand new PEQ algorithm and desktop software enable customizing frequency, gain and bandwidth of each band. Supports curve import, compensation and can save multiple profiles for convenient switching.

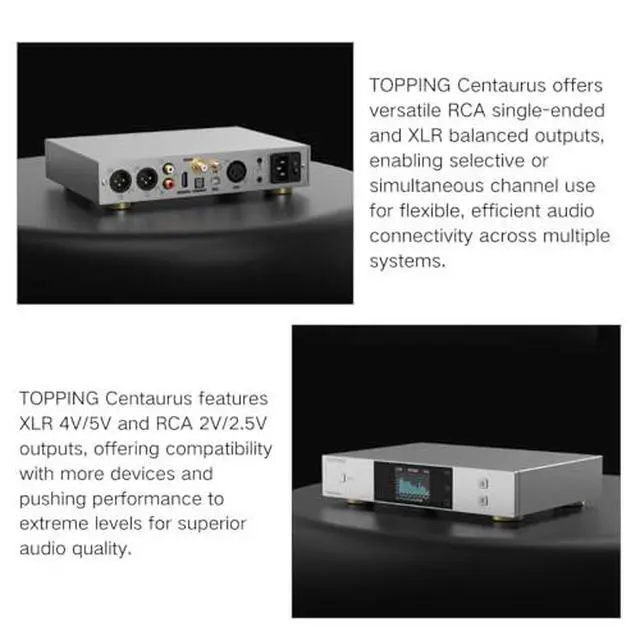

- TOPPING Centaurus R2R DAC features USB/Optic/Coaxial/AES/IIS inputs and RCA/XLR outputs, making it fully balanced DAC. And offers versatile connectivity options, allowing users to interface
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

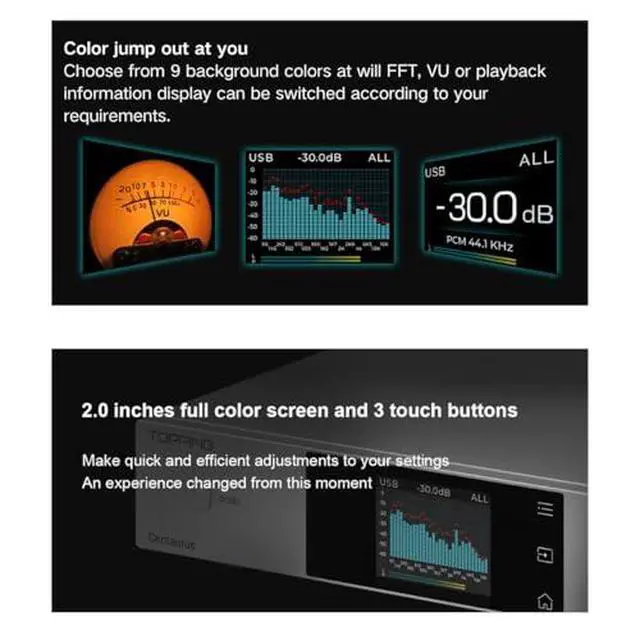

TOPPING Centaurus R2R DAC Full Balanced DSD512 PCM768kHz HiFi Audio Preamp DAC Product highlights Boasting a fully balanced 8-channel R2R design Three distinct sampling modes (NOS, OS, Best) for tailored sonic bliss. The intuitive Aurora UI lets you personalize your experience. With 10-band high-precision PEQ adjustment IIS input welcomes ultra-high-spec signals, while RCA/XLR outputs with adjustable voltage levels adapt to any setup Preamp mode and DAC mode selectable 12V Trigger enables seamless power synchronization Centaurus DAC parameters (LineOut/USB In@96kHz) THD+N (A-wt)
RCA: < 0.00005 % @1kHz
XLR: < 0.00005 % @1kHz THD+N@No-wt (90kBw)
RCA: < 0.0005 % @20Hz-20kHz
XLR: < 0.0005 % @20Hz-20kHz
SNR (A-wt) RCA: 126dB @1kHz
XLR: 130dB @1kHz
Dynamic Range (A-wt) RCA: 126dB @1kHz
XLR: 130dB @1kHz
Frequency Response RCA: 20Hz-20kHz (± 0.6 dB), 20Hz-40kHz (± 2.2 dB)
XLR: 20Hz-20kHz (± 0.6 dB), 20Hz-40kHz (± 2.2 dB)
Output Level RCA: 2.1V rms @0dBFS (4V Mode), 2.6V rms @0dBFS (5V
Mode) XLR: 4.2V rms @0dBFS (4V Mode), 5.2V rms @0dBF S (5V Mode) Noise (A-wt)
RCA: < 1.2 uVrms
XLR: < 1.4 uVrms
Channel Crosstalk RCA: - 121dB @ 1kHz
XLR: -130dB @1kHz
Channel Balance RCA: 0.3 dB
XLR: 0.3 dB
Output Impedance RCA: 50
XLR: 100
Accessories: 1* DAC 1* Remote control 1* USB cable 1* AC cable 1* Product Information Card
RCA: < 0.00005 % @1kHz
XLR: < 0.00005 % @1kHz THD+N@No-wt (90kBw)
RCA: < 0.0005 % @20Hz-20kHz
XLR: < 0.0005 % @20Hz-20kHz
SNR (A-wt) RCA: 126dB @1kHz
XLR: 130dB @1kHz
Dynamic Range (A-wt) RCA: 126dB @1kHz
XLR: 130dB @1kHz
Frequency Response RCA: 20Hz-20kHz (± 0.6 dB), 20Hz-40kHz (± 2.2 dB)
XLR: 20Hz-20kHz (± 0.6 dB), 20Hz-40kHz (± 2.2 dB)
Output Level RCA: 2.1V rms @0dBFS (4V Mode), 2.6V rms @0dBFS (5V
Mode) XLR: 4.2V rms @0dBFS (4V Mode), 5.2V rms @0dBF S (5V Mode) Noise (A-wt)
RCA: < 1.2 uVrms
XLR: < 1.4 uVrms
Channel Crosstalk RCA: - 121dB @ 1kHz
XLR: -130dB @1kHz
Channel Balance RCA: 0.3 dB
XLR: 0.3 dB
Output Impedance RCA: 50
XLR: 100
Accessories: 1* DAC 1* Remote control 1* USB cable 1* AC cable 1* Product Information Card
