Musician Draco III R2R DAC HiFi Audio Decoder, USB/I2S/AES/Coaxial/Optical Input, Balanced XLR Unbalanced RCA Output, Supports DSD1024 PCM 32Bit 1536kHz, Audiophile Digital-to-Analog Converter (Black)

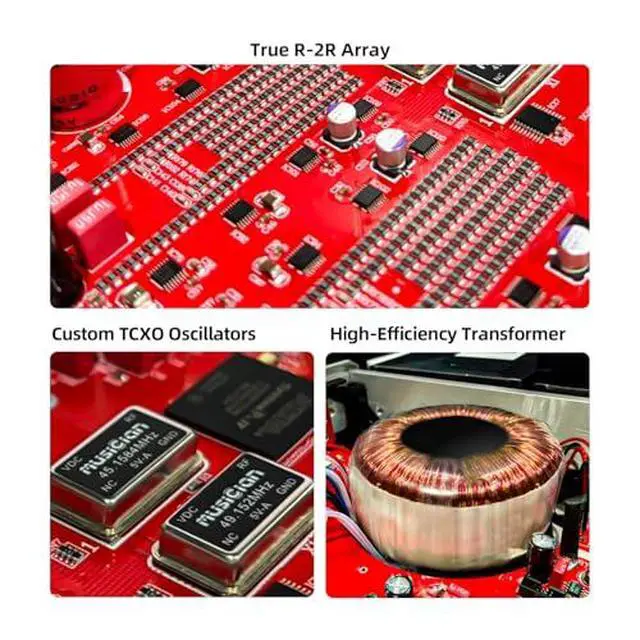

- 3rd Gen Ultimate Sound & True Balanced R2R Architecture: The Draco III represents a generational leap, featuring a custom high-precision third-generation TCXO oscillator array and a refined R2R ladder network. Delivering ultra-low distortion (THD+N as low as 0.0016%), an exceptional signal-to-noise ratio of 126dB, and a dynamic range exceeding 120dB, it ensures every nuance of your music is reproduced with absolute transparency and depth

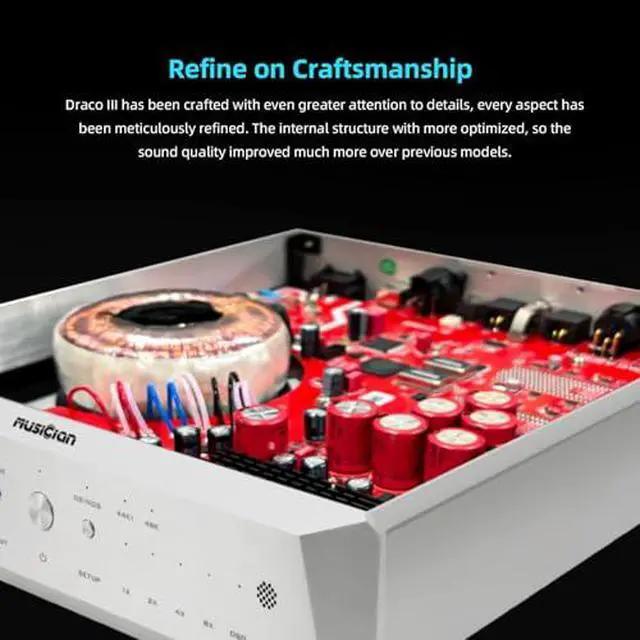

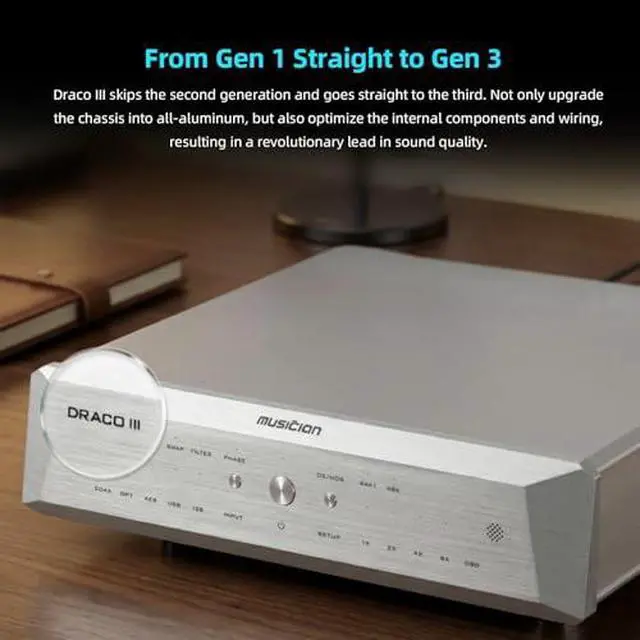

- Premium All-Aluminum Build & Enhanced Craftsmanship: Completely redesigned with a premium all-aluminum chassis (top, sides, base, and back panel) and optimized internal wiring. The meticulous craftsmanship eliminates resonance and electromagnetic interference, while the robust 80W toroidal transformer ensures a pure, stable power supply, unlocking the full sonic potential of the R2R decoding architecture.

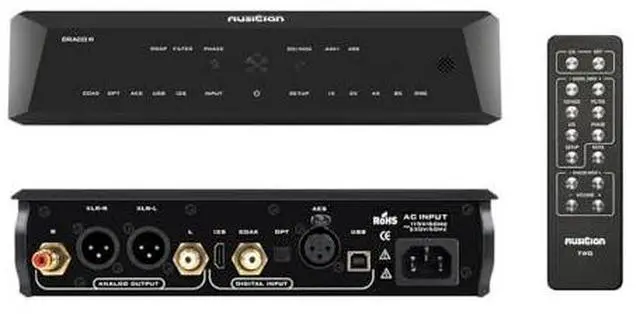

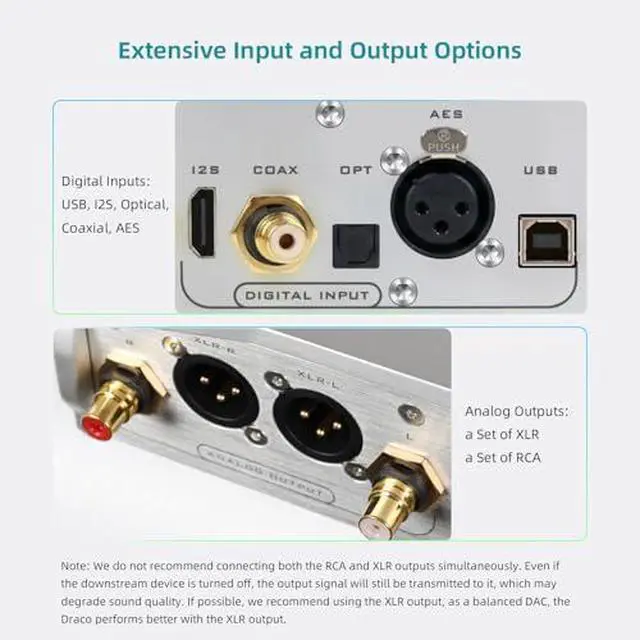

- Comprehensive Connectivity & Flexible Control: Equipped with 5 versatile digital inputs: USB-B, I2S, Coaxial , Optical, and AES/EBU. It offers 2 pr
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Musician Draco III R2R DAC
Product Model: DRACO III
Analog output level:
RCA: 2.0V
rmsXLR: 4Vrms
Analog output impedance:
RCA:
625XLR: 1250
Frequency response: 20Hz-75kHz(+1/-3dB)

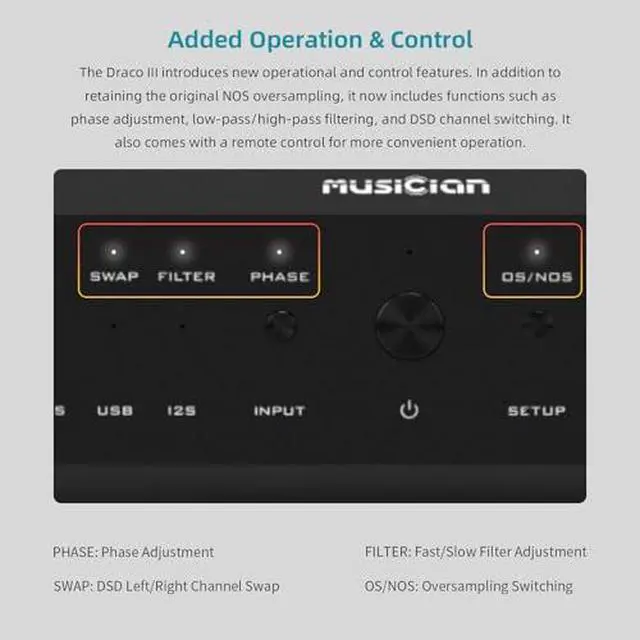

Distortion: <0.002%(A-weighted) Signal-to-noise ratio: 120dB(A-weighted) Dynamic range: 121dB Stereo crosstalk: 110dB AC Power Requirements: 115V/60Hz230V/50Hz(Automatic voltage switching) Total power consumption: 20W Sampling mode: Original bitrate(NOS)/Oversampling(OS) Digital Audio Input: Coaxial/Optical/USB/AES/I2S DSD:
1. All inputs support DSD64-DoP; 2. USB and I2S inputs support
DSD1024 PCM:
1. All inputs support 24-bit/192 kHz; 2. USB and I2S inputs support 1536 kHz
Volume: 270 x 245x 70 mm
Weight: 4.05 kg (5 kg including packaging)
Product Model: DRACO III
Analog output level:
RCA: 2.0V
rmsXLR: 4Vrms
Analog output impedance:
RCA:
625XLR: 1250
Frequency response: 20Hz-75kHz(+1/-3dB)
Distortion: <0.002%(A-weighted) Signal-to-noise ratio: 120dB(A-weighted) Dynamic range: 121dB Stereo crosstalk: 110dB AC Power Requirements: 115V/60Hz230V/50Hz(Automatic voltage switching) Total power consumption: 20W Sampling mode: Original bitrate(NOS)/Oversampling(OS) Digital Audio Input: Coaxial/Optical/USB/AES/I2S DSD:
1. All inputs support DSD64-DoP; 2. USB and I2S inputs support
DSD1024 PCM:
1. All inputs support 24-bit/192 kHz; 2. USB and I2S inputs support 1536 kHz
Volume: 270 x 245x 70 mm
Weight: 4.05 kg (5 kg including packaging)
