Vantrue 11.5ft USB-C Hardwire Kit (12V24V to 5V) with Acc Functionality, Low Voltage Protection, Compatible with All Vantrue USB-C Dashcams
- Input 1224V, Output 5V/2AThe Hardwire Kit provides a direct connection from your dash cam to the vehicle's fuse box (cars, trucks, buses, SUVs, etc.) for uninterrupted power supply. Designed for compatibility with 1224V automotive systems, this kit ensures a reliable 5V/2A output.

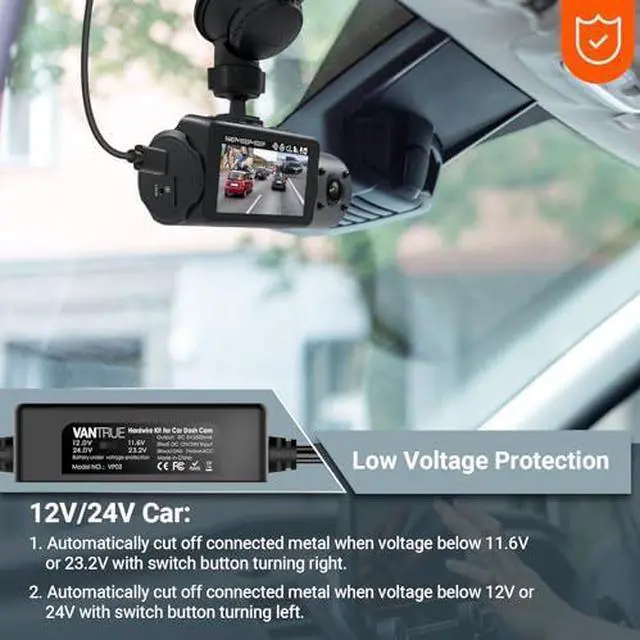

- Low Voltage Protection FeatureInstall the Harwire Kit as instructed. This unit features dual-stage undervoltage protection thresholds: 12V/11.6V for 12V vehicles and 24V/23.2V for 24V vehicles. When system voltage drops to these preset levels, the Hardwire Kit automatically disconnects power to prevent deep discharge of the vehicle battery, eliminating risks of critical battery depletion.
- 24/7 Parking SurveillanceHardwired directly to the battery for uninterrupted 24/7 power, this system prevents theft while your vehicle is parked.
- Built-in ACC FunctionalityThe Harwire Kit has ACC functionality. If the dash cam is in parking mode when the vehicle stops and the engine shuts off, dash cam
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description 24/7 Parking Surveillance Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot. Directly to the ignition wire for power only so it can turn on and off with the ignition. Compatible 12 24V Vehicles This hardwire kit accepts voltage from any type of vehicles runs on 12 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power. Low Voltage Protection Smart low voltage protection automatically shut off the power to your dash cam when the battery voltage drops to 11.6V (12V cars) or 23.2V (24V cars), thus preventing it draining the battery.

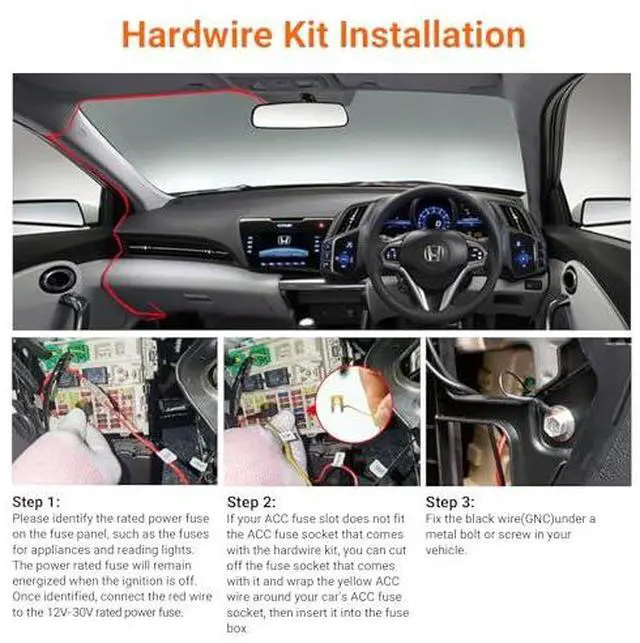

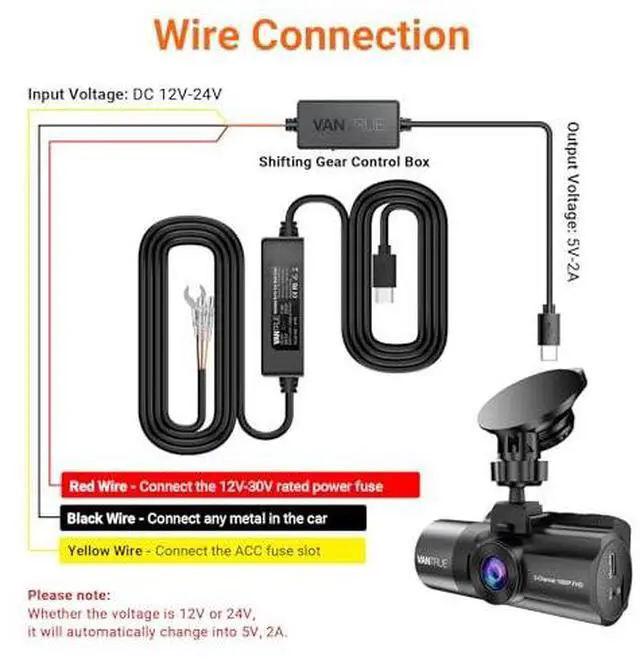

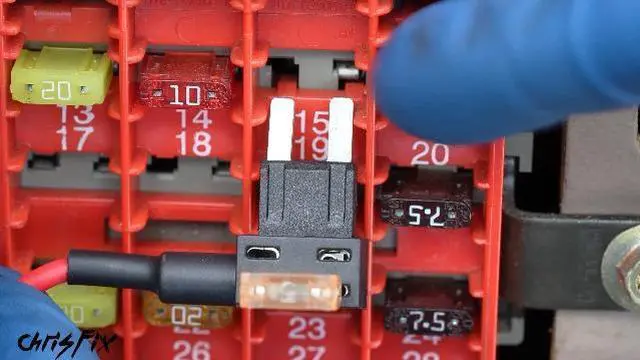

Find the Correct Fuse Slot Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on. Connect the Red Wire and Yellow Wire Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse.
Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation. And the Yellow should be connect to the ACC. Ground the Hardwiring Kit Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with.
To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards. Key Features Compatible with 12-24Vdc for car or truck installations. Perfect for 24/7 Parking Surveillance. Low voltage protection protects against battery dying. Work well with Vantrue N5, N4, N4 Pro dash cam and all other type c usb dash cams! Keep 12V or 24V outlet free, charge your phone at the same time. Less static when youre listening to the radio. Less Complicated Install with the installation video.

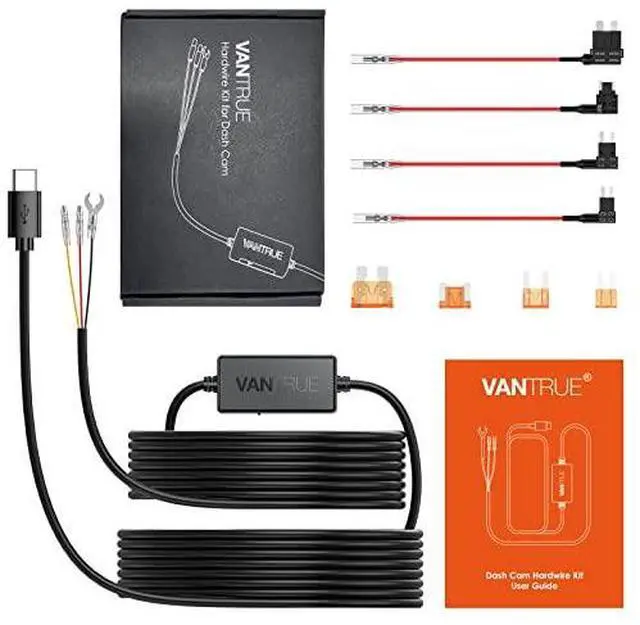

Whats in the box? Vantrue 11.5 ft Type C USB Dash Cam Hardwire Kit with User Manual Mini/LP ACN Add-A-Circuit Fuse Holder Mini ACS Add-A-Circuit Fuse Holder ATO ACU Add-A-Circuit Fuse Holder Micro2 Add-A-Circuit Fuse Holder Technical
USB Connector Input Voltage: DC 12V-24V
Output Voltage: 5V
Output Current: 2A
Working Temperature: -22°F to 167°F (-30°C to 75°C)
Cable Length: 11.5 ft Low
Voltage Protection: 11.6V for 12V vehicle; 23.2V for 24V vehicle. How to install the dash cam hardwire kit? Connect the red wire to the add-a-circuit fuse holder and install it into the appropriate fuse slot in your vehicle's fuse box for constant power. Connect the yellow wire to the ACC wire in your vehicle's wiring harness for ignition power. Ground the black wire by attaching it under a metal bolt or screw in your vehicle. Is it compatible with all type C dash cams? Yes, the hardwire kit is compatible with all Type C dash cams and works well with Vantrue N5, N4, N4 Pro dash cams and all other Type C dash cams. Does it have low voltage protection function? Yes, the hardwire kit is designed with a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery voltage drops to 11.6V for 12V vehicles or 23.2V for 24V vehicles, thus preventing it from draining the battery. Does it affect radio performance? It did not interfere with their radio reception. N4 Pro S 4K 3CH Dash Cam N5S 4CH Dash Cam New N4S 3CH Dashcam N2X Uber Dash Cam E1 Pro 4K Dash Cam Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 1, 171 4.2 out of 5 stars 629 4.6 out of 5 stars 148 4.4 out of 5 stars 1, 163 4.3 out of
Find the Correct Fuse Slot Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on. Connect the Red Wire and Yellow Wire Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse.
Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation. And the Yellow should be connect to the ACC. Ground the Hardwiring Kit Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with.
To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards. Key Features Compatible with 12-24Vdc for car or truck installations. Perfect for 24/7 Parking Surveillance. Low voltage protection protects against battery dying. Work well with Vantrue N5, N4, N4 Pro dash cam and all other type c usb dash cams! Keep 12V or 24V outlet free, charge your phone at the same time. Less static when youre listening to the radio. Less Complicated Install with the installation video.
Whats in the box? Vantrue 11.5 ft Type C USB Dash Cam Hardwire Kit with User Manual Mini/LP ACN Add-A-Circuit Fuse Holder Mini ACS Add-A-Circuit Fuse Holder ATO ACU Add-A-Circuit Fuse Holder Micro2 Add-A-Circuit Fuse Holder Technical
Details
Connector: Type CUSB Connector Input Voltage: DC 12V-24V
Output Voltage: 5V
Output Current: 2A
Working Temperature: -22°F to 167°F (-30°C to 75°C)
Cable Length: 11.5 ft Low
Voltage Protection: 11.6V for 12V vehicle; 23.2V for 24V vehicle. How to install the dash cam hardwire kit? Connect the red wire to the add-a-circuit fuse holder and install it into the appropriate fuse slot in your vehicle's fuse box for constant power. Connect the yellow wire to the ACC wire in your vehicle's wiring harness for ignition power. Ground the black wire by attaching it under a metal bolt or screw in your vehicle. Is it compatible with all type C dash cams? Yes, the hardwire kit is compatible with all Type C dash cams and works well with Vantrue N5, N4, N4 Pro dash cams and all other Type C dash cams. Does it have low voltage protection function? Yes, the hardwire kit is designed with a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery voltage drops to 11.6V for 12V vehicles or 23.2V for 24V vehicles, thus preventing it from draining the battery. Does it affect radio performance? It did not interfere with their radio reception. N4 Pro S 4K 3CH Dash Cam N5S 4CH Dash Cam New N4S 3CH Dashcam N2X Uber Dash Cam E1 Pro 4K Dash Cam Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 1, 171 4.2 out of 5 stars 629 4.6 out of 5 stars 148 4.4 out of 5 stars 1, 163 4.3 out of
