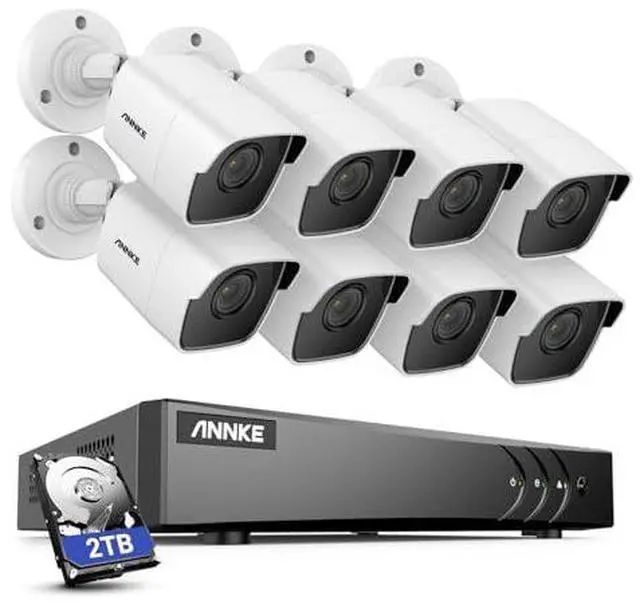

DVR Specification: 5MP high definition live viewing 5MP Lite recording & playback Advanced H. 265+ Video Compression Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1 Supports iPhoneiPadAndroid mobile remote monitoring
Video Compression: H. 264+/H. 264/H. 265/H.
265+ Video Input: 8CH Analog HD/Analog + 2CH IP camera
Video Output: HDMI and VGA up to 1080p
Audio Input/Output: 1/1 RCA Supported
Camera Types: "Support
HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVBS Input" IPC Recording/Playback Resolution: Up to 6MP Max.
Playback Channel: 2-CH
HDD: 1 SATA
Interface HDD Capacity: Up to 6 TB
Capacity USB: USB 2.0
X2 Operating Power: DC 12 V
Camera Specification: 5MP HD TVI bullet Security Camera HD analog output, up to 5 MP resolution Clear day and night vision with auto IR-cut Up to 100ft night vision with Smart IR IP67 Dust and Waterproof
Rating Image sensor: 5MP CMOS
Image sensor Video Resolution: 2560 (H) × 1944 (V)
Signal System: PAL/NTSC
Frame Rate:
"PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps"
Lens: 2.8 mm Angle of
View: 85.5 ° Number of
Infra-Red LEDs: 2
Night Vision Distance: Up to 100ft/30m
DNR: 2D DNR Wide
Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD
BNC×1 Housing: Plastic
Color: White
Operating Power: DC12V
Weatherproof Rating: IP67
