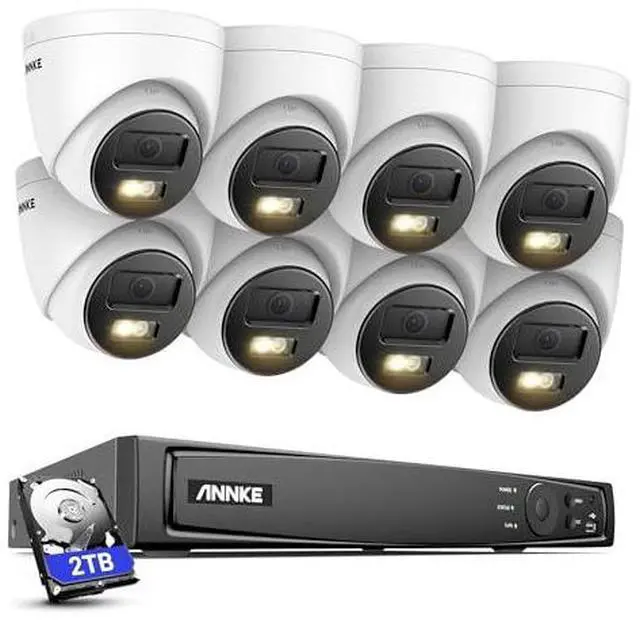

NVR Specification: Live view, recording&playback up to 12 MP resolution Up to 16 channel IP cameras can be connected with built-in PoE inputs Connectable to the third-party network cameras HDMI Video output at up to 4K (3840 × 2160) resolution 2 SATA interfaces connectable for recording and backup Support 4-ch Human and vehicle targets detection
Video Compression: H. 264+/H. 264/H. 265/H.
265+ Video Output: HDMI up to 4K, VGA up to 1080p
Deep learning: 16-ch Human and vehicle targets detection (Need IP camera support) 4-ch Human and vehicle targets detection (IP camera does not need to support this function but the resolution cannot exceed 4MP)
Smart Event: "Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Need IP camera support) "
Camera Specification: 12MP smart dual light turret network camera 2.8 mm lens brings everything back to life Efficient H. 265+ compression technology Motion detection 2.0 with human & Vehicle Detection Clear day and night vision with 3D DNR and 120 DB WDR Built-in microphone for real-time audio security Support on-board storage up to 512 GB (SD card slot) IP67 Dust and Waterproof Rating Support PoE &DC 12V
Image Sensor: 1/ 2.7"
Progressive Scan CMOS Max resolution: 4096*3072 (12MP)
Audio Input: Built-in Microphone, record with audio
Lens: 2.8 mm Angle of
View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° Supplement
Light Type: Smart Dual-Light, IR, White
Light Supplement Light Range: Up to 30m
Motion detection 2.0: Support, include Human &
Vehicle detection Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
