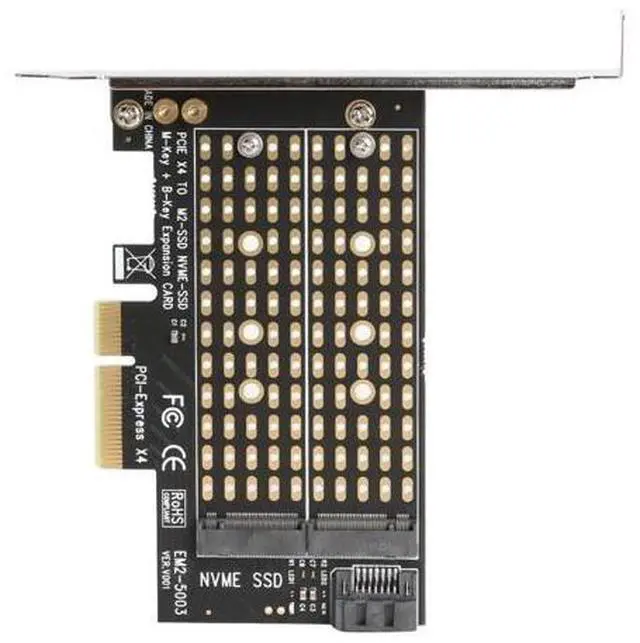

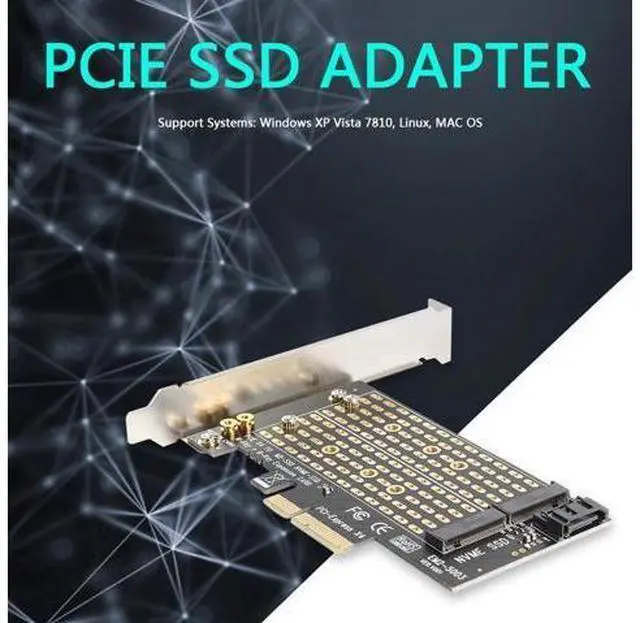

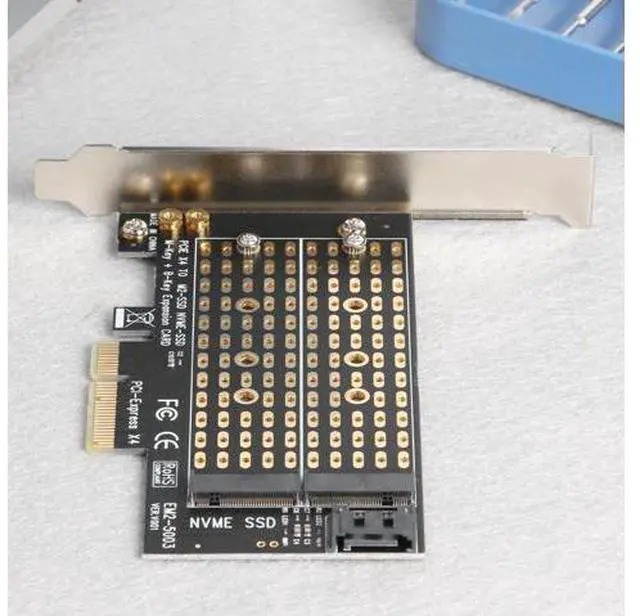

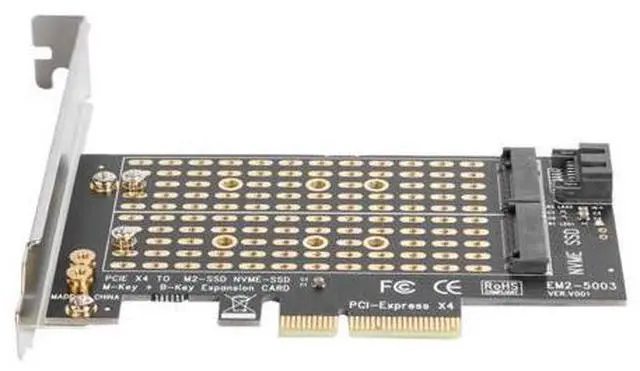

NVME to PCIE Adapter M+B Key NGFF SSD to PCI-E 3.0 X4 SATA for Expansion Card Household Computer Accessories

NVME to PCIE Adapter Module Board M+B Key NGFF SSD to PCI-E 3.0 X4 SATA
Expansion Card Feature: M key NGFF SSD to PCI-E X4 adapter or B key NGFF SSD to SATA adapter. The speed and other properties is not changed, only change the interface type and without any software or drivers.
Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm NGFF SSD. MACth with two kinds of
Metal sheet (length: 8cm, 12cm) Compatible with any operating system ( On the premise of operating system must be compatible with your hard disk ). With cooling holes to speed up air circulation.
Specification:
Type: PCIE to M2
Adapter Internal Interface: M Key + B Key Dual
Ports Support Slots: PCI-E 3.0 X4 GEN3 (Compatible with X4 X8 X16 slot)
Support Devices: PCI-E specification NVMe and SATA specification NGFF disk
Support System: for Windows XP/Vista/7/8/10, Linux, MAC OS.
Product Size: 120 X 104 X 18mm/ 4.72 X 4.09 X 0.71"
Package Weight: 88g About NGFF
SSD Interface Standard: Socket 2 (B key 2
LANE): there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode. Socket 3(M key, 4
LANE): PCI-E 4X (such as MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

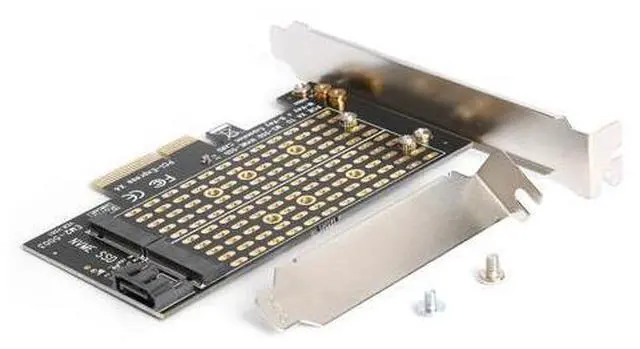

2. Please allow 1-3mm measuring deviation due to manual measurement. 1 X NVME to PCIE Adapter 1 X Baffle 2 X Screws
