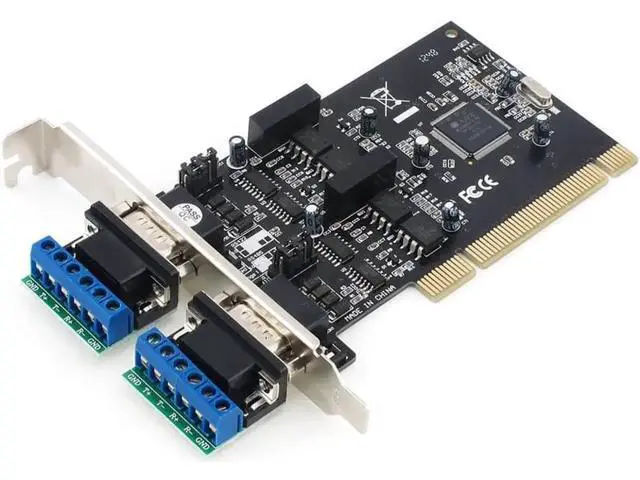

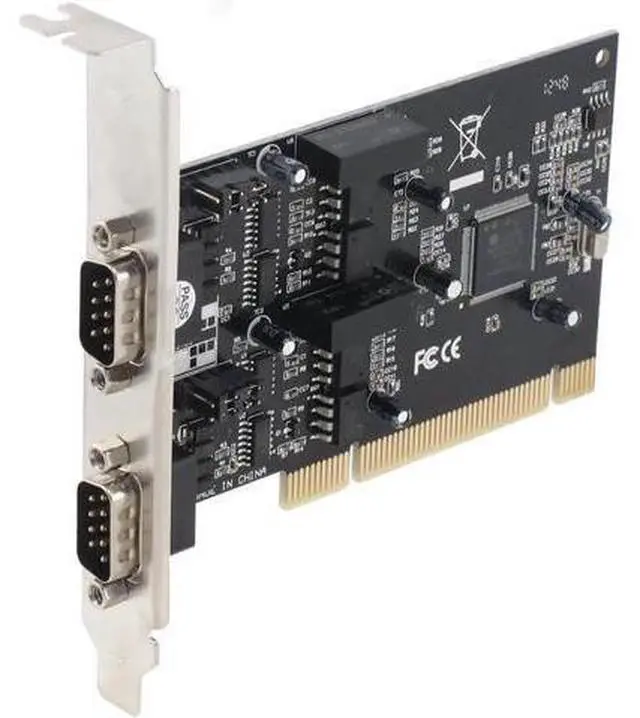

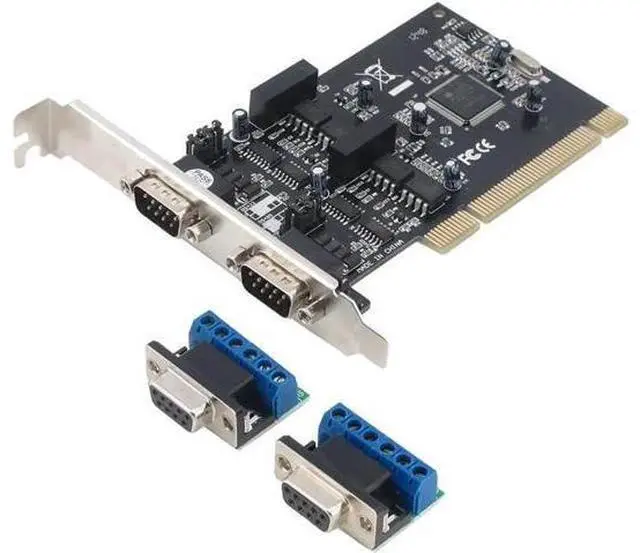

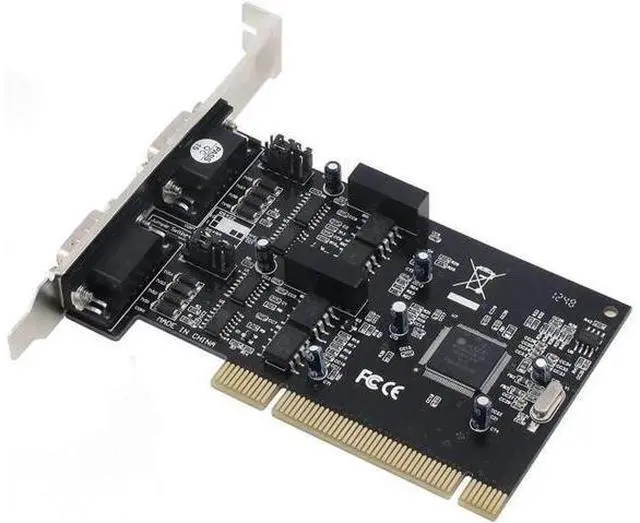

PCI 2 PORT RS-422/485 Adapter Card

Features: Hardware
Interface Connector: DB9 male 2 2 x DB9 to 6 Pin screw terminal module included
Signal:
RS-422: T/R+? T/R-? RXD+? RXD-?
GND RS-485: Data+ (A) Data- (B)
GND Optical Isolation Protection: Isolation Voltage 2500Vrms 500VDC Continuous DC/DC Module
Interface Protection: 400W Surge Protection each line for RS-422andRS-485 interface ESD
Protection Transmission:
distance: 1-1200meters (9600bps)

Specifications

: Fully compliant with PCI Local Bus Specification, Revision 2.3 2 x 16C 450 / 550 / Extended 550 compatible UAR Ts Bi-directional Speeds from 300-115200bps Supports Hardware, Software flow control 5, 6, 7, 8, 9-bit Serial format support Even, Odd, None, Space & Mark parity supported On Chip deep 256 Byte FIF Os in Transmit & Receive paths of each Serial Port
Support OS: Windows 7/Vista/XP 32/64-bit, Win 98 32 bit Linux kernel 3. x/ 2.6. x Windows CE 5.0 / 6.0
Applications: Industrial control Serial Attached Devices Serial Networking / Monitoring Equipment Data Acquisition System POS Terminal & Industrial PC
Package Content: 1 x PCI RS482/485 adapter 1 x Driver CD 2 x DB9 to 6 Pin Screw terminal module
