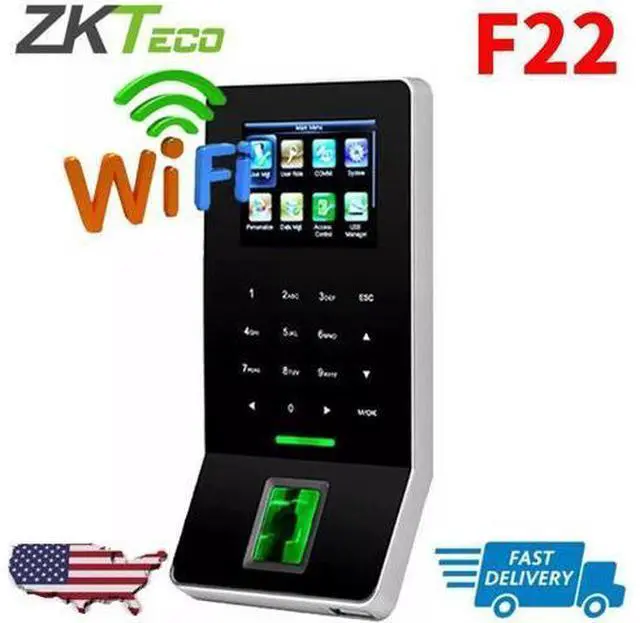

ZK F22 WIFI TCP/IP RFID Card Time Clock Attendance System Biometric Fingerprint

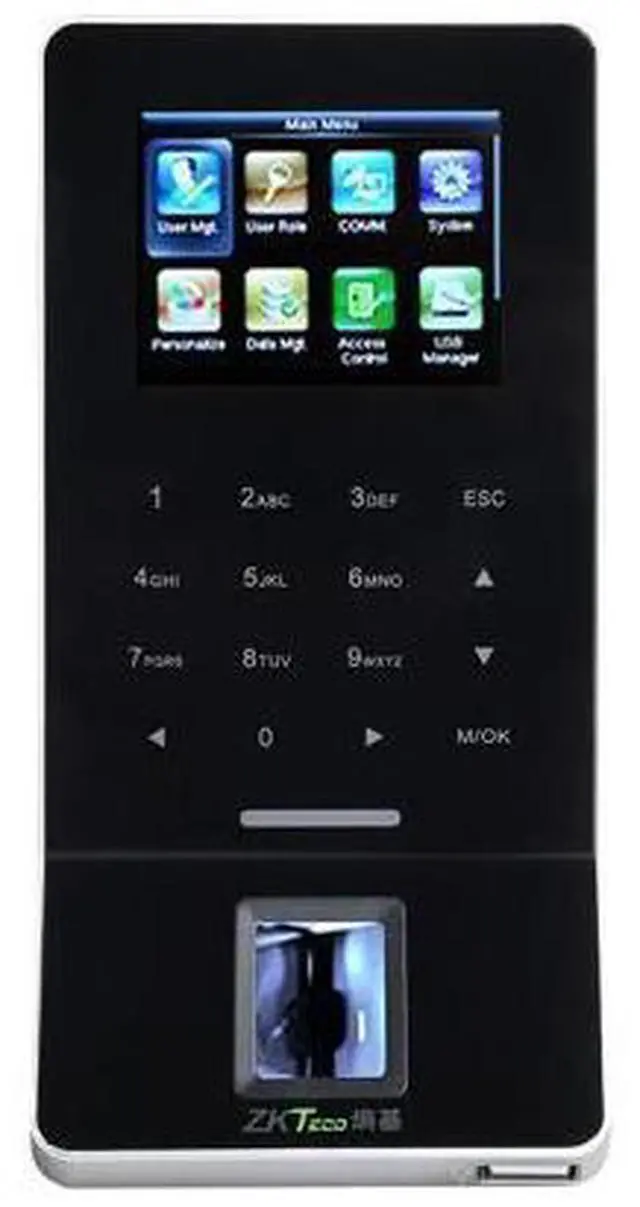

Description F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial- based fingerprint matching algorithm and high-performance, high-image quality infrared detection fingerprint sensor. F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Features: 2.4 -inch TFT color screen and Touch keys Ultra thin and elegant design Full Access
Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm Standard Wi-Fi Network interface by TCP/IP or RS485 Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Specifications

: Model F22 Display 2.4 -inch TFT LCD Color Screen Fingerprint sensor Optical Sensor Algorithm Version Finger V 10.0 Fingerprint Capacity 3, 000 Card Capacity 5, 000 Log Capacity 50, 000 RF Card Optional ID Authentication Method FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF Access Control Interface Electric lock, Door sensor, Alarm, Exit button Communication WIFI, TCP/IP, RS232/485, USB-host Wiegand Signal Wiegand input&output Functions DST, Automatic status switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, ADMS (Optional) Power Supply 12VDC 3A Operating Temperature 0~ 45 Dimensions (W×H×D) 158.5 mm×78mm× 19.4 mm
