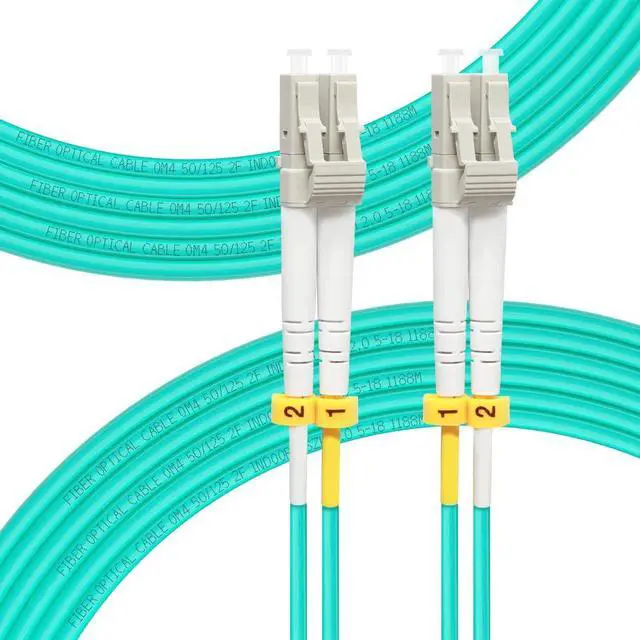

8M OM4 LC to LC Fiber Patch Cable, Length Options: 0.2m-100m, Duplex 50/125um Multimode Fiber Optic Cables LSZH 40GB/100GB - 8M(26ft), 4pack

This 8M (26ft) OM4 LC-LC 4-pack Multimode Fiber Optic Patch Cable is engineered for high-density applications in gigabit Ethernet, fiber channel, local area networks, data centers, premise installation, wide area networks, and commercial environments. It is perfect for connecting 40G BIDI SR, 10G SR, QSFP+, and SFP+ transceivers for 10G/40G/100G Ethernet connections and serves as the favored fiber specification for 40G/100G applications. Maximum Transmission Distance: - 1Gb Ethernet: 550 meters at 850nm - 10Gb Ethernet: 300 meters at 850nm - 40Gb Ethernet: 300 meters at 850nm - 100Gb Ethernet: 200 meters at 850nm Bandwidth is 2000 MHz·km @850nm. It features a 7.5mm minimum bend radius. The high-rated 50/125um fiber and cladding are resistant to bending, simple to peel and weld, ensuring minimal optical loss and stable transmission (insertion loss 0.3dB, return loss 30dB). This makes it suitable for SAN network cabinets that require 20 or more bends or for high-density installations where cables are packed into an extremely small footprint. Construction Design: - LSZH environmentally friendly jacket. - Adjustable connector clips permit individual fiber access. - Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 enable quick identification of Tx and Rx during installation, testing, and troubleshooting. - UPC polish and Japan-made zirconia ceramic ferrules deliver high return loss, low insertion loss, and low attenuation, offering precise alignment to maintain signal integrity. Each cable is factory-tested to satisfy quality control and insertion loss requirements
